Core V1, 2x USB 3.0, SPCC, Black

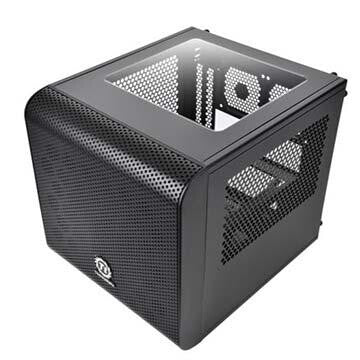

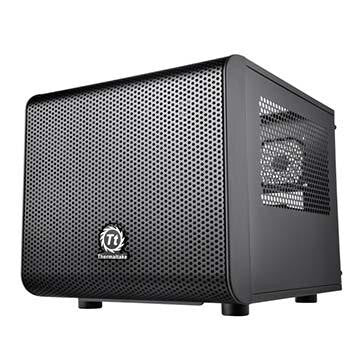

The new Core V1 represented by Thermaltake is a small and cute ITX based chassis with a 200mm fan in the front panel. Smart interchangeable side panels allow users to flip it accordingly to showcase either for superior liquid cooling or superb airflow, which allows you to make your own personal setup. You not only grant to have a really powerful mini system, it also has the ability to house various overclocking components to keep it really cool!

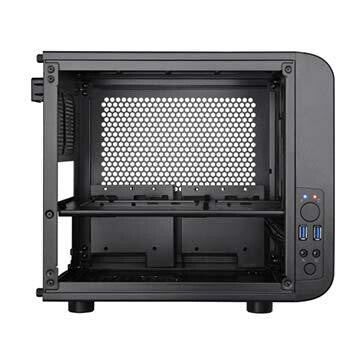

Chambers Concept
Core V1 has divided into two main chambers: the upper chamber is made for cooling performance and efficiency, and the lower chamber is made for PSU and cable management. With the aid of the removable 2.5”/3.5” drive device racks, users can enjoy to the freedom of gain the maximum interior space for advance cooling performance or liquid system build.

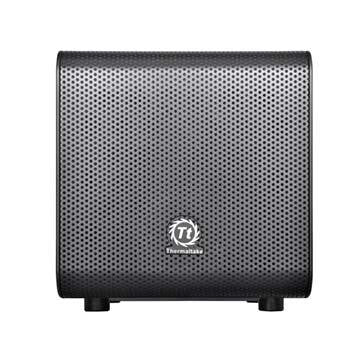

Advanced Ventilation
With a promising cooling ability, Core V1 has various mounting points to supports all types of cooling systems that includes DIY/AIO liquid cooling systems and air cooling units. A large 200mm fan is preinstalled in the front, along with two optional 80mm turbo fans at the rear, guarantee to hold up any type of gaming system.

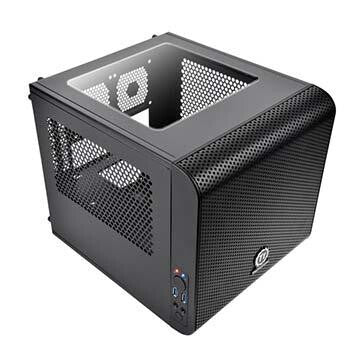

Interchangeable Side Panel
Symmetrical panels allow users to build the system with personality. Play around the panels accordingly for either the best viewing presentation or cooling performance. A removable PSU dust filter and adjustable shockproof rubbers is built with the bottom panel of the chassis to prolong the PSU usage.

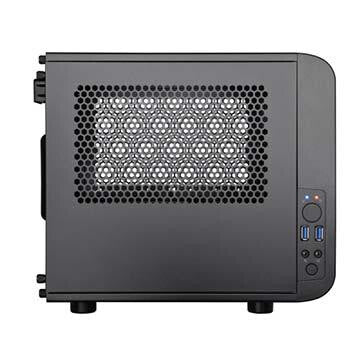

Handy I/O Ports
Design with convenience and cleanness in mind, Core V1 has built in dual USB 3.0 and HD audio connectors together with the Power and Reset Button on the side of front panel, which not only keep the panel clean and simple, it also grants a direct and easy access for external devices.
Great Expansion in Compact Size
Core V1 is designed with high-end gaming system compatibility, gamers can easily install up to 4 data storage devices with the modular drive racks, a dual expansion slot VGA with the length up to 260mm, a tower CPU cooler with height up to 140mm, together with a high wattage PSU of length up to 180mm, and still offers a 80mm cable management space.
| Design |
|---|
| Form factor |
Cube |
| Type |
PC |
| Material |
SPCC |
| Product colour |
Black |
| Supported motherboard form factors |
Mini-ITX |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of expansion slots |
2 |
| Side window |
Yes |
| Built-in speaker(s) |
No |
| Reset button |
Yes |
| LED indicators |
HDD, Power |
| Maximum CPU cooler height |
14 cm |
| Maximum PSU length |
20 cm |
| Power supply |
|---|
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| Cooling |
|---|
| Number of front fans supported (max) |
1 |
| Front fans diameters supported |
120,140,200 mm |
| Number of rear fans supported (max) |
2 |
| Rear fans diameters supported |
80 mm |
| Liquid cooling capability |
Yes |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Width |
260 mm |
| Depth |
316 mm |
| Height |
276 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
