300Mbps, PCI-E 2.0 1x, WiFi, 2x2.2dBi
What It Does

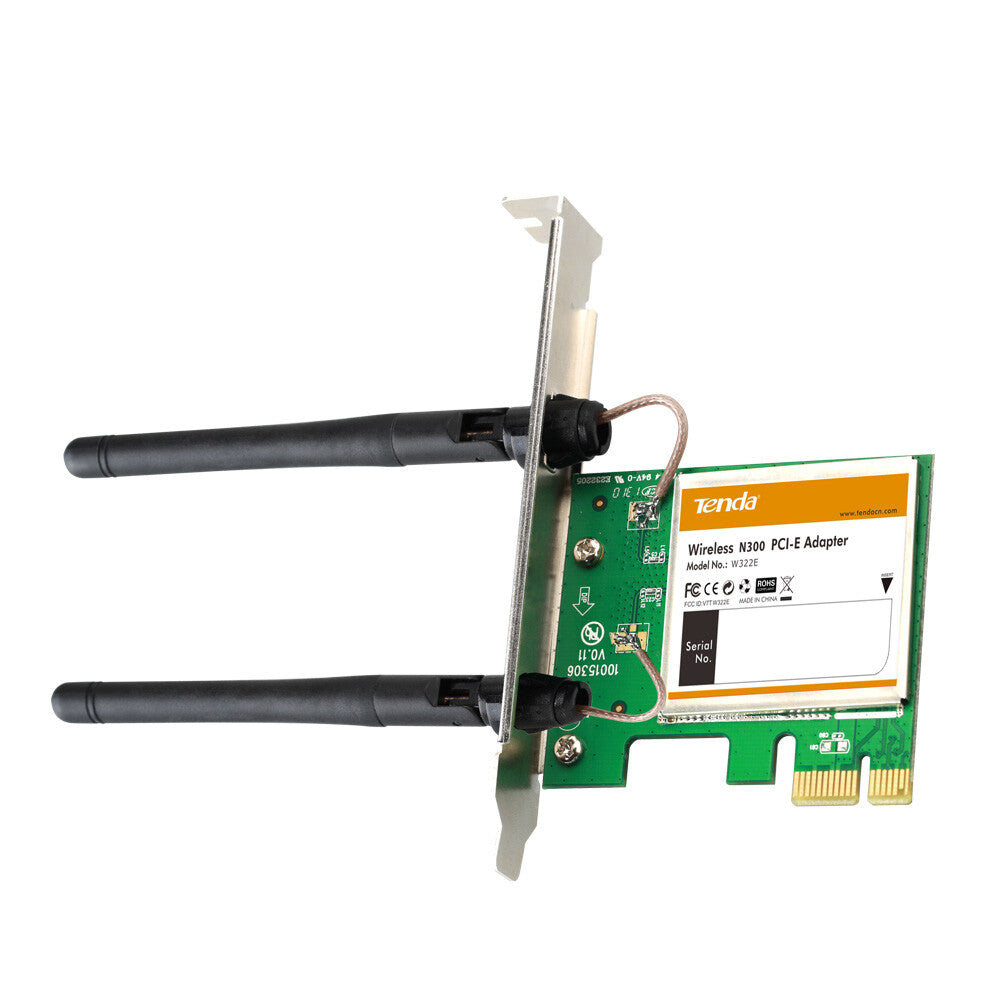

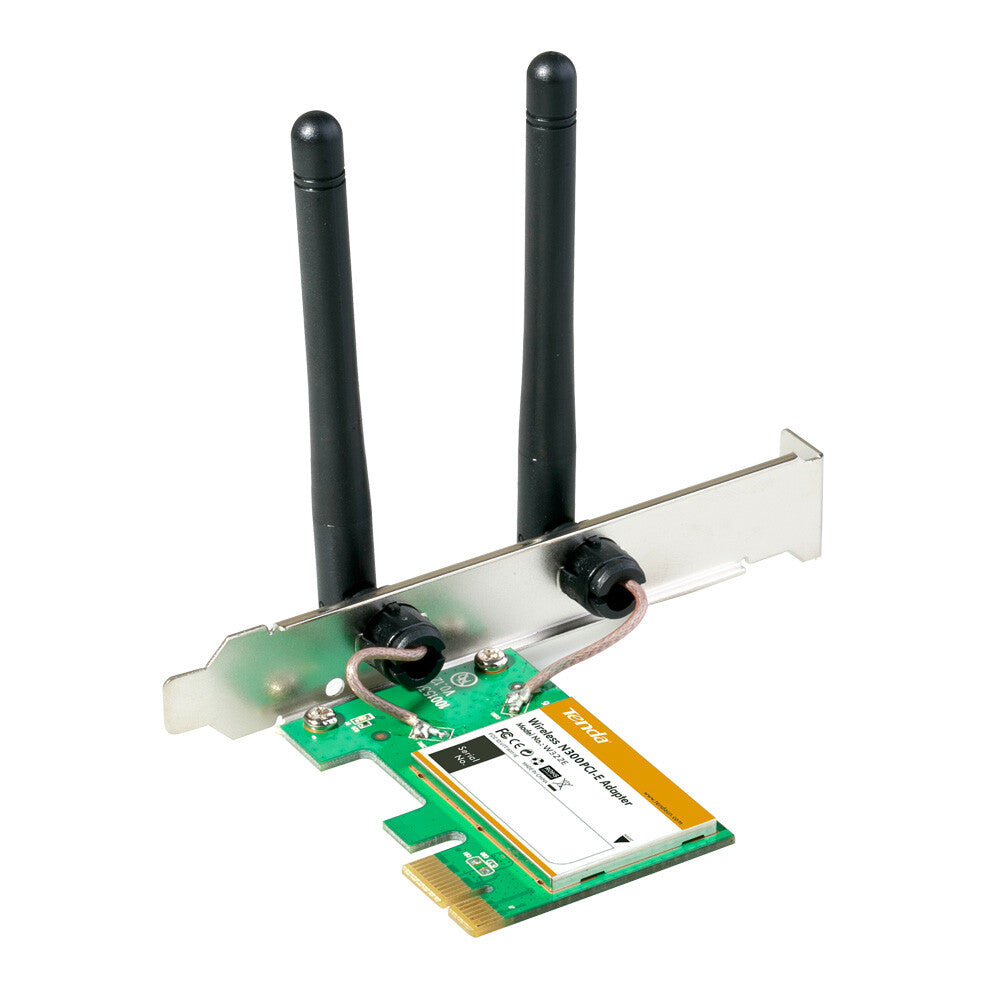

The Tenda Wireless N300 PCI Express Adapter W322E delivers high-performance wireless network connectivity to your desktop PC. It is powered by Wireless-N technology and uses two high gain external antennas to provide superior wireless reception in your home or office. Connect to your home or office network and transfer files, share photos, access to music or movie wirelessly at speeds 6 times faster than original Wireless G devices. Also, it fits into any standard PCI Express slots- x1, x4, x16, or x16. This adapter This adapter is designed for use in larger homes and offices, or for users running bandwidth-intensive applications.
Main Features:
- Wireless-N Speed up to 300Mbps, 6 times faster than original 11g;
- 2x2.2dBi external antennas provide better signal reception;
- Supports WPA/WPA2 security encryptions;
- Supports WiFi Protected Setup (WPS);
- Fits into any standard PCI Express slots – x1, x4, x8, x16 or x32;
- Compatible with Windows 8/7.
More Bandwidth
Provides up to 500MB/s bandwidth transfer rate，3 times faster than original PCI adapter.
Faster Wireless Speed
Wireless-N technology delivers speeds of up to 300Mbps，6 times faster than original Wireless G device.
High Compatibility
Adopts PCI Express 2.0 1x interface, pefectly fits into any standard PCI Express slot x2、x4、x8、x16 or x32.
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Host interface |
PCI Express |
| Interface |
WLAN |
| PCI version |
2.0 |
| Network |
|---|
| Maximum data transfer rate |
300 Mbit/s |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported |
11,54,150,300 Mbit/s |
| Security algorithms |
WPA, WPA2 |
| Design |
|---|
| Internal |
Yes |
| Component for |
PC |
| Product colour |
Black, Green |
| Antenna |
Yes |
| LED indicators |
Yes |
| Certification |
CE, FCC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
33.5 mm |
| Depth |
120.8 mm |
| Height |
78.5 mm |
| Packaging data |
|---|
| Package width |
40 mm |
| Package depth |
230 mm |
| Package height |
50 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Gain |
2.2 dBi |
| Quick start guide |
Yes |
| Transmit power range |
18 - 18 dBmW |
| Quantity per pack |
1 pc(s) |
