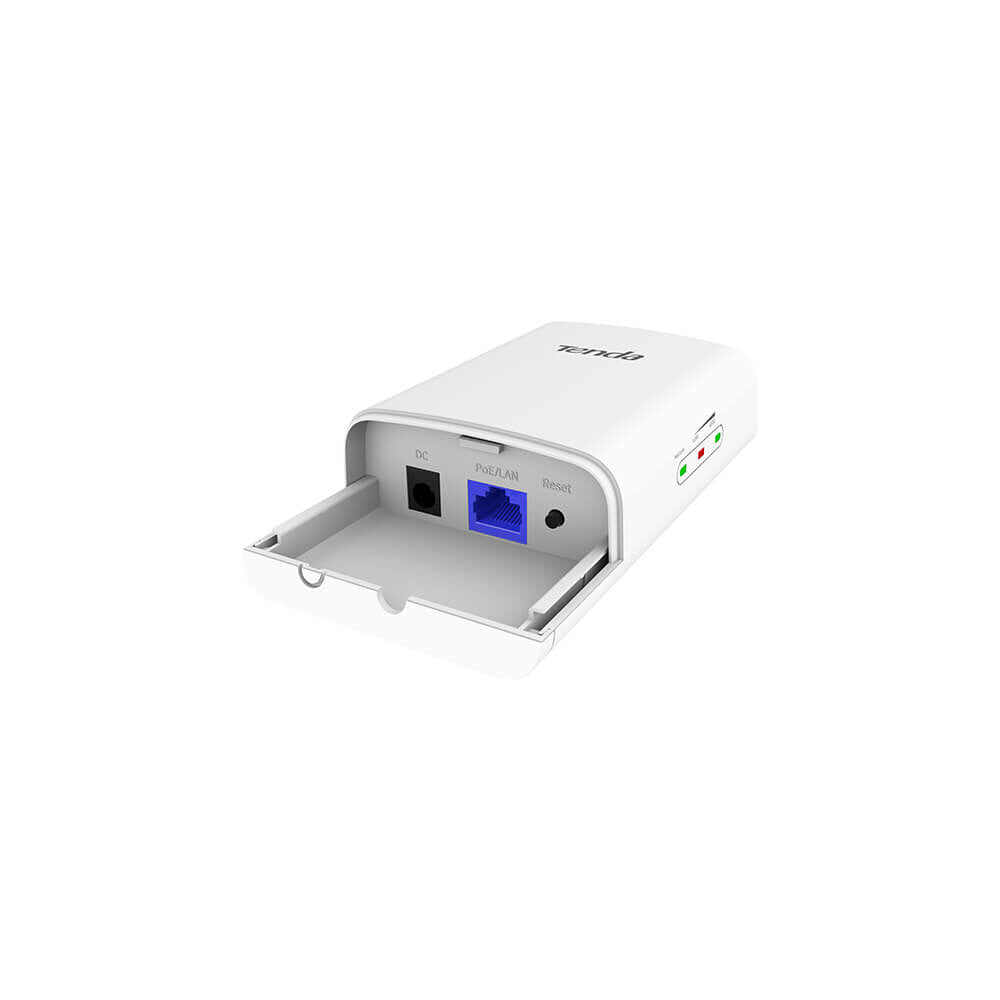

5GHz 9dBi 11AC 867Mbps Outdoor CPE
O1-5G 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 9dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.
1+km transmission range
O1-5G adopts of internal power amplifier and 9dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 1km.
Flexible power supply method enable it easy to deployment
O1-5G supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely.
Auto-bridge technology enable it to easy setup
O1-5G supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.
Easy to Setup and Manage
O1-5G comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.
Professional Outdoor Design
Equipped with IP65 waterproof enclouse and high quality hardware design, O1-5G can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
| Features |
|---|
| 2.4 GHz |
No |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
867 Mbit/s |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Channel bandwidth |
80 MHz |
| Wireless isolation |
Yes |
| Maximum outdoor range |
1000 m |
| Receiver sensitivity |
11a 6Mbps -92dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm |
| Security |
|---|
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Management features |
|---|
| Syslog |
Yes |
| Firmware upgradeable |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
12 V |
| Input current |
1 A |
| Power consumption (typical) |
4.7 W |
| Design |
|---|
| Placement |
Pole, Wall |
| Product colour |
White |
| International Protection (IP) code |
IP67 |
| Reset button |
Yes |
| LED indicators |
LAN, PoE |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna gain level (max) |
9 dBi |
| Weight & dimensions |
|---|
| Width |
72 mm |
| Depth |
46.3 mm |
| Height |
132 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
10 - 90% |
