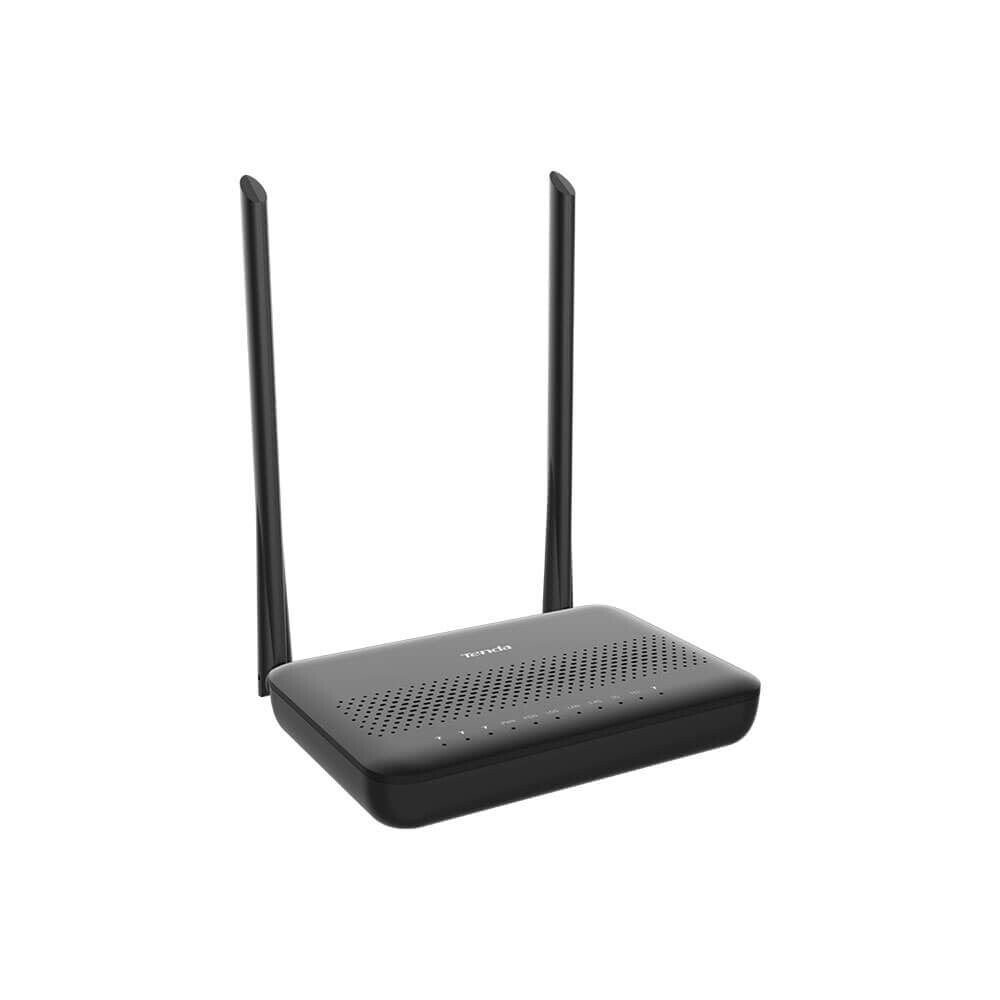

AC1200 Dualband Wi-Fi xPON ONT
HG7 is an intelligent routing passive optical network terminal in Tenda FTTH solution, EPON and GPON network environment supported. It provides 2 gigabit LAN ports, a voice port to meet users’requirements for enjoying the Internet, HD IPTV and VoIP multi-service applications.HG7 compliants with 802.11ac standard, supports up to 1176Mbps Wi-Fi high speed linking. With 2 5dBi high gain external antennas and 2.4G & 5G dualband high power Wi-Fi, it can provide superior Wi-Fi coverage and high quanlity wireless connection. It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI,OAM and TR069 remote maintenance features.
Auto-adaption for both EPON and GPON Network
HG7 supports both EPON and GPON network, and it can do auto-adaption when link the fiber cable, ISP Technical support need not to set manually . Our customer can make better choice to fulfill different ISP requirements.
Dualband Wi-Fi for high speed wireless experience
With the new generation 802.11ac wave 2.0 standard.HG7 offers a concurrent dualband data rate as high as 1167Mbps. Signal boosting & Beamforming+ technology enrich your wireless experience.
High gain antenna & powerful RF for better signal coverage
5 dBi antenna and high to 23 dBm strong RF power , with leading accordion wire design, HG7 balances the signal field and gain, providing you stronger Wi-Fi signals. Ensure the good wireless performance for wide signal coverage.
Supports VoIP and variety fast data services
With the TEL port users can enjoy convenient voice service ,then 2 Gigabit Ethernet ports, users can enjoy high-speed xPON services and bandwidth-intensive multimedia applications such as interactive gaming, IPTV and HD video streaming much easier and faster than ever before.
High compatible to worldwide OLTs
Compliant with ITU-T G.984 and IEEE 802.3ah standard, HG7 has extensive compatibility with lots of OLT brands worldwide ,like Huawei, ZTE, Fiberhome, Nokia Bell,Tenda and so on.
Easier Management and Maintenance
HG7 can provide efficient operation and maintenance, such as remote business modification, remote upgrade, remote restart, remote fault diagnosis and so on, making the remote control easy and quick.
| Design |
|---|
| Product type |
Optical network terminal (ONT) |
| Product colour |
Black |
| LED indicators |
LAN, Power |
| Certification |
CE, FCC , RoHS，Anatel |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.2, IEEE 802.3u, IEEE 802.3z |
| ITU standards |
G.984.1, G.984.2, G.984.3, G.984.4 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Upstream data rate |
1250 Mbit/s |
| Downstream data rate |
2500 Mbit/s |
| Transmission distance (max) |
20 km |
| Tx wavelength (max) |
1310 nm |
| Rx wavelength (max) |
1490 nm |
| Tx power (min) |
0.5 dBmW |
| Tx power (max) |
5 dBmW |
| IGMP snooping |
Yes |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type |
External |
| Antennas quantity |
2 |
| Antenna gain level (max) |
5 dBi |
| Multiple SSIDs |
Yes |
| Management features |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| Reset button |
Yes |
| Security |
|---|
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering |
Yes |
| Ports & interfaces |
|---|
| Fiber ports quantity |
1 |
| Fiber optic connector |
SC/APC |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Output voltage |
12 V |
| Output current |
1 A |
| Power consumption (max) |
12 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
163 mm |
| Depth |
115 mm |
| Height |
28 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Yes |
