Quad core 717 MHz, 256 MB DDR3, 2x2 MIMO (2.4 GHz / 5 GHz), LAN, WAN, USB 3.0, 154 mm x 199 mm x 65 mm

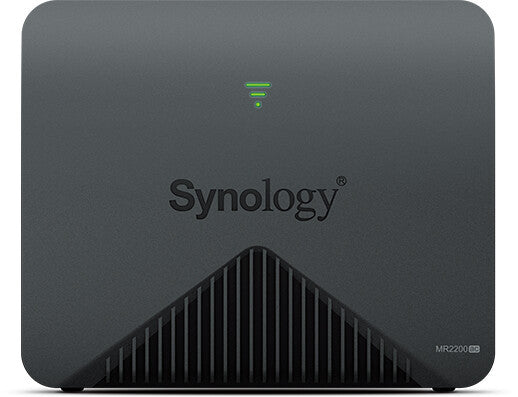

Synology Mesh Router MR2200ac
Coming with intelligent mesh Wi-Fi capability and best-in-class parental controls, MR2200ac is designed to keep all devices connected and everyone safe. Experience the award-winning Synology Router Manager (SRM) with an MR2200ac, and add more when you are ready to expand your coverage even further.
Smart Wi-Fi all around
Multiple MR2200ac can work together as a system to bring Wi-Fi to every corner of your home. Wherever you go, stay on a single Wi-Fi network and enjoy seamless connectivity from one place to another.
The intelligence behind your mesh network
The algorithms built into SRM make deployment incredibly easy. The system intelligently self-configures, self-optimizes, and even self-heals, always giving you the fastest possible path to the Internet.
Whole-home Wi-Fi, easily managed
State-of-the-art technology doesn't have to be complicated. See how Wi-Fi Connect makes your mesh Wi-Fi straightforward – and powerful.
Create a kid-friendly online world
We want kids to be safe online, even when we’re not there. Safe Access helps you lay down rules for each kid without having to look for parental control solutions for every devices. Now you can get a full picture of how they’re exploring the world every day, and protect them until they’re ready.
Security at the perimeter
It's not just people that you need to protect. It's all the connected things: IP cameras, smart doorbells, alarm systems… things that can make a smart home vulnerable. MR2200ac installs multiple layers of protection to shield your network against cyberattacks happening every day.
Advanced functionality made accessible
For small offices who don't want the hassle of wiring access points everywhere, a mesh Wi-Fi solution fits in perfectly. Unlike others, MR2200ac doesn't leave out the network management features businesses care about.
Be mobile
Deploy a mesh network from your phone. Stay on top of the traffic usage, user activities, and security events wherever you are, and act on them with just one tap on the screen. With DS router, you're never too far away from home.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| SIM card slot |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (third band) |
400 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| WLAN data transfer rate (first band) |
867 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN tunnels quantity |
4 |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| Short Message Service (SMS) |
Yes |
| 5G |
No |
| 3G |
No |
| 4G |
No |
| Ports & interfaces |
|---|
| Memory card slot(s) |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Wake-on-LAN ready |
Yes |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| MAC address table |
64 entries |
| MAC address filtering |
Yes |
| Filtering |
Yes |
| DoS attack prevention |
Yes |
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
IPSec |
| Protocols |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| Product colour |
Black |
| Product type |
Tabletop router |
| Certificates |
|---|
| Digital Living Network Alliance (DLNA) certified |
Yes |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Antenna design |
Internal |
| Features |
|---|
| Certification |
FCCCEBSMIVCCI Class BRCMKCiDATELECJATEIC |
| Processor cores |
4 |
| Processor frequency |
717 MHz |
| Built-in processor |
Yes |
| Power |
|---|
| Power consumption (typical) |
12.95 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
199 mm |
| Depth |
65 mm |
| Height |
154 mm |
| Weight |
450 g |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
