Intel Xeon, 64-bit, 8-Core, 32 GB DDR4, 2.5" SAS HDD, 2.5" SATA SSD, 184.32 TB, Btrfs, EXT4, 17.26 kg
Uncompromising performance

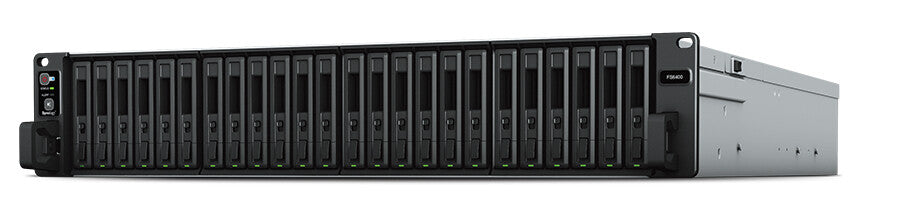

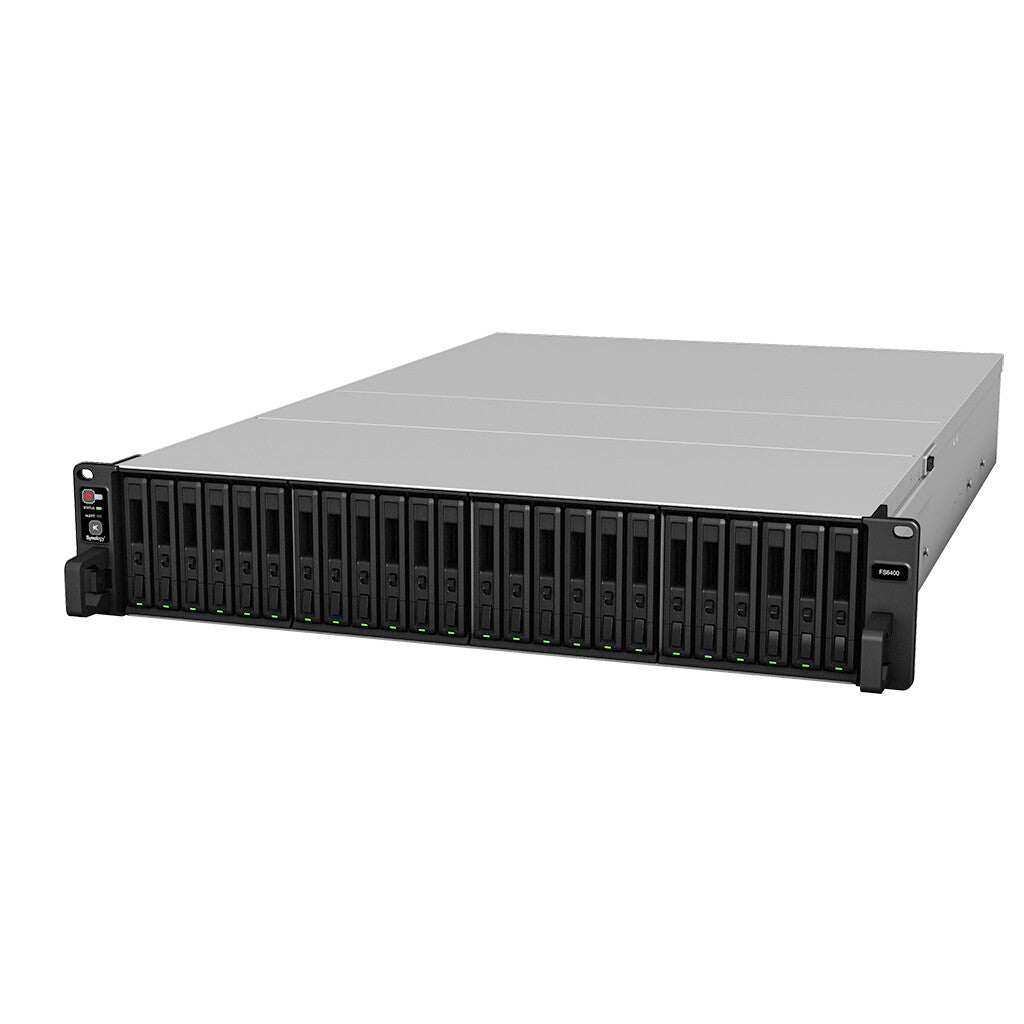

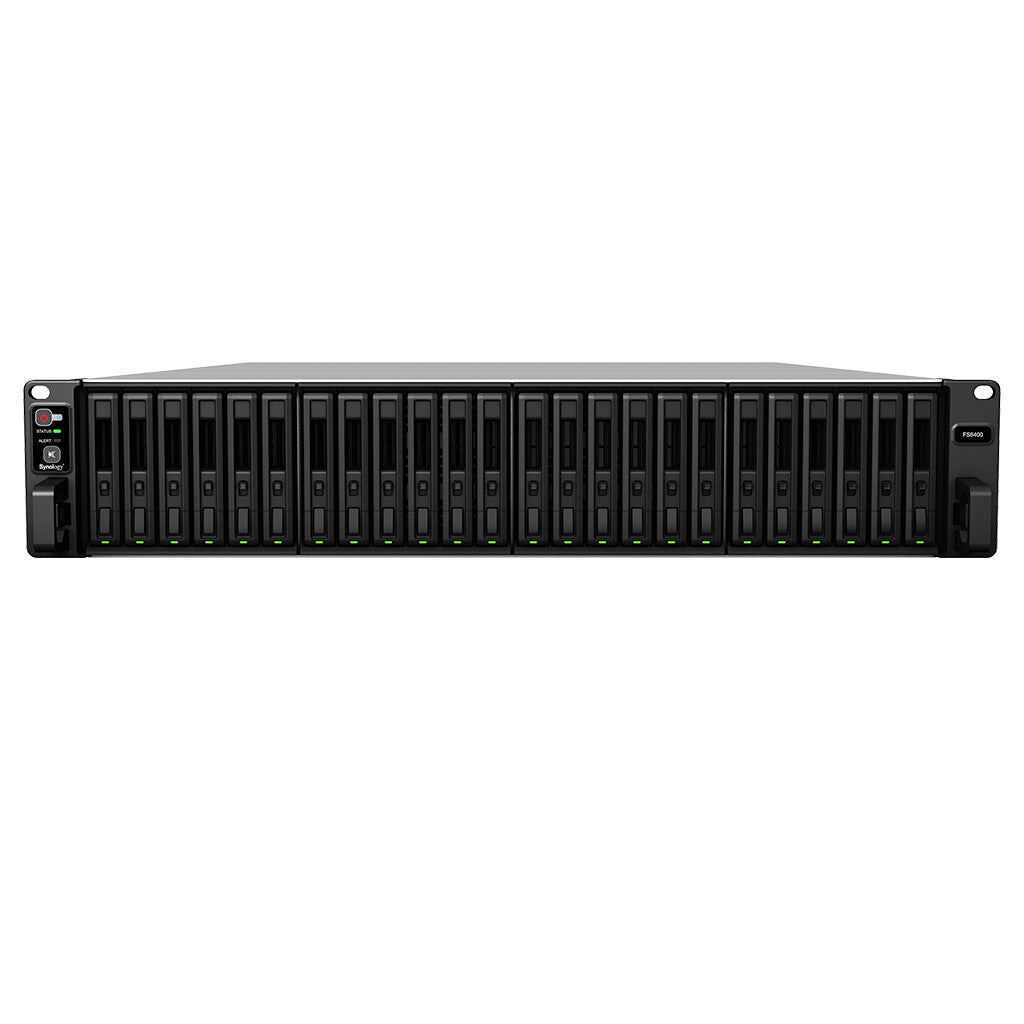

Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.
Fast and reliable networking
With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
Automatic file self-healing detects and recovers corrupted files without user intervention
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes. Learn more
Security Advisor
Analyze system settings, password strength and network preferences, and remove any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
ncrypt shared folders and network data transmission to avoid unauthorized data access.
2-step verification
Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.
Trust level
Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.
5-year warranty
As we're committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity.
Powered by Synology DSM
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Synology Office
Collaborate on documents, spreadsheets, and slides in real time to boost team productivity.
Synology MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, restore and migrate virtual machines.
Security
Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats.
Snapshot Replication
Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.
| Storage |
|---|
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| RAID support |
Yes |
| Storage drives installed |
Yes |
| Processor |
|---|
| Conflict-Free processor |
Yes |
| Maximum internal memory supported by processor |
768 GB |
| PCI Express slots version |
3.0 |
| Processor cache type |
L3 |
| Processor codename |
Skylake |
| Number of processors installed |
2 |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor package size |
76.0 x 56.5 mm |
| Processor socket |
LGA 3647 (Socket P) |
| Scalability |
2S |
| Tcase |
77 °C |
| Thermal Design Power (TDP) |
85 W |
| Processor cache |
11 MB |
| Processor threads |
16 |
| Processor cores |
8 |
| Processor boost frequency |
3 GHz |
| Processor frequency |
2.1 GHz |
| Processor model |
4110 |
| Processor generation |
1st Generation Intel® Xeon® Scalable |
| Processor family |
Intel® Xeon® |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory slots |
16 |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
32 GB |
| Network |
|---|
| Supported network protocols |
CIFS, AFP, NFS, FTP, WebDAV |
| Cabling technology |
10/100/1000Base-T(X) |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| PCI Express x8 (Gen 3.x) slots |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
|---|
| Product colour |
Black |
| Chassis type |
Rack (2U) |
| Performance |
|---|
| Optical drive type |
No |
| Noise level |
53.7 dB |
| Number of users |
6000 user(s) |
| Software |
|---|
| Operating system installed |
Windows Server 2016 Standard |
| Power |
|---|
| Power consumption (typical) |
288.49 W |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
1 |
| Weight & dimensions |
|---|
| Weight |
17.3 kg |
| Height |
88 mm |
| Depth |
724 mm |
| Width |
482 mm |
| Processor special features |
|---|
| Memory types supported by processor |
LPDDR4-SDRAM |
| Embedded options available |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Execute Disable Bit |
Yes |
| Intel 64 |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel TSX-NI |
Yes |
| Intel TSX-NI version |
1.00 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Maximum number of PCI Express lanes |
48 |
| Packaging content |
|---|
| Cables included |
AC |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 35 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
84714100 |
| Other features |
|---|
| Processor ARK ID |
123547 |
| Certification |
EAC, VCCI, RCM, KC, FCC, CE, BSMI |
| Power requirements |
100 - 240 |
| Compatible operating systems |
Windows Server 2016 |
| Maximum internal memory |
512000 MB |
| Power consumption (standby) |
145.8 W |
