Synology

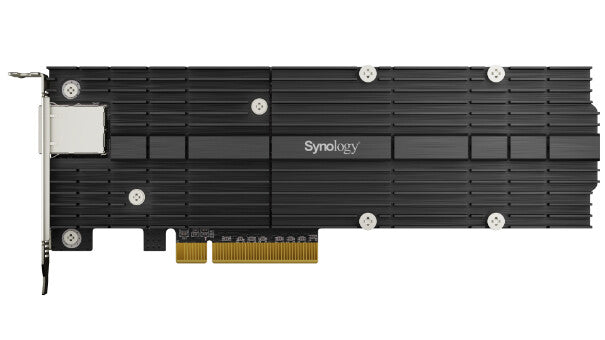

Synology E10M20-T1 interface cards/adapter Internal PCIe

R 5,215.16
R 5,215.16
R 5,215.16
Shipping calculated at checkout.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Low stock! Only 3 left
PCIe 3.0 x8, PCIe NVMe, LAN, 10 Gbps, 200.05 x 71.75 x 17.7 mm

10GbE bandwidth and M.2 SSD cache, all at once
Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.

- Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.
- Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
- Free up primary drive bays for data storage.

A perfect match with Synology SNV3000 series NVMe SSD
Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.

Ports & interfaces
NVMe Yes
Expansion card standard PCIe 3.0
Expansion card form factor Full-height / Low-profile
Output interface PCIe
Host interface PCIe
Design
Cooling type Passive
Purpose NAS / Storage server
Product colour Black
Internal Yes
Features
Full duplex Yes
Data transfer rate (max) 10 Gbit/s
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 71.8 mm
Depth 17.7 mm
Width 200.1 mm
Packaging data
Quick installation guide Yes
Quantity 1
Logistics data
Harmonized System (HS) code 84733020
Other features
Compatibility SA series:SA3600, SA340022 series:DS3622xs+, DS2422+21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+20 series:RS820RP+, RS820+19 series:DS2419+, DS2419+II, DS1819+18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
