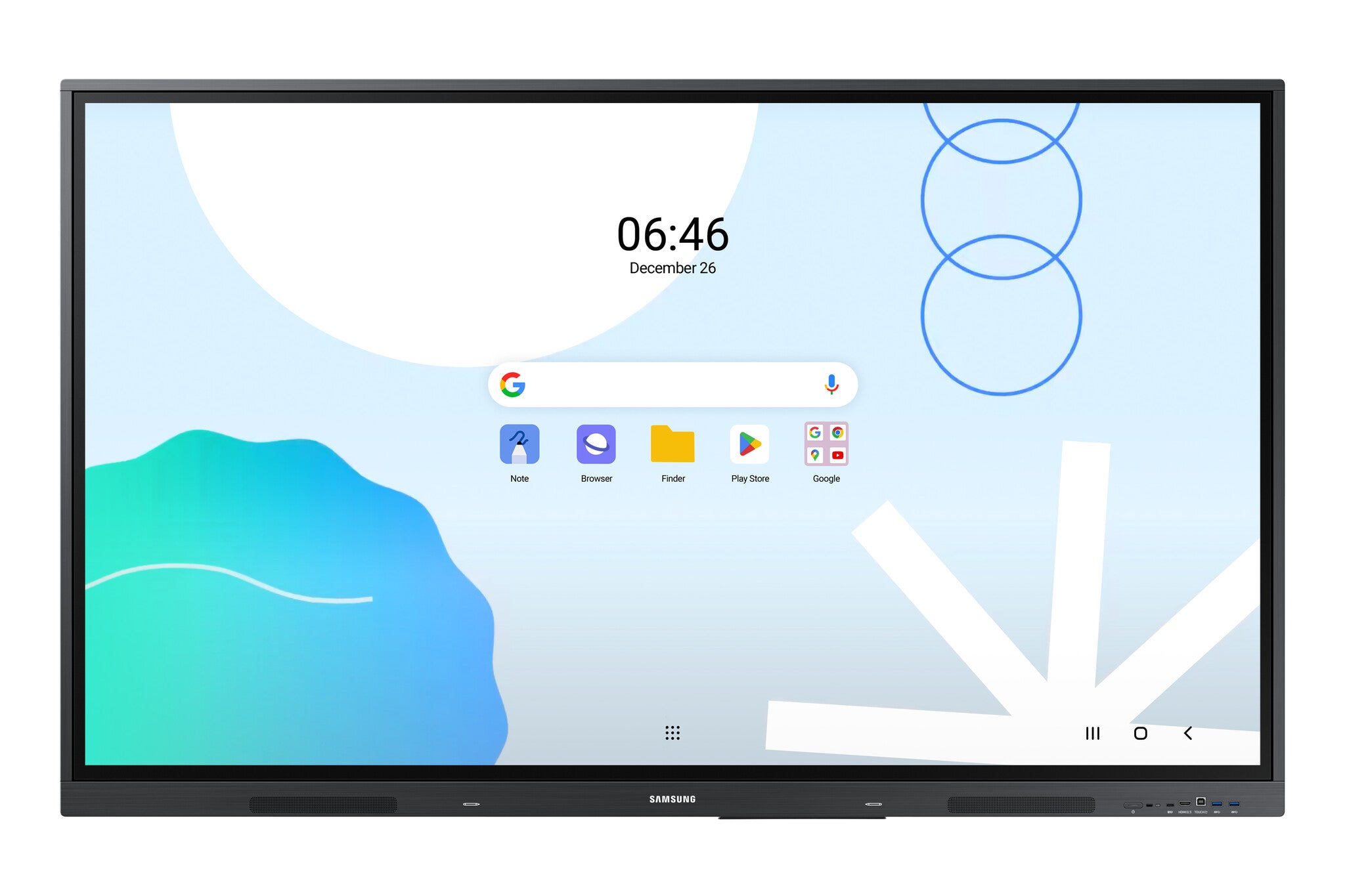

SAMSUNG ANDROID INTERACTIVE WHITEBOARD WAD - 7 YEAR ONSITE WARRANTY - ANDROID INTERACTIVE WHITEBOARD 7 YEAR WARRANTY 3 840 X 2 160 60HZ 8MS RESPONSE TIME (G-TO-G) 400CD/M² BRIGHTNESS (TYP.) 1 200:1 CONTRAST RATIO BUILT IN SPEAKER (15W X 2CH) HDMI
| Display |
|---|
| Haze rate |
25% |
| Maximum pixel clock |
78 MHz |
| Colour gamut |
72% |
| Pixel pitch |
429.6 x 429.6 mm |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Touchscreen type |
Infrared |
| Touch technology |
Multi-touch |
| Touchscreen |
Yes |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Native aspect ratio |
16:9 |
| Panel type |
ADS |
| HD type |
4K Ultra HD |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
400 cd/m² |
| Display diagonal |
2.18 m (86") |
| Computer system |
|---|
| Maximum internal memory |
64 GB |
| Operating system version |
13 |
| Operating system installed |
Android |
| Projector |
|---|
| Built-in projector |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| Ports & interfaces |
|---|
| IR input port |
Yes |
| Video out |
Yes |
| RS-232 ports |
2 |
| Audio output |
1 |
| Microphone connectivity |
3.5 mm |
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDCP version |
2.1 |
| HDCP |
Yes |
| Ergonomics |
|---|
| Certification |
Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252 |
| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Product colour |
Grey |
| Performance |
|---|
| Operating hours (hours/days) |
12/7 |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (sleep) |
0.5 W |
| Power consumption (typical) |
486 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Bezel width |
1.64 cm |
| Weight |
56.5 kg |
| Height |
1160 mm |
| Depth |
99 mm |
| Width |
1957 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
74.3 kg |
| Package height |
1283 mm |
| Package depth |
225 mm |
| Package width |
2110 mm |
| General |
|---|
| Product family |
WAD series |
