24" ADS, 1920 x 1080, 250 cd/m², 1000:1, 178/178, 14 ms, SoC, i3, 256 GB, RJ45, HDMI, USB, 16/7, Windows 10 IoT Enterprise
Self-service out of the box with Windows OS

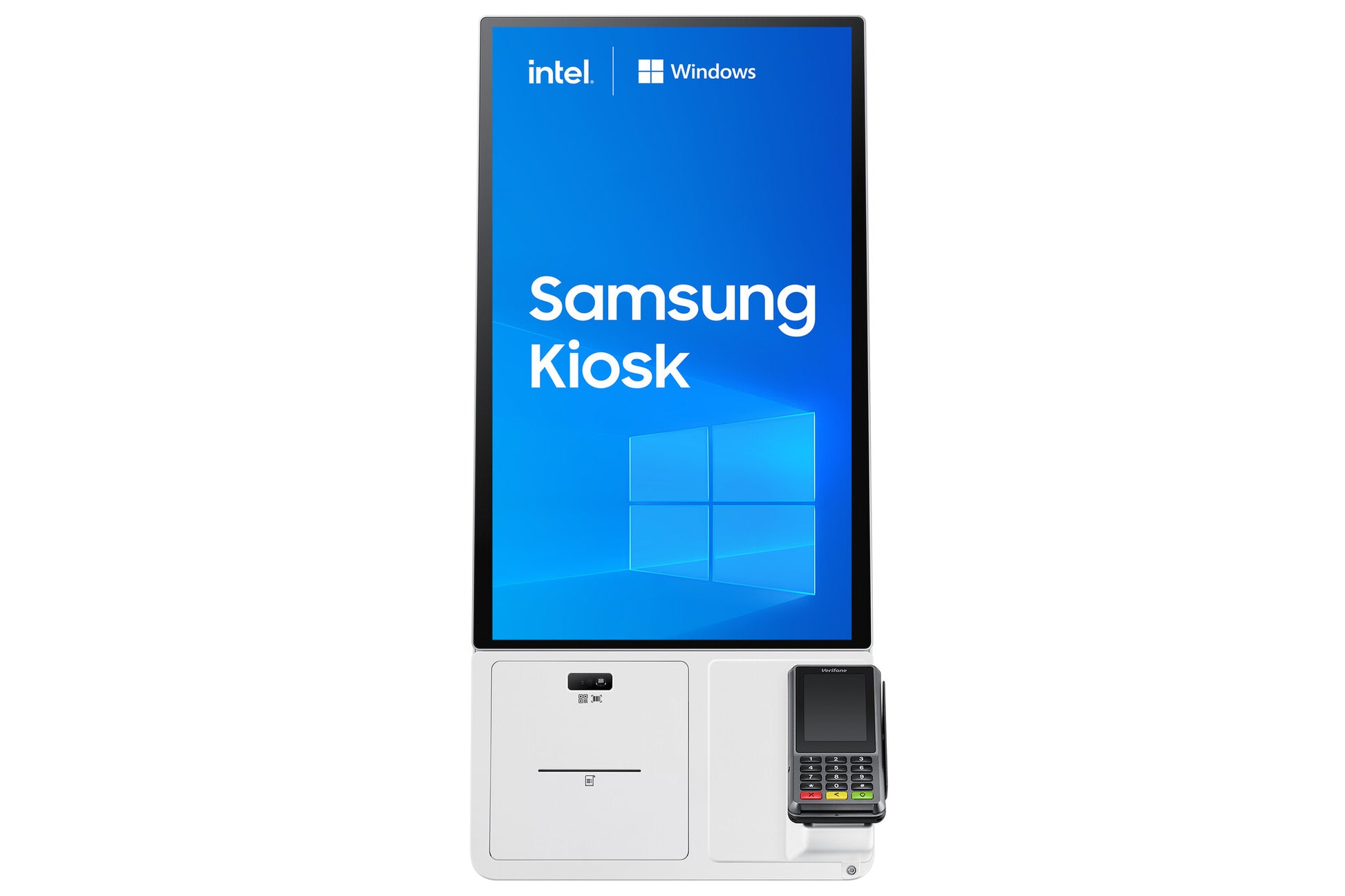

Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.
Modular functionality to support any payment type
Boost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.
All-in-one solution with upgraded compatibility
Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.
Robust yet stable performance
Powered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.

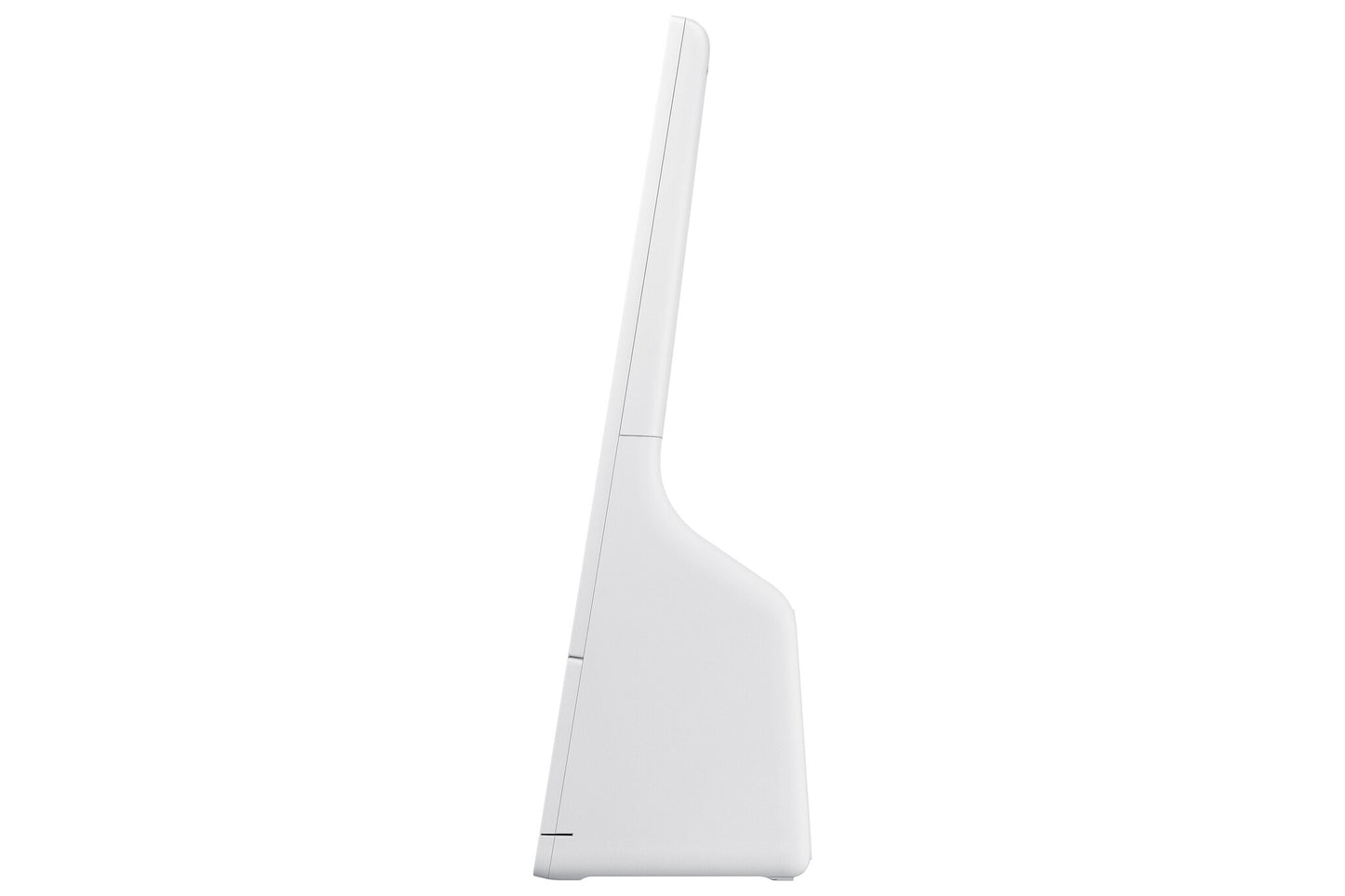

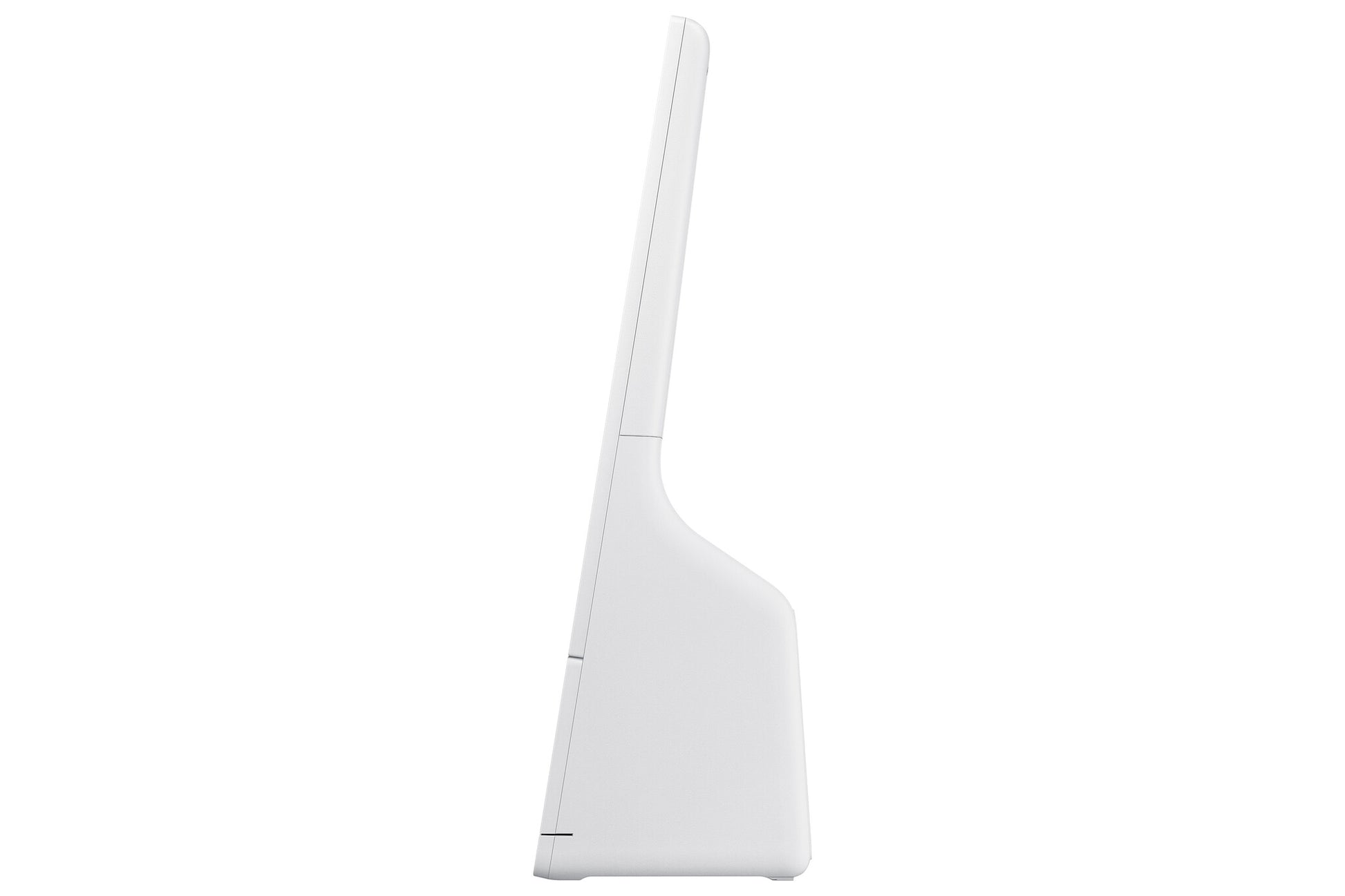

Compact and modern design

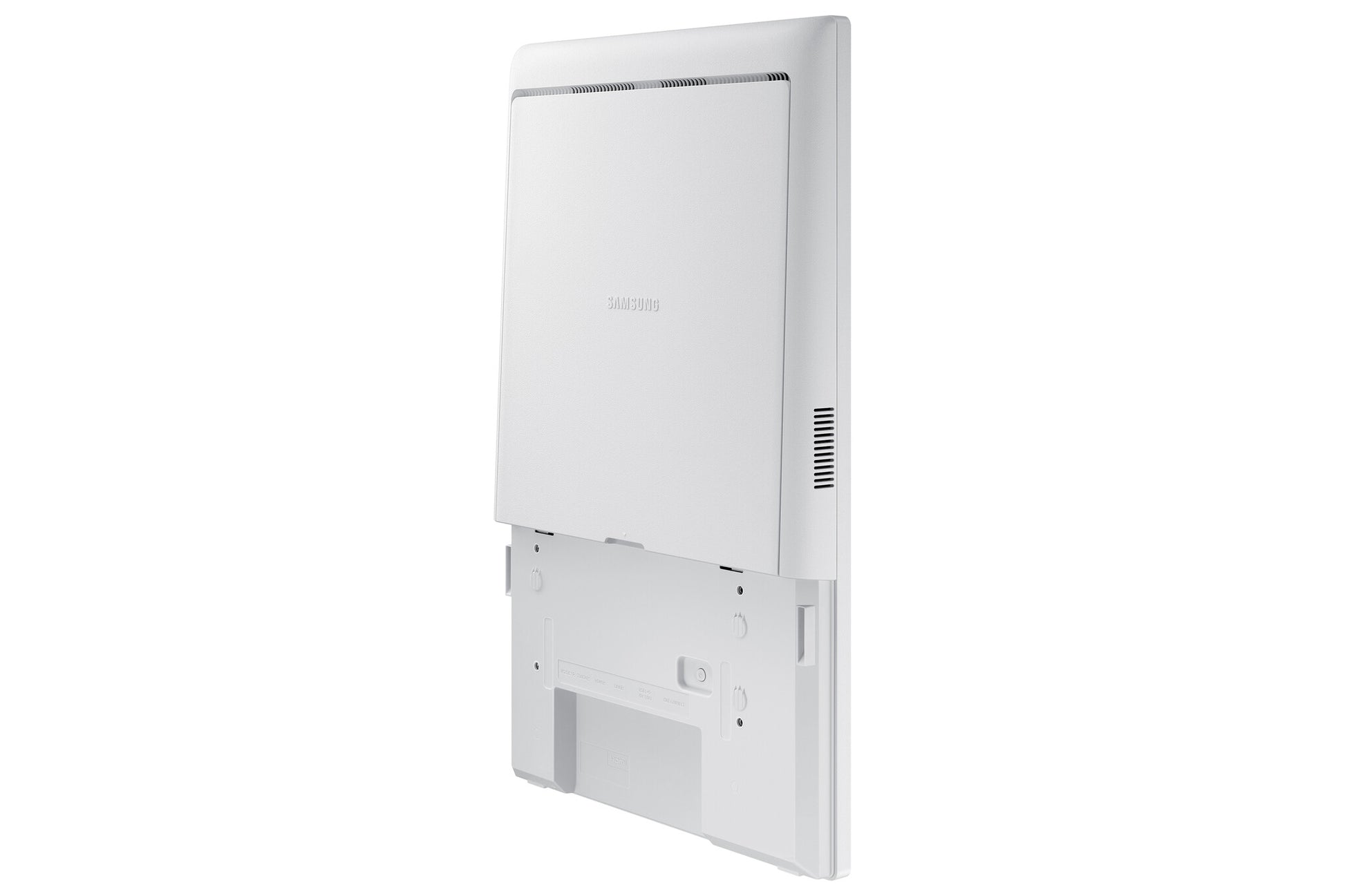

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.
Versatile solution for any scenario

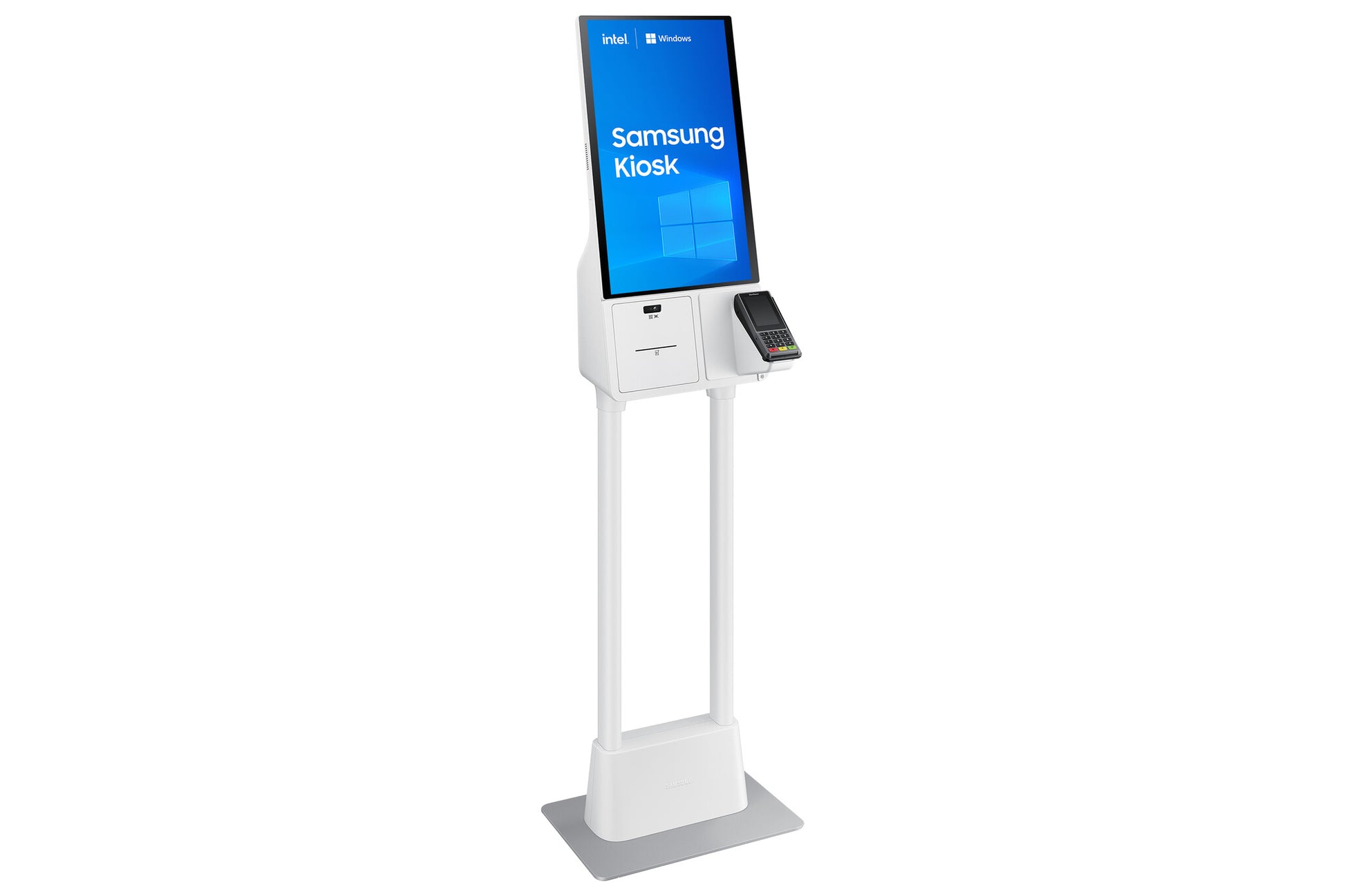

For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.
Keep the screen clean
Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.
Minimize accidents and risks
Shatterproof protection
Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
| Display |
|---|
| Colour gamut |
72% |
| Horizontal scan range |
56 - 84.5 kHz |
| Vertical scan range |
48 - 75 Hz |
| Haze rate |
25% |
| Display diagonal (metric) |
60.4 cm |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Contrast ratio (typical) |
1000:1 |
| Response time |
14 ms |
| Native aspect ratio |
16:9 |
| Touchscreen technology |
Capacitive |
| Touchscreen |
Yes |
| HD type |
Full HD |
| Display brightness |
250 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Panel type |
ADS |
| Display technology |
LED |
| Display diagonal |
61 cm (24") |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB ports quantity |
1 |
| USB port |
Yes |
| Design |
|---|
| Bezel width (bottom) |
9.4 mm |
| Bezel width (side) |
1.79 cm |
| Bezel width (top) |
9.4 mm |
| Anti-glare screen |
Yes |
| VESA mounting |
No |
| Screen shape |
Flat |
| Orientation |
Vertical |
| Placement supported |
Indoor |
| Product colour |
White |
| Product design |
Kiosk design |
| Performance |
|---|
| Operating hours (hours/days) |
16/7 |
| Purpose |
Commercial |
| Power |
|---|
| Power consumption (sleep) |
0.5 W |
| Power consumption (typical) |
88 W |
| Computer system |
|---|
| Operating system installed |
Windows 10 IoT Enterprise |
| Internal memory |
256 GB |
| Processor family |
Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Computer system type |
System on Chip (SoC) |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
4.3 kg |
| Display height |
334.4 mm |
| Display depth |
48.8 mm |
| Display width |
547.9 mm |
| Packaging data |
|---|
| Package weight |
5.7 kg |
| Package height |
419 mm |
| Package depth |
122 mm |
| Package width |
620 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 45 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005 |
| General |
|---|
| Product family |
KMC-W |
| Other features |
|---|
| Safety |
CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950 |
