ADF, 600 dpi, 140ppm/280ipm, A3, Duplex, USB2.0, White LED Array x 4

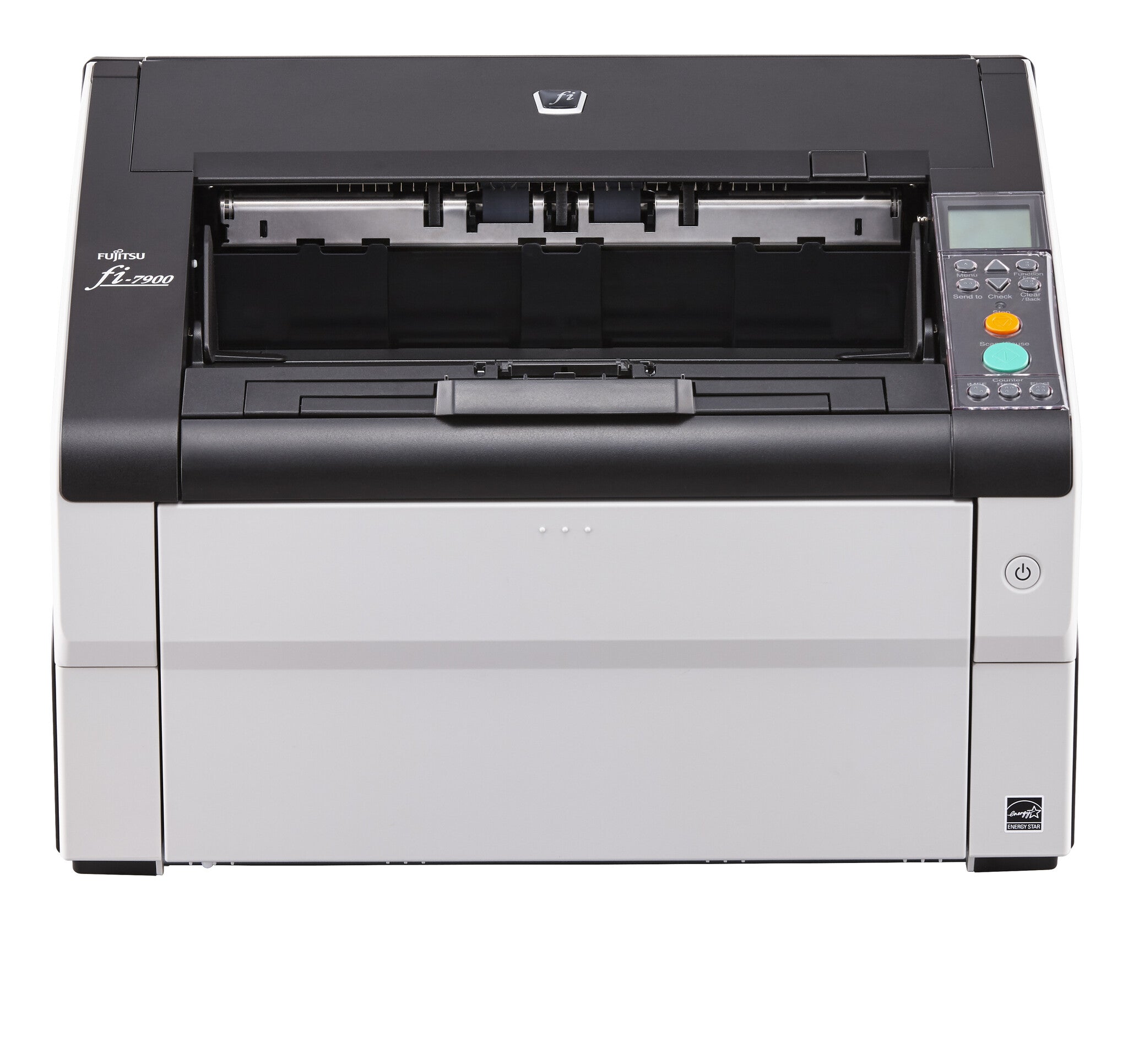

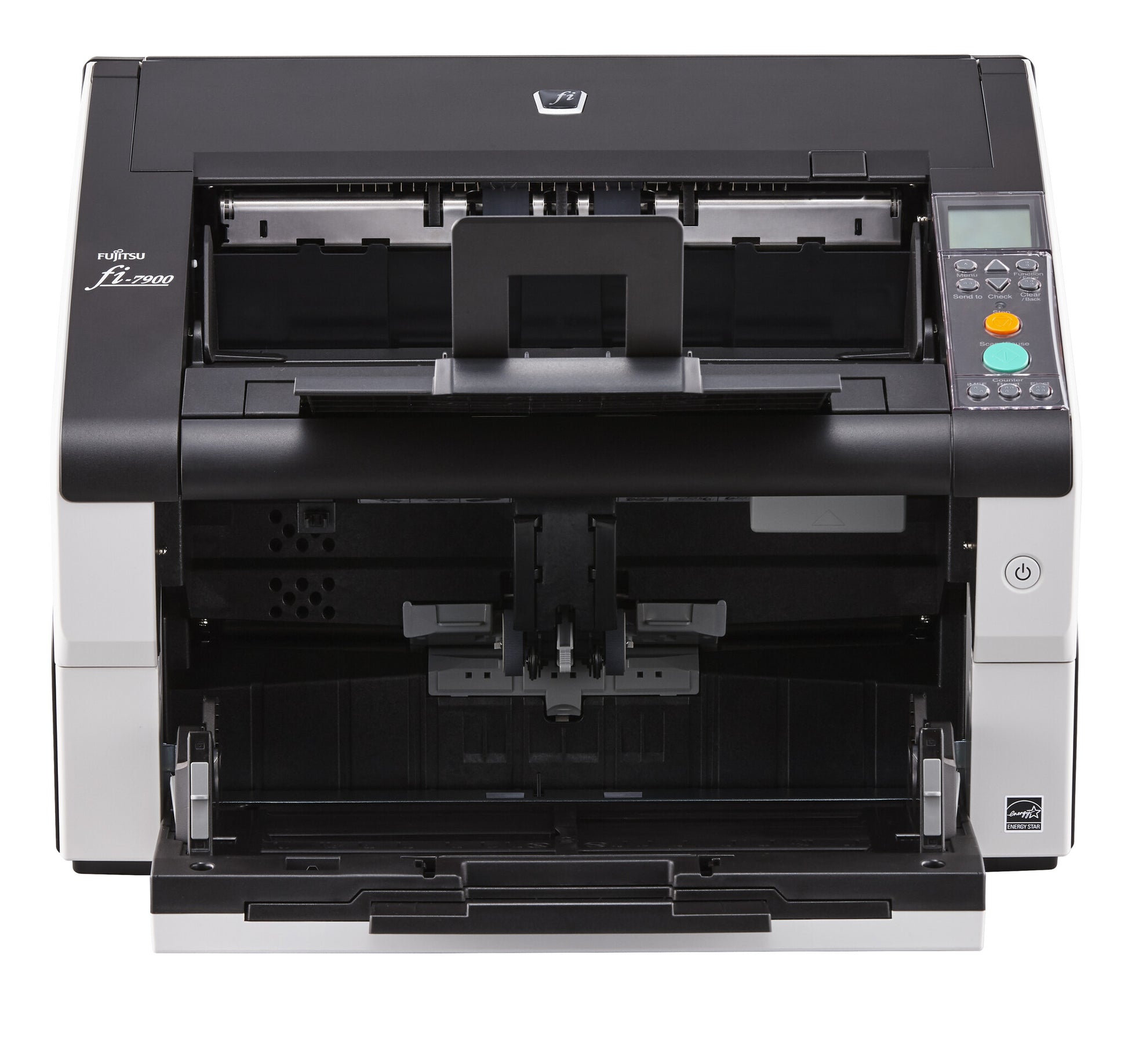

The fi-7900 achieves scanning speeds of 140 ppm/280 ipm (A4 landscape, color, 200/300 dpi), is capable of scanning up to as many as 120,000 sheets a day, and is highly optimized for centralized scanning.
The scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.
| Scanning |
|---|
| Background colours |
Black, White |
| Selectable background colour |
Yes |
| Black/white scanning colour modes |
Grayscale, Monochrome |
| Duplex ADF scan speed (b/w, A4) |
280 ipm |
| Duplex ADF scan speed (colour, A4) |
210 ipm |
| ADF scan speed (colour, A4) |
140 ppm |
| ADF scan speed (b/w, A4) |
140 ppm |
| Output monochrome depth |
1 bit |
| Output greyscale depth |
8 bit |
| Output colour depth |
24 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Maximum scan size |
304.8 x 431.8 mm |
| Design |
|---|
| Product colour |
Black, Grey |
| Built-in display |
Yes |
| Scanner type |
ADF + Manual feed scanner |
| Performance |
|---|
| Scanner error detection |
Yes |
| Scan drivers |
ISIS, TWAIN, WIA |
| Ultrasonic double sheet detection |
Yes |
| Daily duty cycle (max) |
120000 pages |
| Light source |
White LED (4x) |
| Sensor type |
Dual CCD |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
500 sheets |
| Paper handling |
|---|
| Minimum scan area (ADF) |
52 x 74 mm |
| Maximum scan length |
5.59 m |
| Auto Document Feeder (ADF) media weight |
20 - 209 g/m² |
| Letter |
Yes |
| Legal |
Yes |
| ISO A-series sizes (A0...A9) |
A3, A4, A5, A6 |
| ISO B-series sizes (B0...B9) |
B5, B6 |
| Multi feed detection |
Yes |
| Long-paper mode |
Yes |
| Maximum ISO A-series paper size |
A3 |
| Ports & interfaces |
|---|
| Standard interfaces |
USB 2.0 |
| Socket connector type |
C13 |
| USB connector type |
USB Type-B |
| USB version |
2.0 |
| USB port |
Yes |
| Power |
|---|
| Power consumption (sleep) |
3.2 W |
| Sleep mode |
Yes |
| Power consumption (off) |
0.3 W |
| Power supply type |
AC |
| Power consumption (typical) |
200 W |
| Features |
|---|
| Country of origin |
Japan |
| Packaging data |
|---|
| Package weight |
39 kg |
| Package height |
618 mm |
| Package depth |
642 mm |
| Package width |
548 mm |
| Quantity per pack |
1 pc(s) |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 x64, Windows 7, Windows 8 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Weight |
32 kg |
| Height |
310 mm |
| Depth |
430 mm |
| Width |
460 mm |
| Packaging content |
|---|
| Drivers included |
Yes |
| Cables included |
AC |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Sustainability certificates |
ENERGY STAR |
| Logistics data |
|---|
| Paper packaging weight |
2.4 kg |
| Metal packaging weight |
0 g |
| Wood packaging weight |
0 g |
| Plastic packaging weight |
15 g |
| Products per pallet (air) |
4 pc(s) |
| Products per pallet (sea) |
6 pc(s) |
| Pallet height (sea) |
187 cm |
| Pallet height (air) |
129 cm |
| Cardboard packaging weight |
1.2 kg |
| Foil packaging weight |
15 g |
| Polystyrene (EPS/EPP) packaging weight |
200 g |
| Glass packaging weight |
0 g |
| Pallet gross length |
70 cm |
| Pallet gross width |
130 cm |
| Harmonized System (HS) code |
8471607000 |
