fi-7600 - ADF, 50.8 x 69 mm - 304.8 x 431.8 mm, 2x CCD, 600dpi, USB 3.1, 11 kg
The fi-7600 achieves scanning speeds of 100 ppm/200 ipm (A4 landscape, color, 200/300 dpi), is capable of loading up to 300 sheets at a time and scanning up to as many as 44,000 sheets a day. With its high quality technologies and user-friendly design, the scanner is suitable for continuous high volume scanning. The scanner's ability to scan various documents such as thin paper, plastic cards, envelopes and long page documents boosts user productivity.
| Scanning |
|---|
| Background colours |
Black, White |
| Selectable background colour |
Yes |
| Black/white scanning colour modes |
Grayscale, Monochrome |
| Duplex ADF scan speed (b/w, A4) |
200 ipm |
| Duplex ADF scan speed (colour, A4) |
200 ipm |
| ADF scan speed (colour, A4) |
100 ppm |
| ADF scan speed (b/w, A4) |
100 ppm |
| Output monochrome depth |
1 bit |
| Output greyscale depth |
8 bit |
| Output colour depth |
24 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Maximum scan size |
304.8 x 5588 mm |
| Design |
|---|

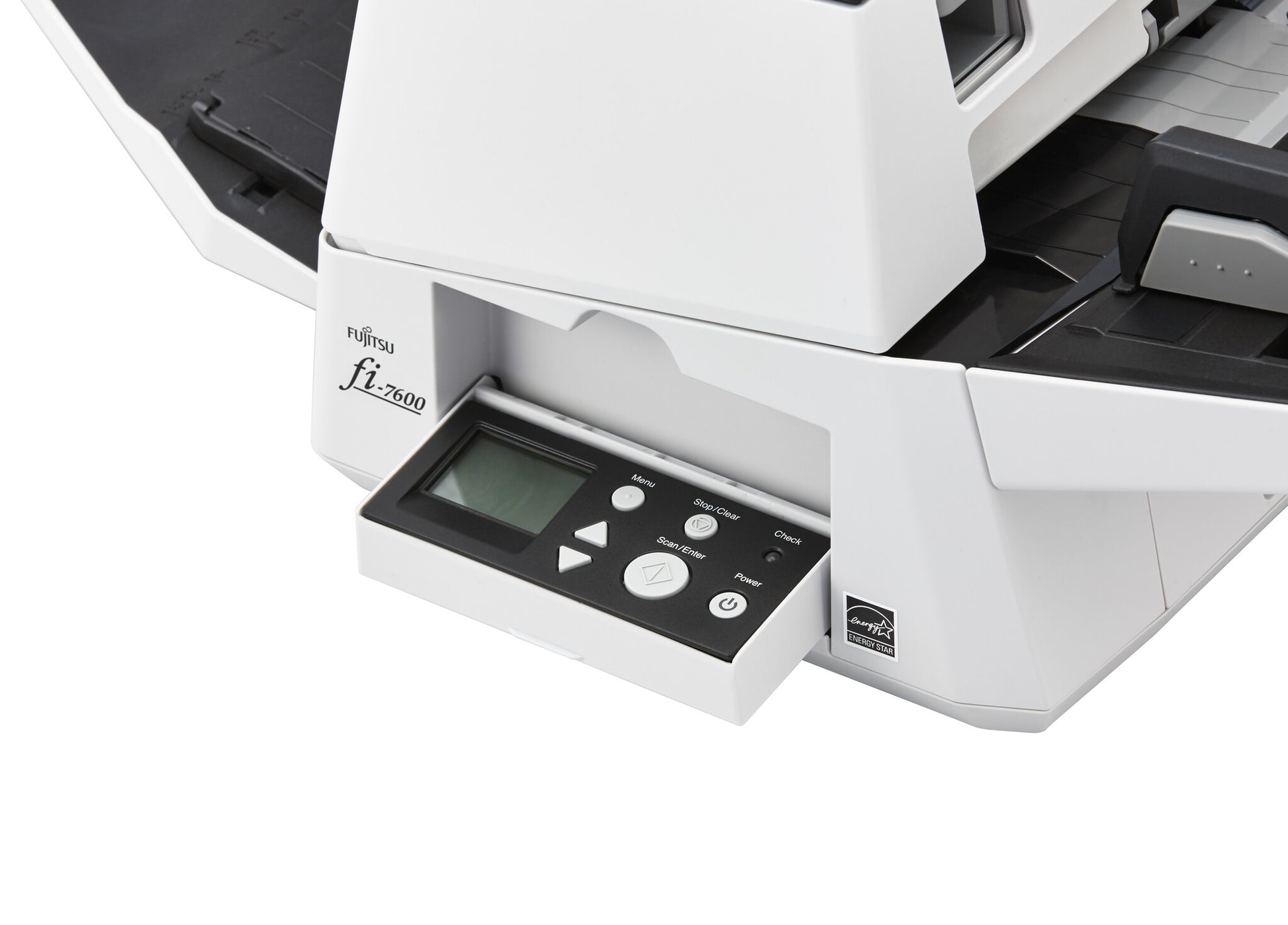

| Display |
LCD |
| Product colour |
Black, White |
| Built-in display |
Yes |
| Scanner type |
ADF + Manual feed scanner |
| Performance |
|---|
| Scan drivers |
ISIS, TWAIN |
| Daily duty cycle (max) |
44000 pages |
| Light source |
White LED (4x) |
| Sensor type |
Dual CCD |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
300 sheets |
| Paper handling |
|---|
| Maximum scan area (ADF) |
304.8 x 431.8 mm |
| Minimum scan area (ADF) |
50.8 x 69 mm |
| Auto Document Feeder (ADF) media weight |
20 - 413 g/m² |
| ISO A-series sizes (A0...A9) |
A3, A3+, A4, A5, A6, A7, A8 |
| Multi feed detection |
Yes |
| Scanning media types supported |
Envelopes, Plain paper, Plastic Card, Thin paper |
| Maximum ISO A-series paper size |
A3 |
| Ports & interfaces |
|---|
| Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Socket connector type |
C5 |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| USB port |
Yes |
| Power |
|---|
| Input voltage |
100-240 V |
| Power consumption (PowerSave) |
1.7 W |
| Power consumption (off) |
0.35 W |
| Power consumption (standby) |
0.35 W |
| Power supply type |
AC |
| Power consumption (typical) |
64 W |
| Features |
|---|
| Country of origin |
Indonesia |
| Packaging data |
|---|
| Package weight |
16 kg |
| Package height |
506 mm |
| Package depth |
595 mm |
| Package width |
396 mm |
| Quantity per pack |
1 pc(s) |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported |
Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Weight |
11 kg |
| Height |
214 mm |
| Depth |
432 mm |
| Width |
236 mm |
| Packaging content |
|---|
| Bundled software |
PaperStream Capture, PaperStream IP, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools |
| Drivers included |
Yes |
| Cables included |
AC, USB |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| ADF paper chute |
Yes |
| Stacker |
Yes |
| Other features |
|---|
| Downloadable software |
ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Sustainability certificates |
ENERGY STAR |
| Logistics data |
|---|
| Paper packaging weight |
2.4 kg |
| Metal packaging weight |
0 g |
| Wood packaging weight |
0 g |
| Plastic packaging weight |
15 g |
| Products per pallet (air) |
10 pc(s) |
| Products per pallet (sea) |
15 pc(s) |
| Pallet height (sea) |
166.8 cm |
| Pallet height (air) |
116.2 cm |
| Cardboard packaging weight |
1.2 kg |
| Foil packaging weight |
15 g |
| Polystyrene (EPS/EPP) packaging weight |
200 g |
| Glass packaging weight |
0 g |
| Pallet gross length |
121.9 cm |
| Pallet gross width |
101.6 cm |
| Harmonized System (HS) code |
8471607000 |
