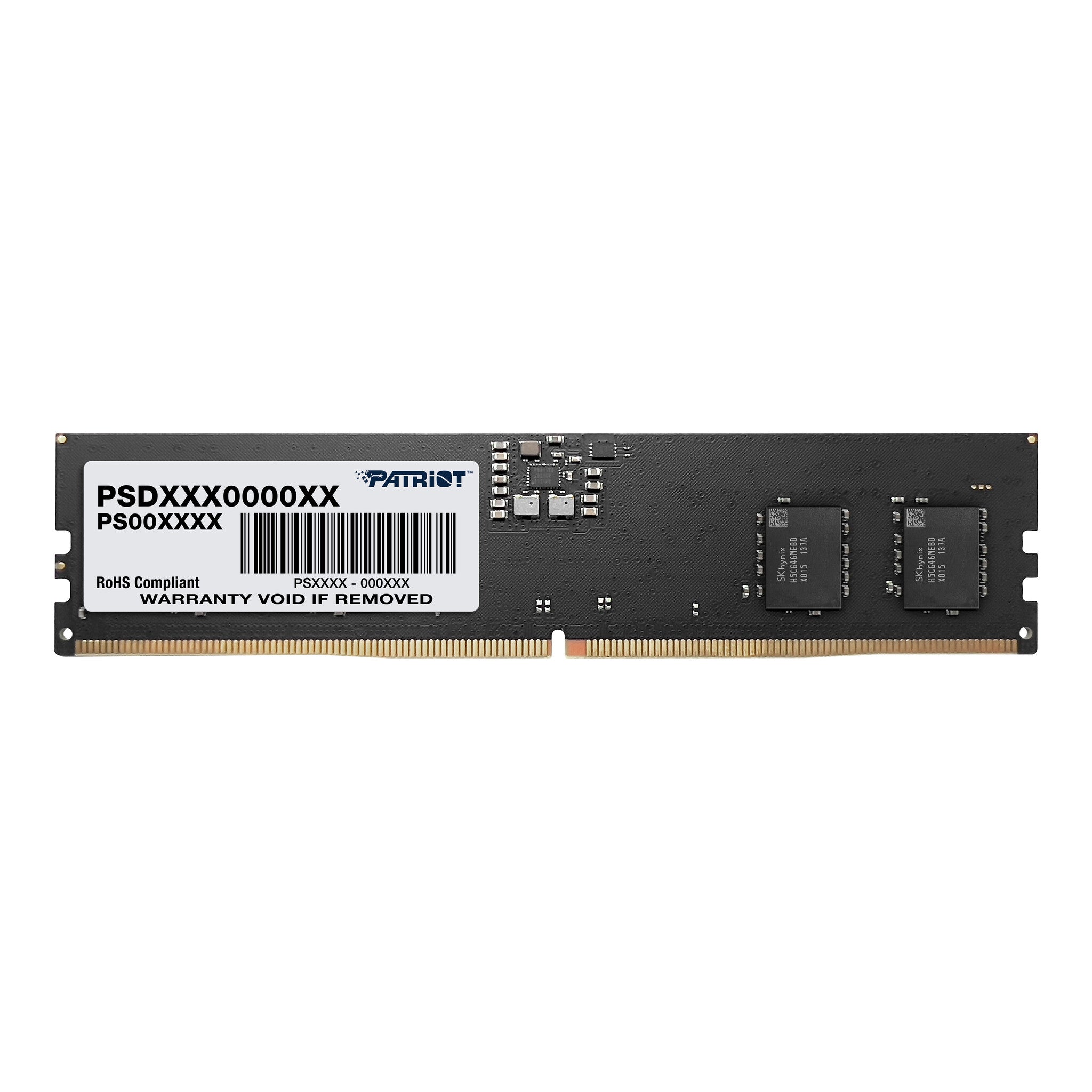

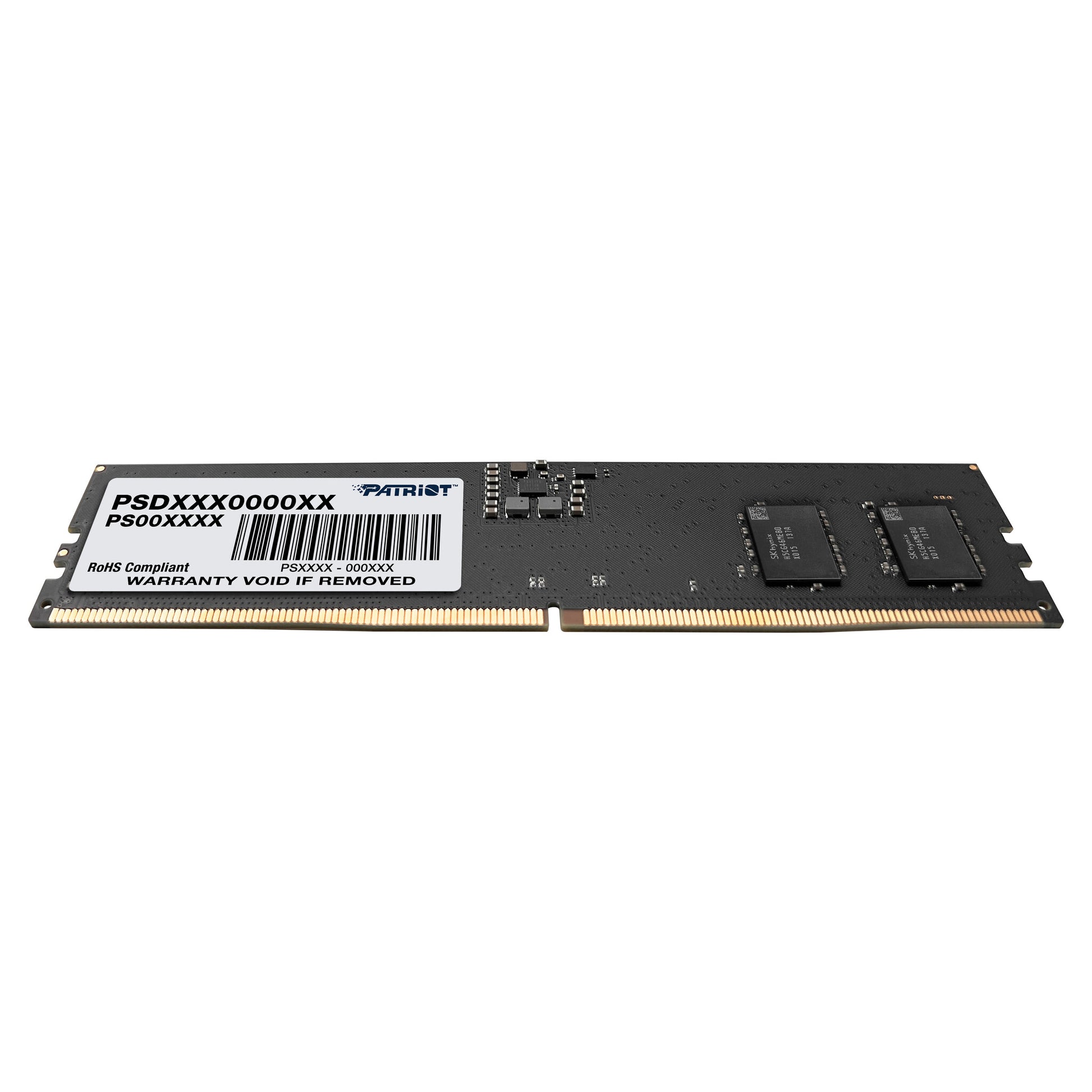

16 GB, DDR5, 5600 MHz, 288-pin, U-DIMM, 1.1 V
Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability.
| Features |
|---|
| Memory voltage |
1.1 V |
| CAS latency |
46 |
| On-Die ECC |
Yes |
| ECC |
No |
| Memory form factor |
288-pin DIMM |
| Component for |
PC |
| Memory clock speed |
5600 MHz |
| Internal memory type |
DDR5 |
| Memory layout (modules x size) |
1 x 16 GB |
| Internal memory |
16 GB |
| Buffered memory type |
Unregistered (unbuffered) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 85 °C |
| General |
|---|
| Product family |
Signature Line |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
17 g |
| Height |
32 mm |
| Depth |
2 mm |
| Width |
133 mm |
| Packaging data |
|---|
| Package type |
Blister |
| Package weight |
29 g |
| Package height |
170 mm |
| Package depth |
12 mm |
| Package width |
61 mm |
