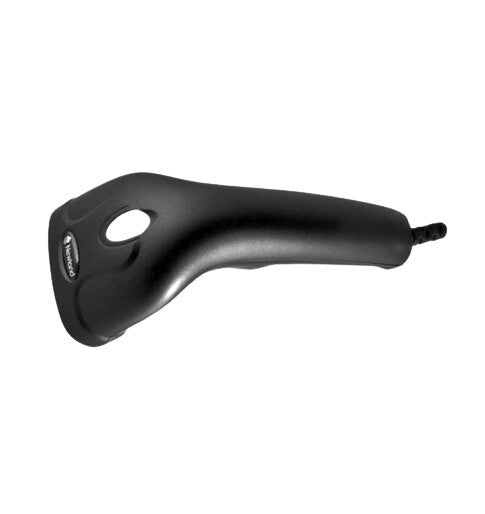

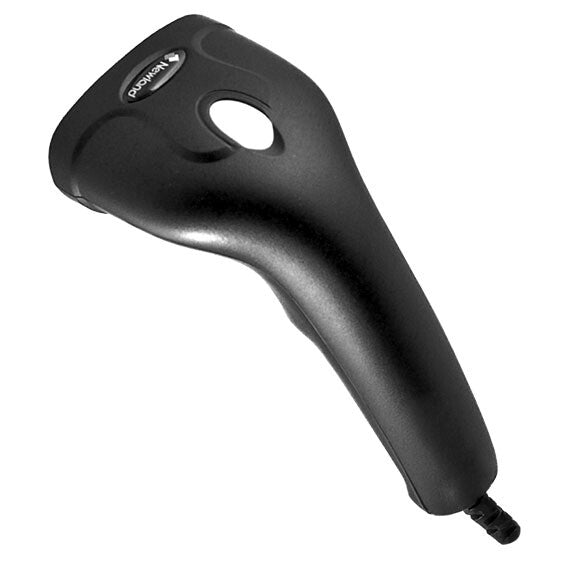

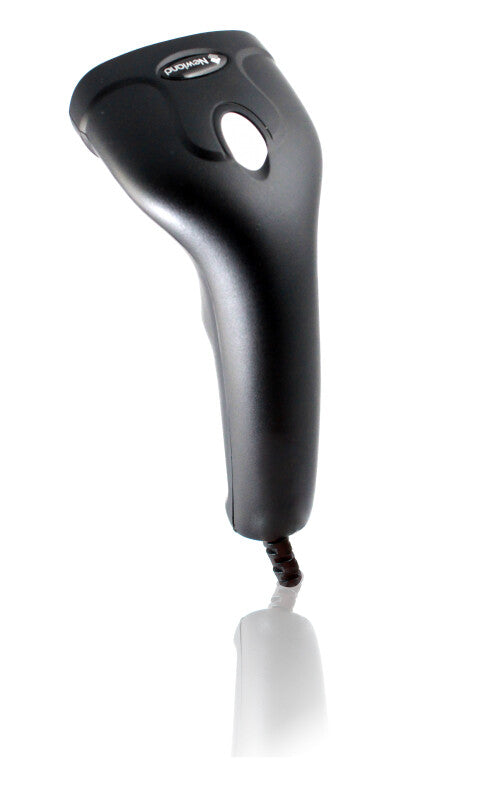

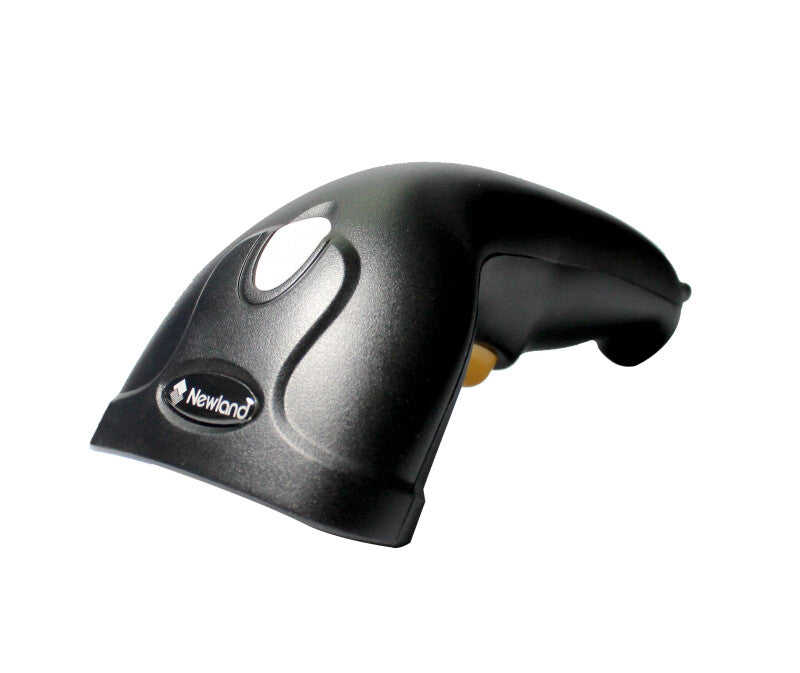

Newland HR12 Anchoa Handheld bar code reader 1D CCD Black

R 527.85
R 527.85
R 527.85
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

1D, CCD, 610-640nm, ≥4mil, USB, Black, 130g

The HR12 Anchoa handheld scanner is a practical & user friendly entry level scanner at an extremely competitive price. The Anchoa incorporates Newland's 1D chip technology for excellent 1D barcode scanning performance at exceptionally low power consumption.

The HR12 Anchoa can perform up to 300 scans per second, which translates into very fast and accurate barcode capturing. In addition, its compact size, ergonomic and solid state design makes a smart solution for extensive use in varied environments.

Scanning
Yaw reading angle -30 - 30°
Pitch reading angle -60 - 60°
Tilt reading angle -60 - 60°
Wavelength 640 nm
Read rate (max) 300 reads/s
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF-14, MSI
2D (matrix & stacked) barcodes supported Not supported
Sensor type CCD
Scanner type 1D
Type Handheld bar code reader
Ports & interfaces
Cable length 2 m
Standard interfaces USB
Connectivity technology Wired
Performance
Certification FCC Part15 Class B, CE EMC Class B
Built-in processor Yes
LED indicators Yes
Protection features Electrostatic Discharge (ESD) protection
International Protection (IP) code IP41
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Product colour Black
Power
Power consumption 120 mA
Power source type DC
Weight & dimensions
Weight 130 g
Height 58.5 mm
Depth 163 mm
Width 68.4 mm
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Sustainability compliance Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Warranty period 5 year(s)
