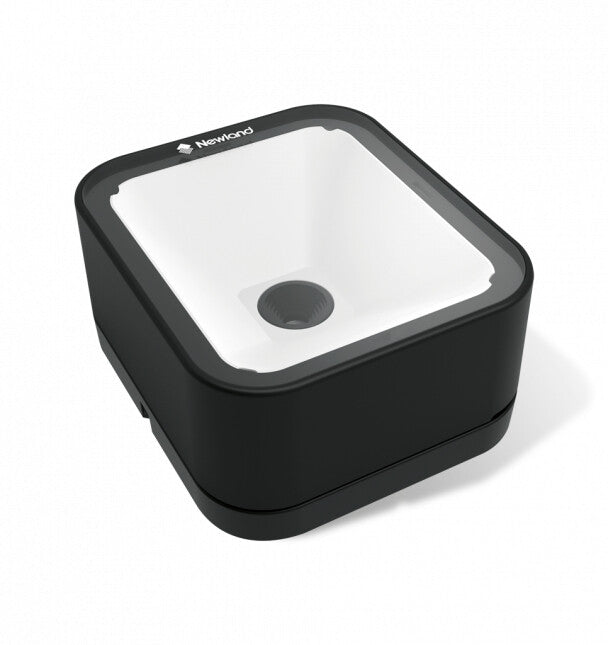

Newland FR27 Urchin Fixed bar code reader 1D/2D CMOS Black, White

R 1,518.00
R 1,518.00
R 1,518.00
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
FR27 Urchin 2D CMOS Desktop Area Imager Reader, w / 1.5 meter direct USB cable

The FR27 Urchin, Newlands smallest presentation scanner, strikes the perfect balance between performance and play. Its large scan window and outstanding motion tolerance makes self-service scanning a breeze. All whilst maintaining a small & sleek footprint, fit to enhance your countertop design. With the possibility to be mounted horizontally, vertically and to manipulate the cable, the FR27 Urchin can be installed to blend into its environment. This plug-and-go USB scanner just made your self-service scanning childsplay.

Scanning
Pitch reading angle -75 - 75°
Light levels (direct sunlight) 0 - 100000 lx
Optical sensor resolution (W x H) 640 x 480 pixels
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Sensor type CMOS
Scanner type 1D/2D
Type Fixed bar code reader
Ports & interfaces
Standard interfaces USB
Connectivity technology Wired
Performance
Certification VCCI
LED indicators Yes
International Protection (IP) code IP42
Product colour Black, White
Power
Power consumption 140 mA
Input voltage 5 V
Power consumption (typical) 0.698 W
Power source type DC
Weight & dimensions
Weight 120 g
Height 38 mm
Depth 76.3 mm
Width 66.3 mm
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Technical details
Sustainability compliance Yes
Compliance certificates CE, RoHS
