NVIDIA GeForce RTX 3080 Ti, 12GB GDDR6X, 384 bit, PCI Express 4.0, 1 x HDMI (2.1), 3 x DP (1.4a), CUDA, DirectX 12.0, OpenGL 4.6, VR, 350W
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
WE’VE GOT YOUR BACK

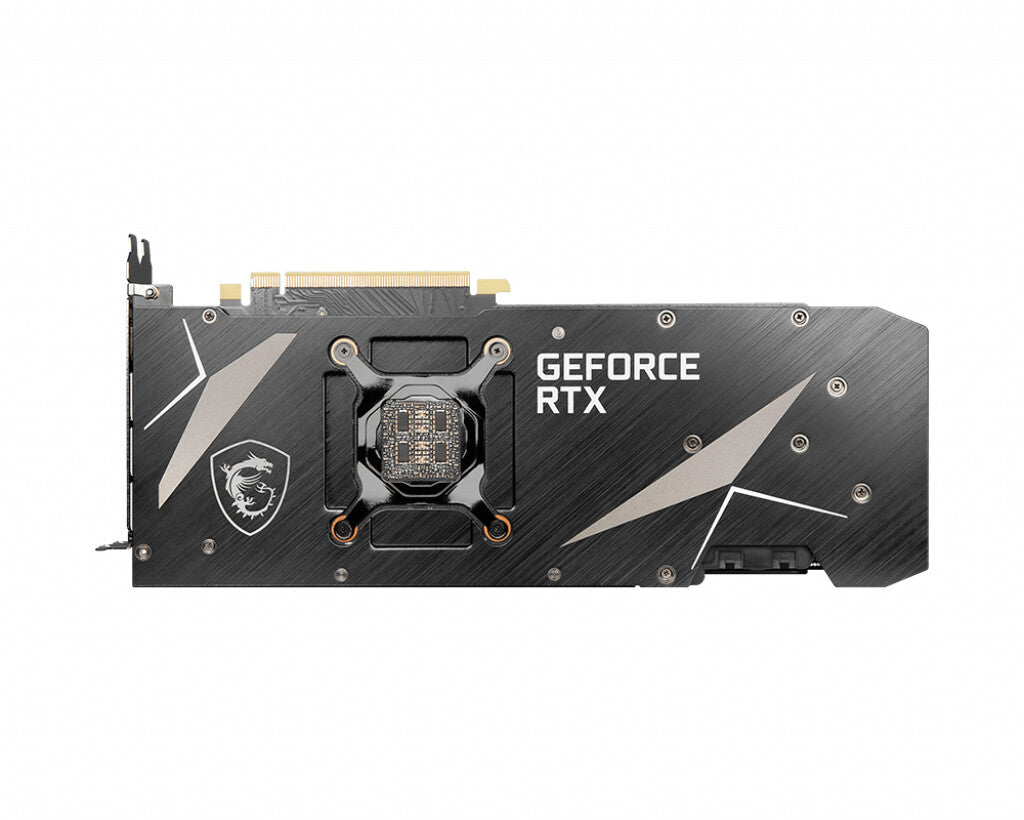

A sturdy brushed aluminum backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.
Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 3080 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
10240 |
| Processor boost clock speed |
1665 MHz |
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| Memory |
|---|
| Discrete graphics card memory |
12 GB |
| Graphics card memory type |
GDDR6X |
| Memory bus |
384 bit |
| Data transfer rate |
19 Gbit/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 4.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4a |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12.0 |
| OpenGL version |
4.6 |
| Virtual Reality (VR) ready |
Yes |
| HDCP |
Yes |
| Dual Link DVI |
No |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
MSI TORX Fan 3.0 |
| Number of fans |
3 fan(s) |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of slots |
2 |
| Product colour |
Grey |
| Power |
|---|
| Minimum system power supply |
750 W |
| Power consumption (typical) |
350 W |
| Supplementary power connectors |
2x 8-pin |
| Weight & dimensions |
|---|
| Weight |
1.38 kg |
| Length |
305 mm |
| Height |
120 mm |
| Depth |
57 mm |
| Packaging data |
|---|
| Package weight |
1.99 kg |
| Package type |
Box |
| General |
|---|
| Product family |
VENTUS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
