NVIDIA GeForce RTX 4070 Ti, 2625MHz, 12GB GDDR6X, 192 bit, PCI Express 4.0, 1 x HDMI (1.2a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 286W
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
Third-Gen RT Cores
Up to 2x ray tracing performance
REVOLUTIONARY
TRIPLE-FAN THERMAL
Three fans on a huge heatsink ensures a cool and quiet experience.
COREPIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
AIRFLOW CONTROL
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
2 Oz Copper
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Sheet-Metal Anti-Bending
A sheet-metal anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.

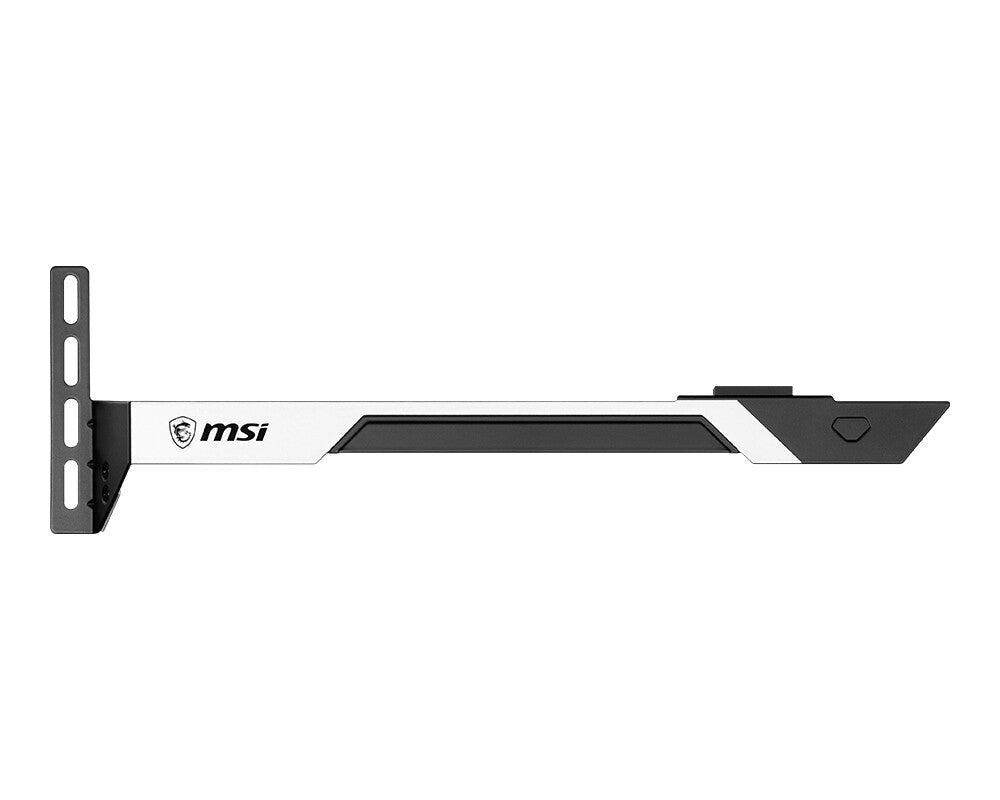

Support Bracket
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 4070 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
7680 |
| Processor frequency |
2625 MHz |
| Processor boost clock speed |
2610 MHz |
| Maximum displays per videocard |
4 |
| Memory |
|---|
| Discrete graphics card memory |
12 GB |
| Graphics card memory type |
GDDR6X |
| Memory bus |
192 bit |
| Memory bandwidth (max) |
21 GB/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 4.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
1.2a |
| DisplayPort version |
1.4a |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| Dual Link DVI |
No |
| NVIDIA G-SYNC |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
MSI TORX Fan 4.0 |
| Number of fans |
3 fan(s) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Illumination |
Yes |
| Product colour |
Black, Grey |
| Power |
|---|
| Minimum system power supply |
700 W |
| Power consumption (typical) |
286 W |
| Weight & dimensions |
|---|
| Weight |
308 g |
| Length |
308 mm |
| Height |
123 mm |
| Depth |
52 mm |
| Packaging data |
|---|
| Package weight |
1.72 kg |
| Package type |
Box |
| General |
|---|
| Product family |
VENTUS |
