NVIDIA® GeForce RTX™ 3090, 24GB GDDR6X, 384-bit, 1725 MHz, PCI Express® Gen 4, 3xDisplayPort, HDMI, 305x120x57 mm, 1387g
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
GEFORCE RTX™ 30 SERIES
THE ULTIMATE PLAY
GeForce RTX™ 30 Series GPUs deliver the ultimate performance for gamers and creators. They’re powered by Ampere—NVIDIA’s 2nd gen RTX architecture—with new RT Cores, Tensor Cores, and streaming multiprocessors for the most realistic ray-traced graphics and cutting-edge AI features.
RTX. IT’S ON.
ULTIMATE RAY TRACING AND AI
Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS. RTX. It’s On.
DLSS AI ACCELERATION
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.

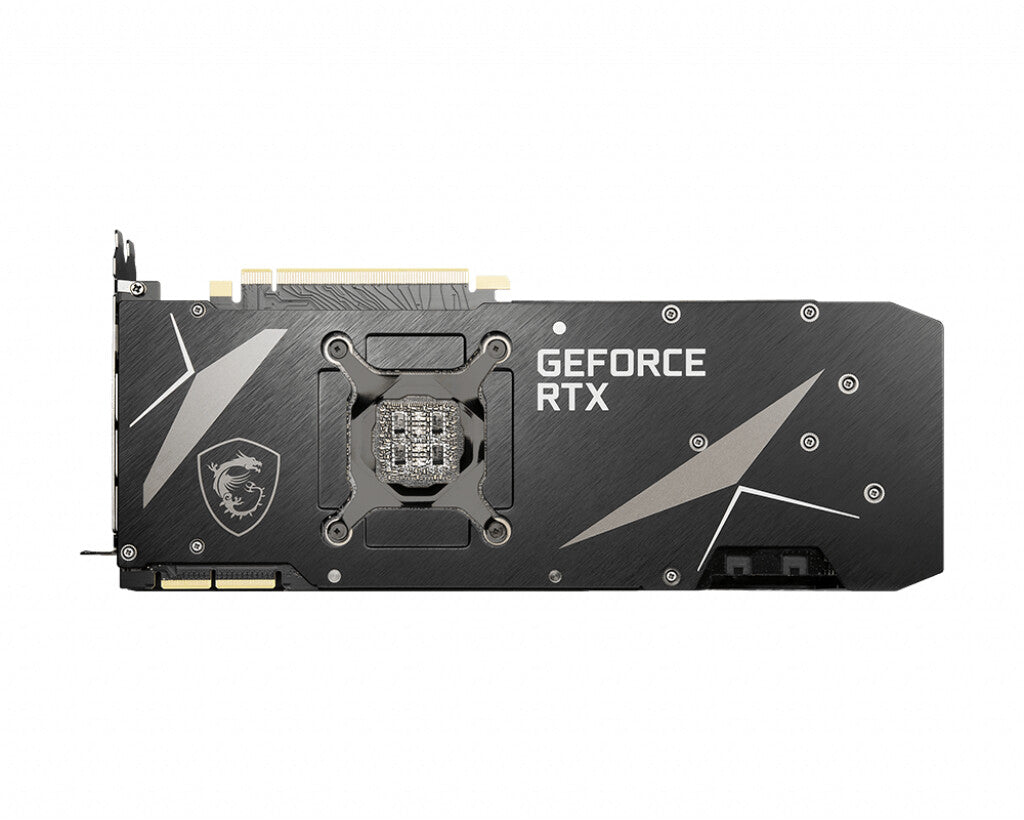

WE’VE GOT YOUR BACK
Heatpipes beneath the sturdy brushed metal backplate provide additional cooling for the memory modules on the rear of the PCB.
TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning. Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
Chillingly Silent
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
CORE PIPE
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
THERMAL PADDING
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.
BUILT STRONG
Specially designed Anti-Bending brackets reinforce the card to resist sagging, bending, and twisting.

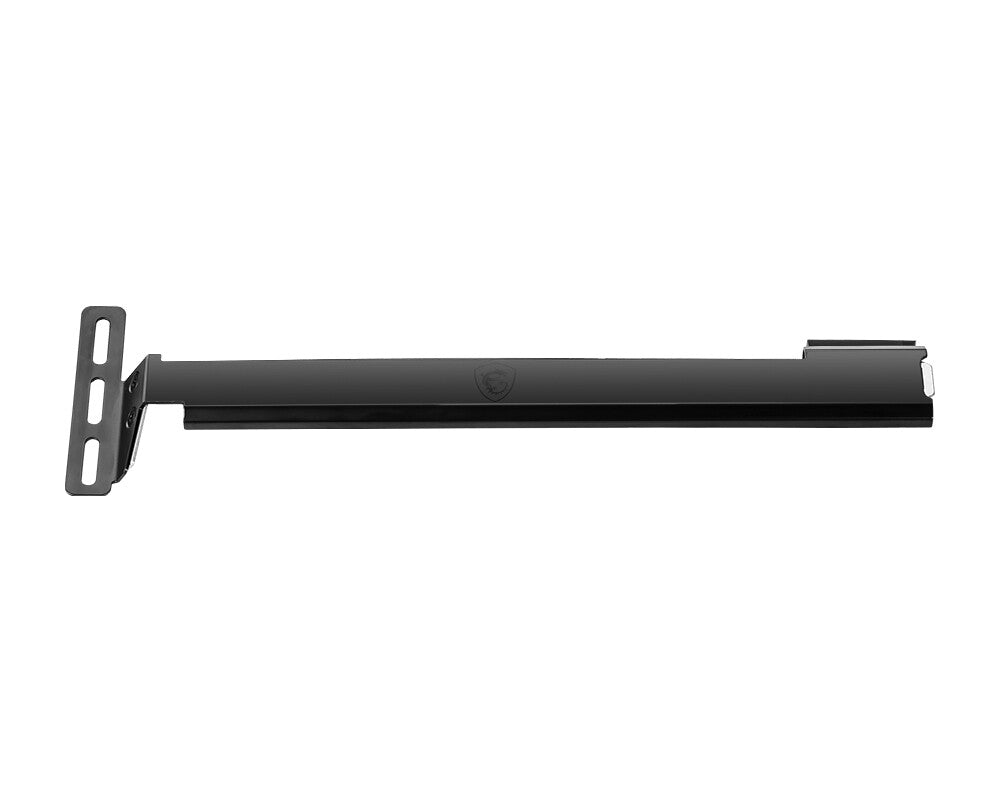

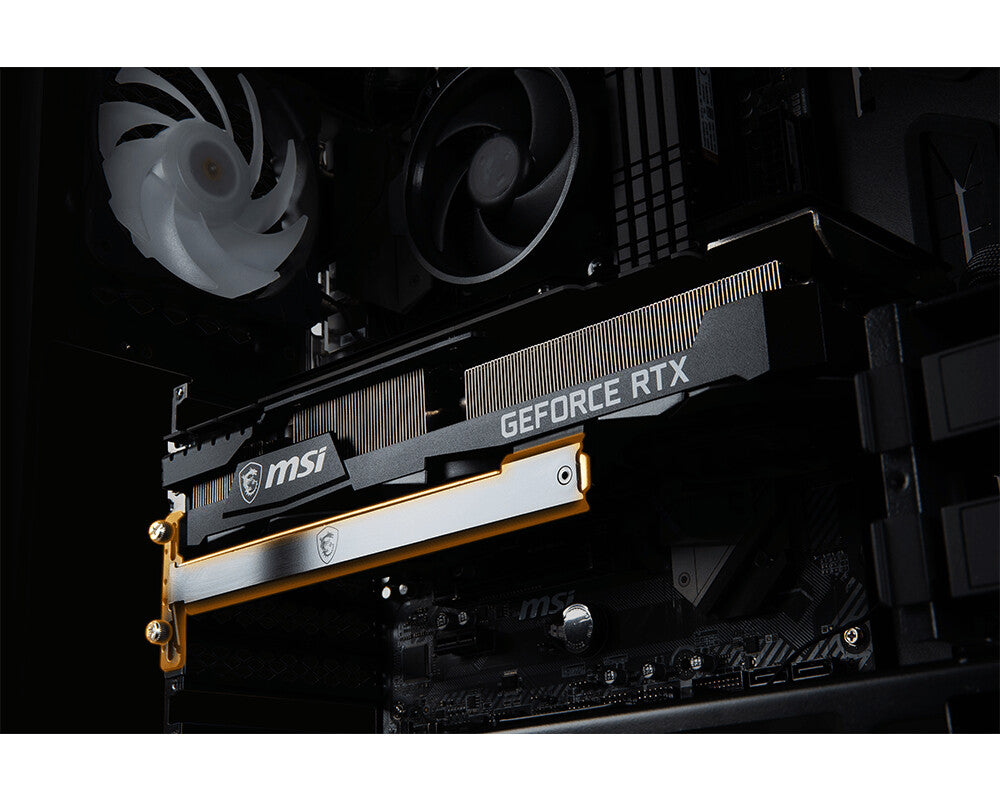

SUPPORT BRACKET
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Bringing It All Together
MSI's exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
GeForce RTX™ 3090 VENTUS 3X 24G OC
The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It's powered by Ampere—NVIDIA's 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 3090 |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
10496 |
| Processor frequency |
1725 MHz |
| Maximum displays per videocard |
4 |
| FireStream |
No |
| Parallel processing technology support |
NVLink |
| Memory |
|---|
| Discrete graphics card memory |
24 GB |
| Graphics card memory type |
GDDR6X |
| Memory bus |
384 bit |
| Data transfer rate |
19.5 Gbit/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 4.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4a |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12.0 |
| OpenGL version |
4.6 |
| Virtual Reality (VR) ready |
Yes |
| HDCP |
Yes |
| Dual Link DVI |
No |
| NVIDIA G-SYNC |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
MSI TORX Fan 3.0 |
| Number of fans |
3 fan(s) |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| Power |
|---|
| Minimum system power supply |
750 W |
| Power consumption (typical) |
350 W |
| Supplementary power connectors |
2x 8-pin |
| Weight & dimensions |
|---|
| Weight |
1.39 kg |
| Length |
305 mm |
| Height |
120 mm |
| Depth |
57 mm |
| Packaging data |
|---|
| Package type |
Box |
| General |
|---|
| Product family |
VENTUS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
