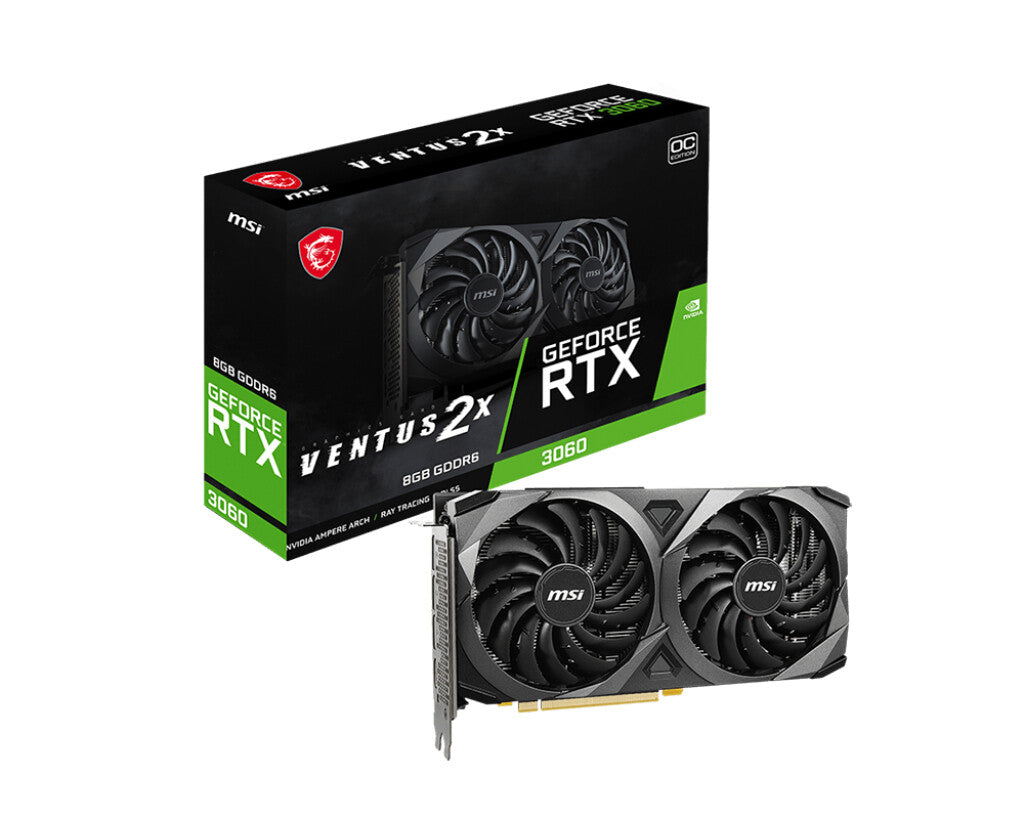

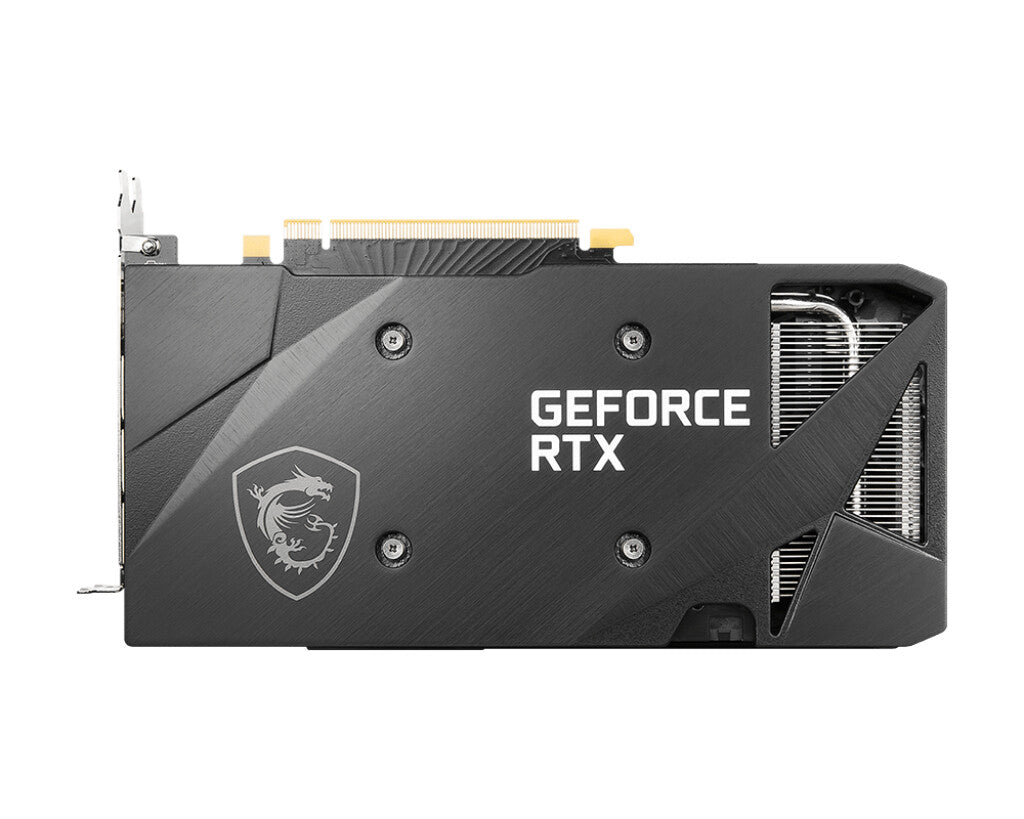

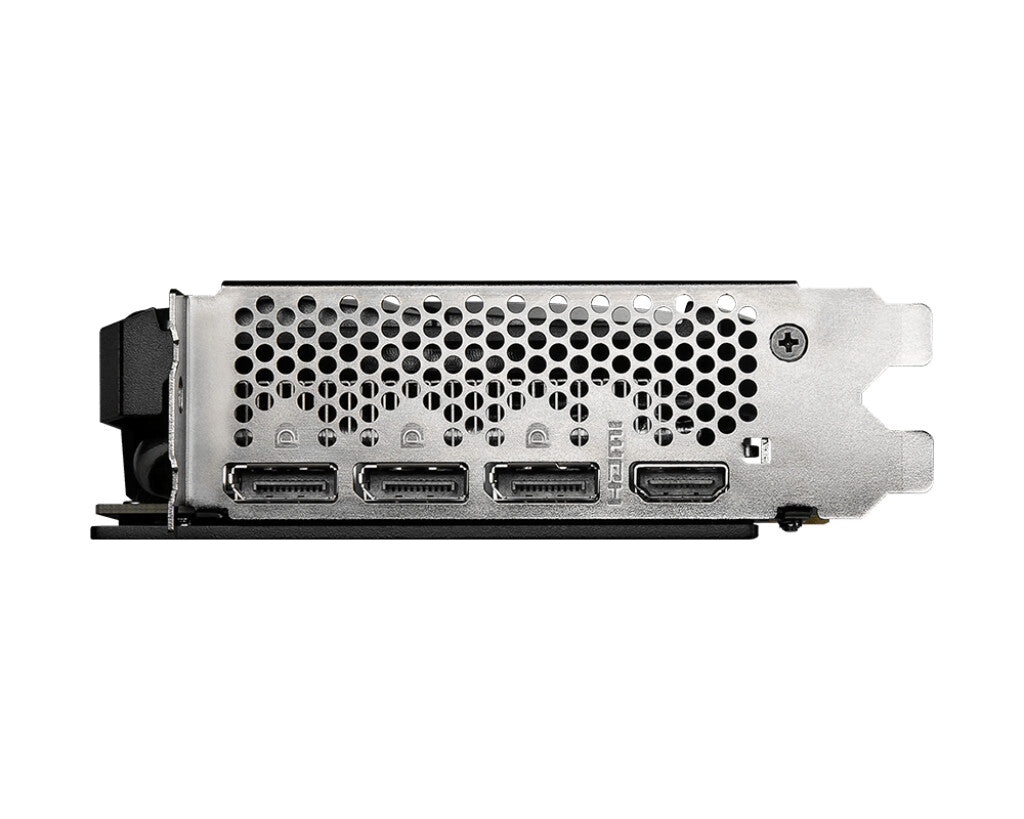

NVIDIA GeForce RTX 3060, 8GB GDDR6, 128 bit, PCI Express x4, 1 x HDMI (2.1), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, VR, 170W
The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.

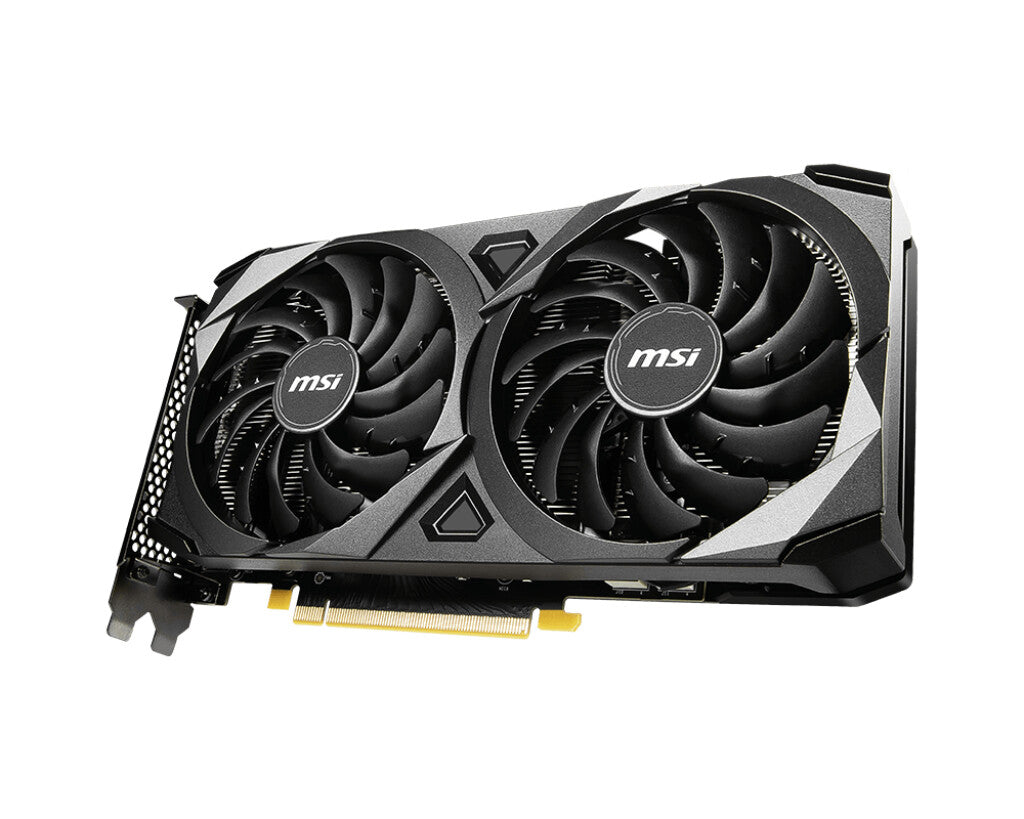

Dual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 3060 |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
3584 |
| Processor boost clock speed |
1807 MHz |
| Memory |
|---|
| Discrete graphics card memory |
8 GB |
| Graphics card memory type |
GDDR6 |
| Memory bus |
128 bit |
| Memory bandwidth (max) |
15 GB/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express x4 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4a |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12 Ultimate |
| Shader model version |
No |
| OpenGL version |
4.6 |
| Virtual Reality (VR) ready |
Yes |
| HDCP |
Yes |
| NVIDIA G-SYNC |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
MSI TORX Fan 3.0 |
| Number of fans |
2 fan(s) |
| Power |
|---|
| Minimum system power supply |
550 W |
| Power consumption (typical) |
170 W |
| Supplementary power connectors |
1x 8-pin |
| Weight & dimensions |
|---|
| Weight |
675 g |
| Length |
235 mm |
| Height |
124 mm |
| Depth |
42 mm |
| Packaging data |
|---|
| Package weight |
1.03 kg |
| Package type |
Box |
| General |
|---|
| Product family |
VENTUS |
