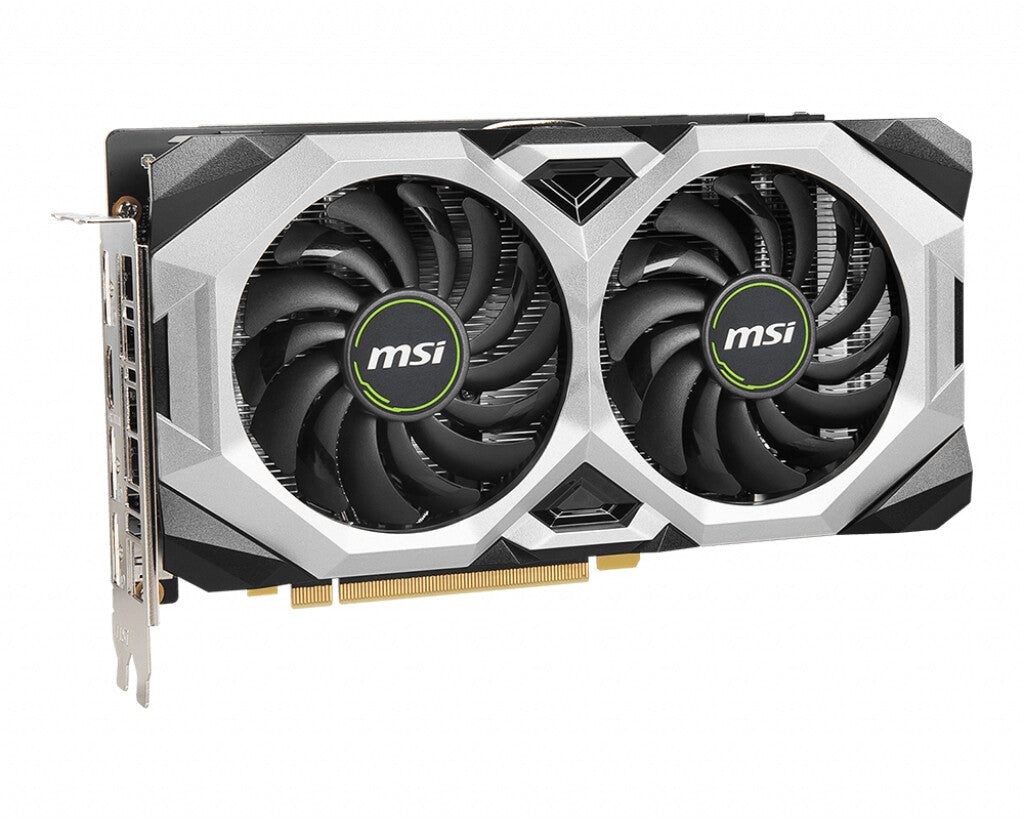

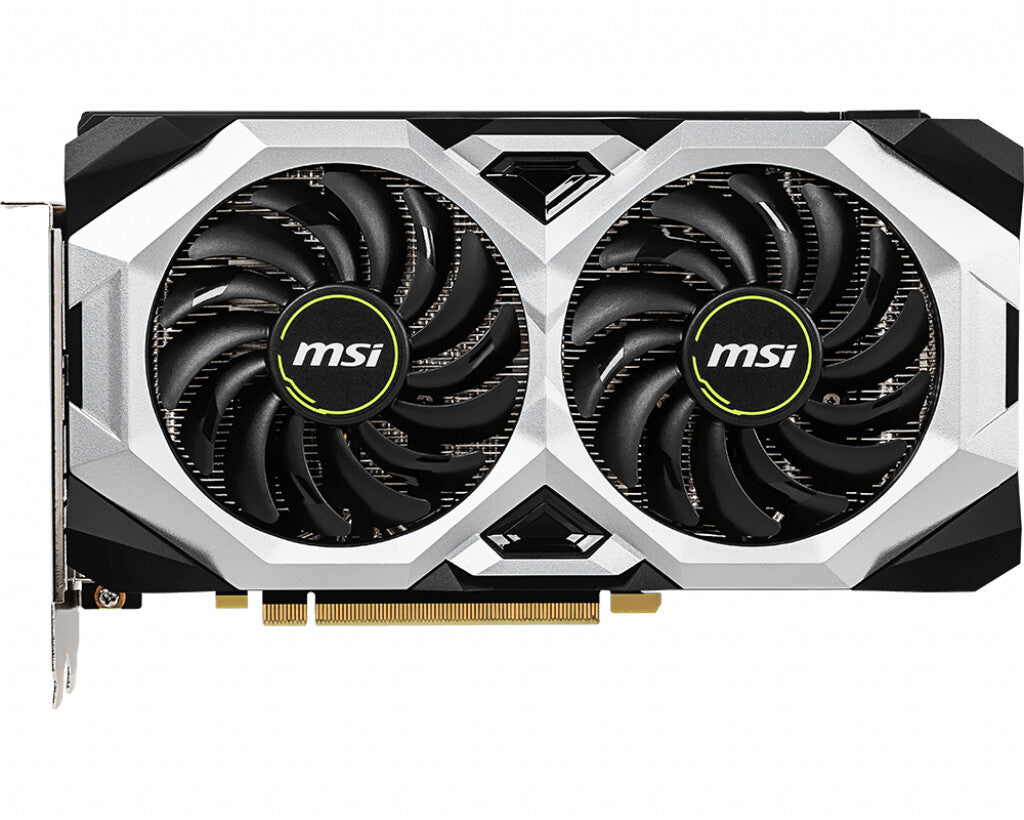

NVIDIA GeForce RTX 2060, PCI Express x16 3.0, 12 GB GDDR6, 192-bit, HDMI 2.0b, 3 x DisplayPort 1.4a, 184 W, 1 x 8-pin
NVIDIA Turing™ Architecture
This revolutionary architecture, combined with our all-new GeForce RTX™ platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You’ve never created and enjoyed games like this before.
Real-Time Ray Tracing In Games
Ray tracing is the definitive solution for lifelike lighting, reflections, and shadows, offering a level of realism far beyond what’s possible using traditional rendering techniques. NVIDIA Turing™ is the first GPU capable of real-time ray tracing.
PERFORMANCE
GeForce RTX™ gaming GPUs come loaded with next-generation GDDR6 memory, support for DirectX 12 features, and more. This is graphics reinvented.
Premium Design
A fresh new dual fan design, VENTUS proudly displays its industrial shapes in neutral colors to fit any build.
TORX FAN 2.0
Using two of the award-winning TORX Fans 2.0, MSI VENTUS graphics cards provide years of top-notch cooling performance.
DIRECT CONTACT HEAT PIPES
Up to 6mm thick copper heat pipes at the bottom maximize heat transfer.
Premium Thermal Compound
Every detail counts when it comes to creating the ultimate thermal design, which is why VENTUS uses a premium thermal compound to make sure it outlives the competition.
Amplified PCB
Using thicker layers of copper enables faster and cleaner signal transmission for sustained performance.
WE'VE GOT YOUR BACK

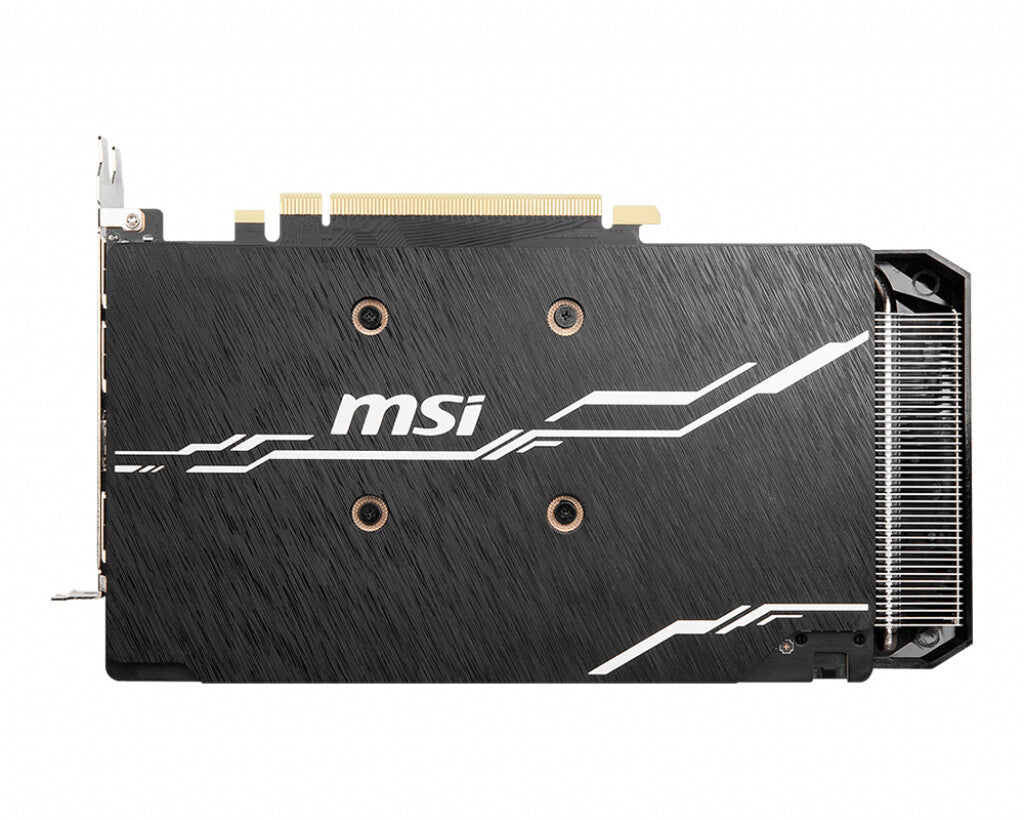

A sturdy backplate helps to strengthen the graphics card and complements the design to look even better.
THERMAL PADDING
Ample amounts of thermal pads are used to allow various components to transfer heat to the heatsink for better cooling.
The Future of Gaming
The smoothest, fastest and most exciting gaming experience ever by eliminating screen tearing, display stutter and input lag.
Ultra-high resolution (UHD) delivers 4x the resolution of 1080p content, enabling much sharper and crisper images with delicate details during gaming.
High Dynamic Range (HDR) enhances your gaming world with higher contrast and brighter colors than you've ever seen before.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 2060 |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
2176 |
| Processor boost clock speed |
1680 MHz |
| Maximum displays per videocard |
4 |
| Memory |
|---|
| Discrete graphics card memory |
12 GB |
| Graphics card memory type |
GDDR6 |
| Memory bus |
192 bit |
| Data transfer rate |
14 Gbit/s |

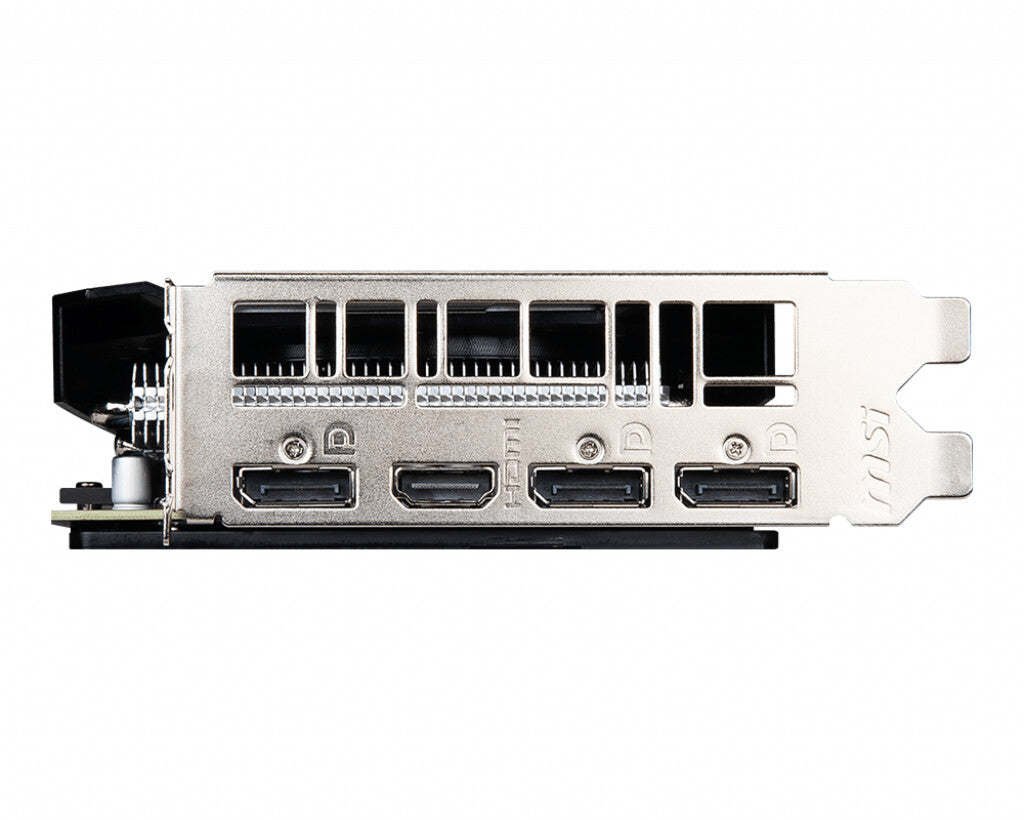

| Ports & interfaces |
|---|
| Interface type |
PCI Express x16 3.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.0b |
| DisplayPort version |
1.4a |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12.0 |
| OpenGL version |
4.6 |
| Virtual Reality (VR) ready |
Yes |
| HDCP |
Yes |
| Dual Link DVI |
No |
| NVIDIA G-SYNC |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
MSI TORX Fan 2.0 |
| Number of fans |
2 fan(s) |
| Number of slots |
2 |
| Product colour |
Black, Silver |
| Power |
|---|
| Minimum system power supply |
500 W |
| Power consumption (typical) |
184 W |
| Supplementary power connectors |
1x 8-pin |
| Weight & dimensions |
|---|
| Weight |
706 g |
| Length |
231 mm |
| Height |
128 mm |
| Depth |
42 mm |
| Packaging data |
|---|
| Package weight |
1.16 kg |
| Package type |
Box |
| General |
|---|
| Product family |
VENTUS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
