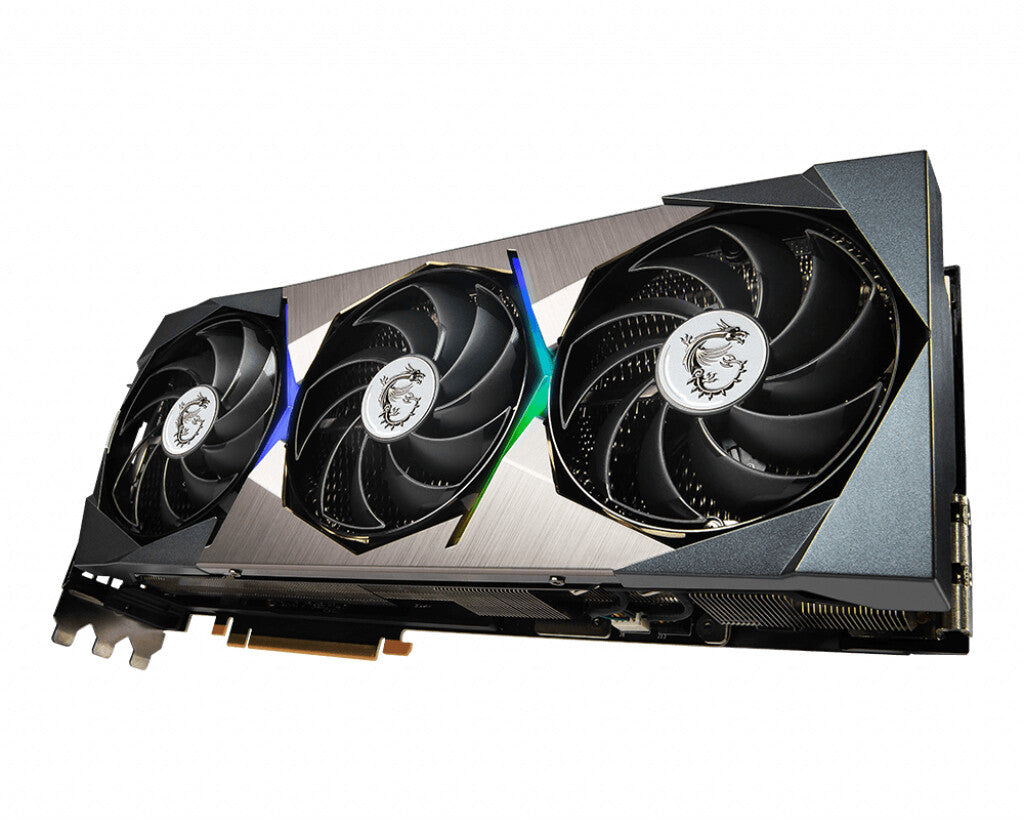

NVIDIA GeForce RTX 3090 Ti, 24GB GDDR6X, 384 bit, PCI Express 4.0, 1 x HDMI (2.1), 3 x DP (1.4a), CUDA, DirectX 12.0, OpenGL 4.6, NVLink, VR, 450W
CHISELED TO PERFECTION
Built upon two decades of award-winning graphics cards, the time to evolve beyond Gaming has come. A new design philosophy takes shape to pave the way for a new prestigious series.

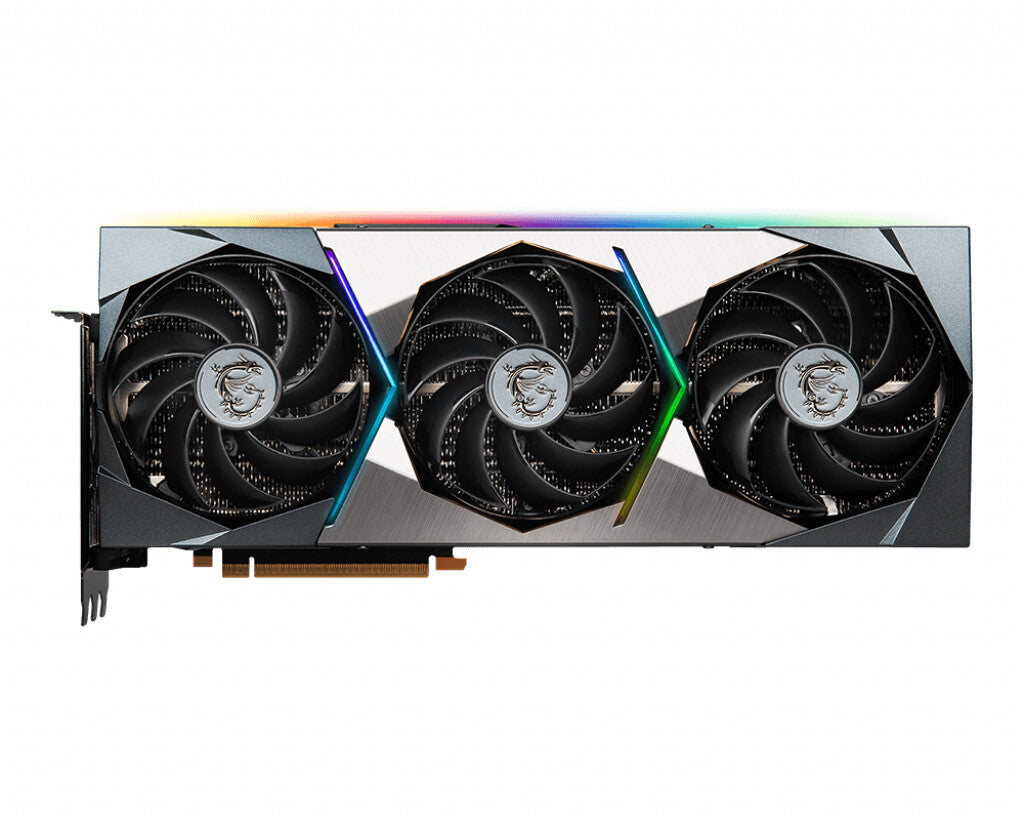

TORX FAN 4.0 is a masterpiece built on teamwork, with pairs of fan blades linked together with a revolutionary ring design to focus airflow and air pressure into the heatsink.
COPPER BASEPLATE FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heatpipes. This widening of the thermal transfer systems with highly efficient mechanisms starting at the base improves overall efficiency.
CORE PIPES KEEPING THE CORE COOL
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
AIRFLOW CONTROL
Don’t sweat it. Airflow Control improves airflow dynamics through the heatsink for improved thermals and quieter acoustics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
UTTERLY UNSTOPPABLE
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions in zero noise.
THE FINISHING TOUCH
An abundance of thermal pads provide additional heat dissipation for board components.
COOL ALL AROUND

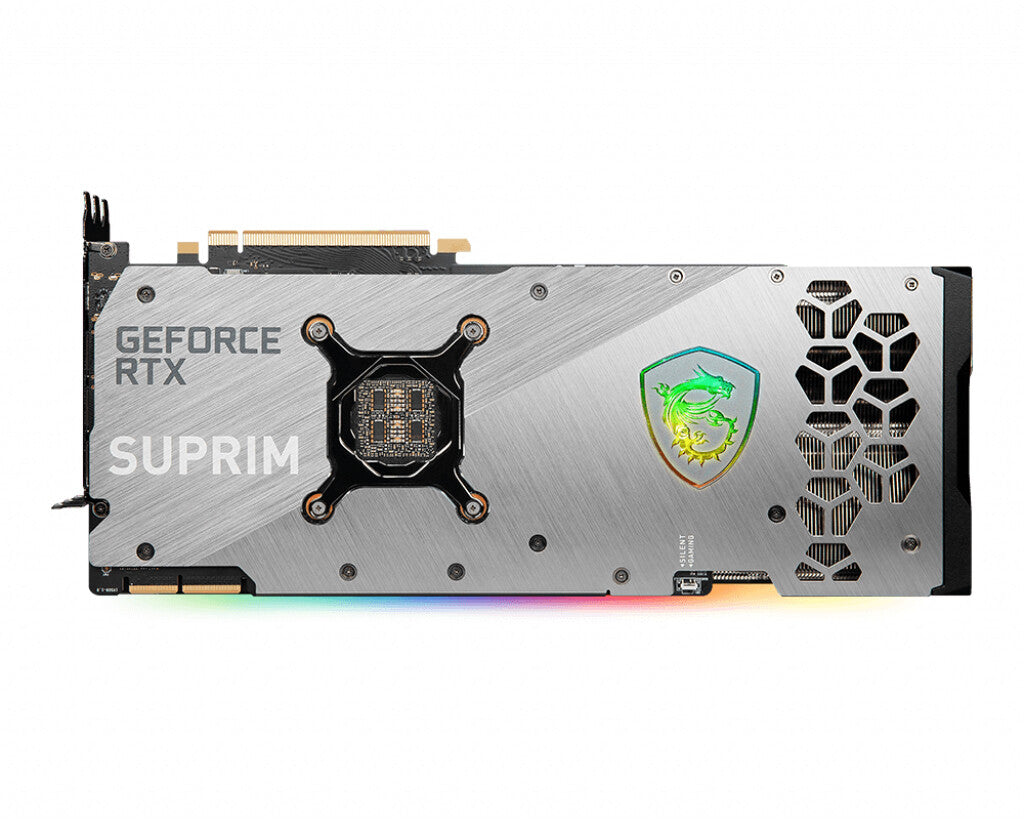

There's more than meets the eye. Thermal pads beneath the sturdy brushed-finish metal backplate provide additional cooling.
Go Big or Go Stealthy
Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
Hardened Defenses
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Upgraded Foundations
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and high-performance reliability.
ANTI BENDING DEFYING GRAVITY
An enclosed rigid metal anti-bending plate provides additional strength to ensure structural integrity with the enlarged heatsink.
UNYIELDING SUPPORT

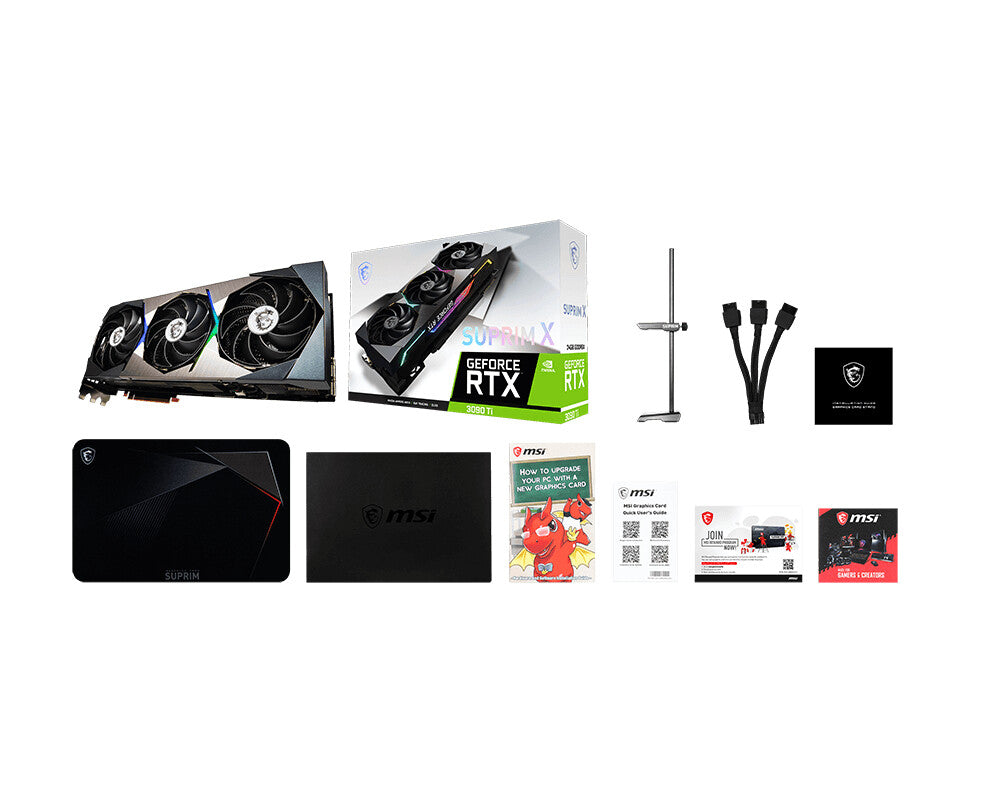

A bundled support holder provides additional graphics card reinforcement.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 3090 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
10752 |
| Processor boost clock speed |
1860 MHz |
| Maximum displays per videocard |
4 |
| FireStream |
No |
| Parallel processing technology support |
NVLink |
| Memory |
|---|
| Discrete graphics card memory |
24 GB |
| Graphics card memory type |
GDDR6X |
| Memory bus |
384 bit |

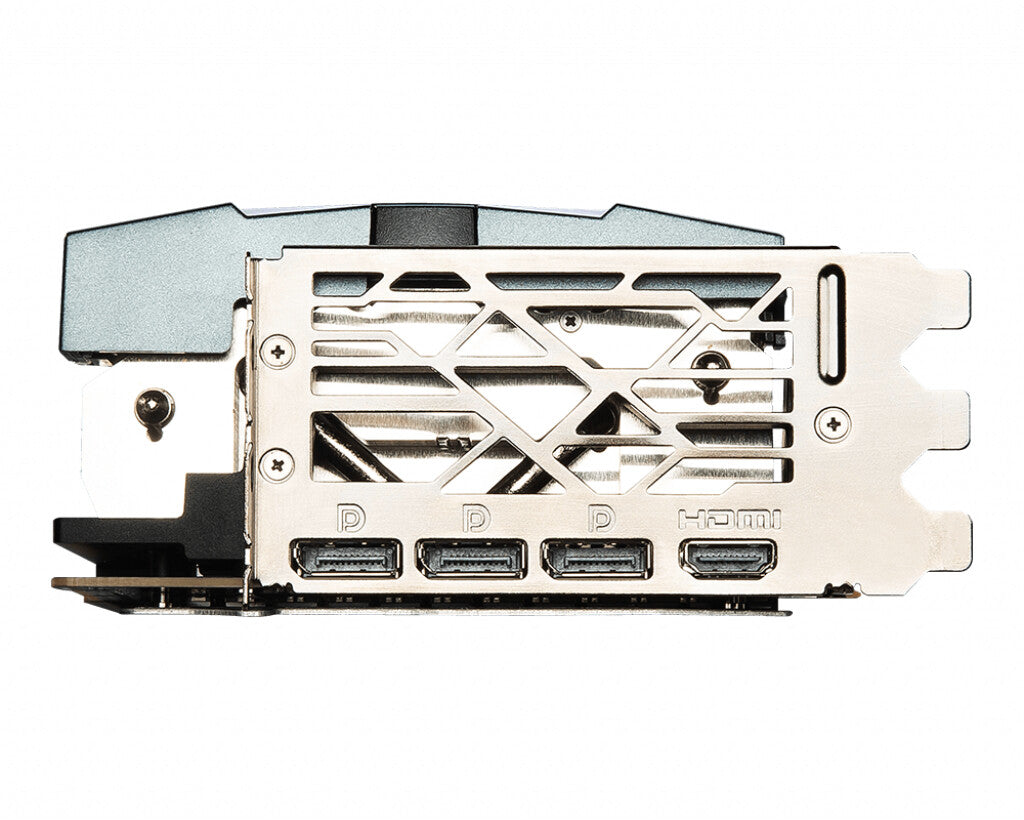

| Ports & interfaces |
|---|
| Interface type |
PCI Express 4.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4a |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12.0 |
| OpenGL version |
4.6 |
| Virtual Reality (VR) ready |
Yes |
| HDCP |
Yes |
| Dual Link DVI |
No |
| NVIDIA G-SYNC |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
MSI TORX Fan 4.0 |
| Number of fans |
3 fan(s) |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
Blue, Grey, White |
| Power |
|---|
| Minimum system power supply |
850 W |
| Power consumption (typical) |
450 W |
| Supplementary power connectors |
1x 16-pin |
| Weight & dimensions |
|---|
| Weight |
2.15 kg |
| Length |
338 mm |
| Height |
140 mm |
| Depth |
71 mm |
| Packaging data |
|---|
| Package type |
Box |
| General |
|---|
| Product family |
SUPRIM |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
