Socket AM5, AMD B840 Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX

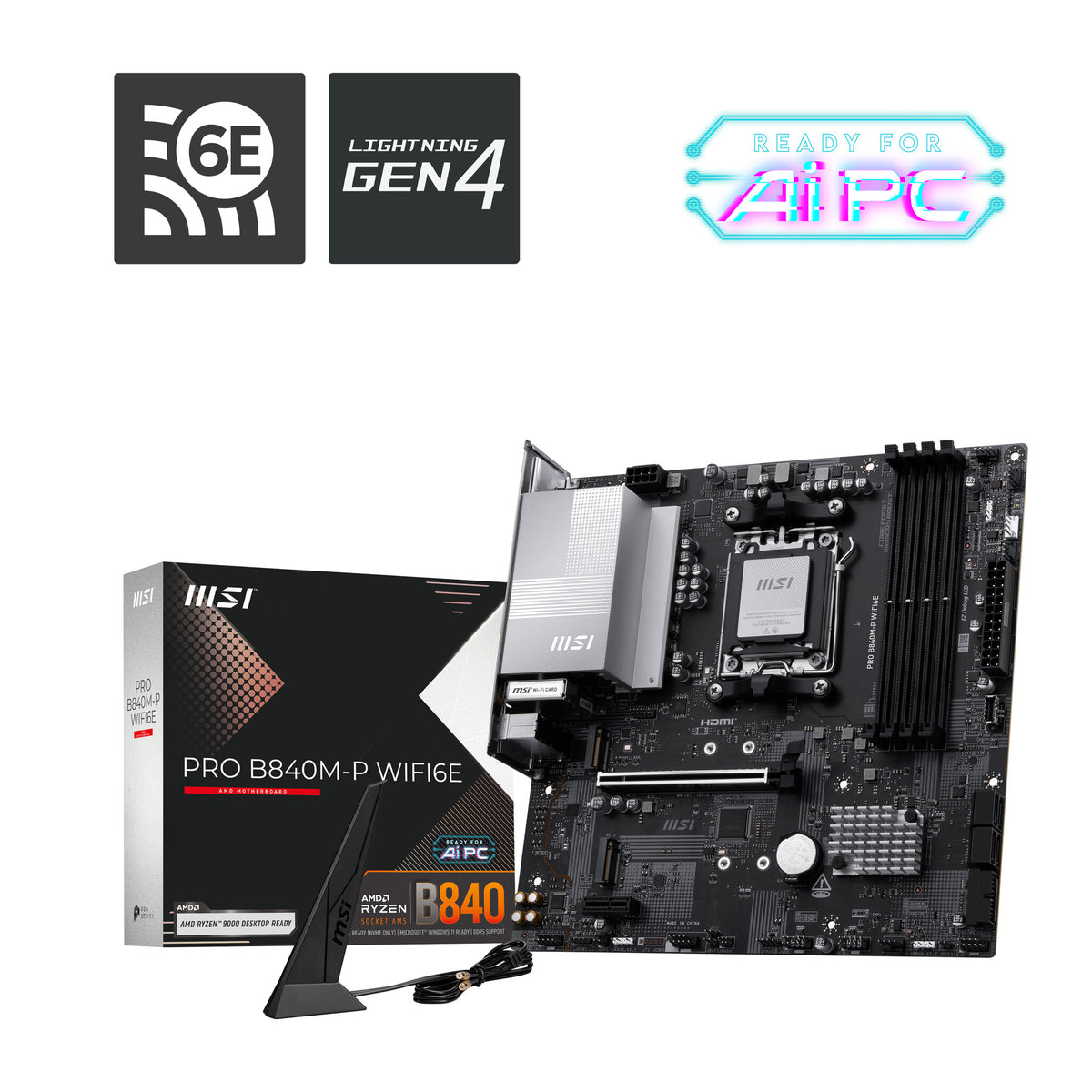

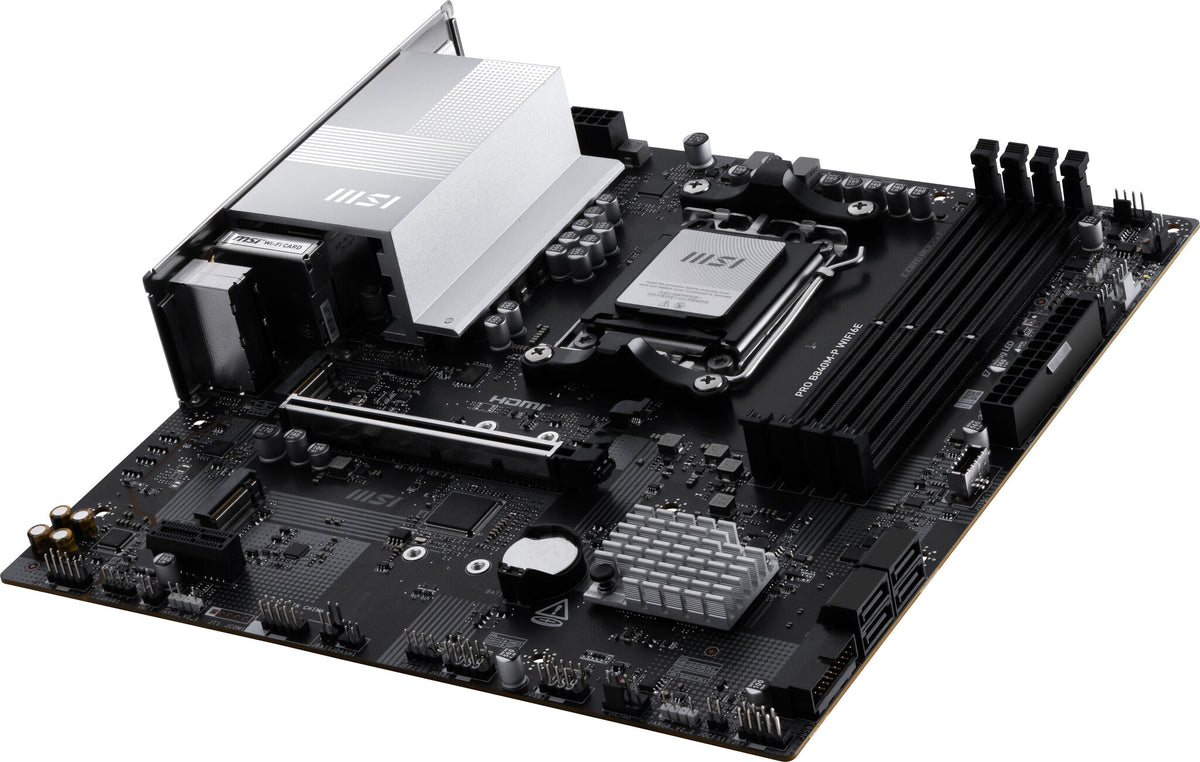

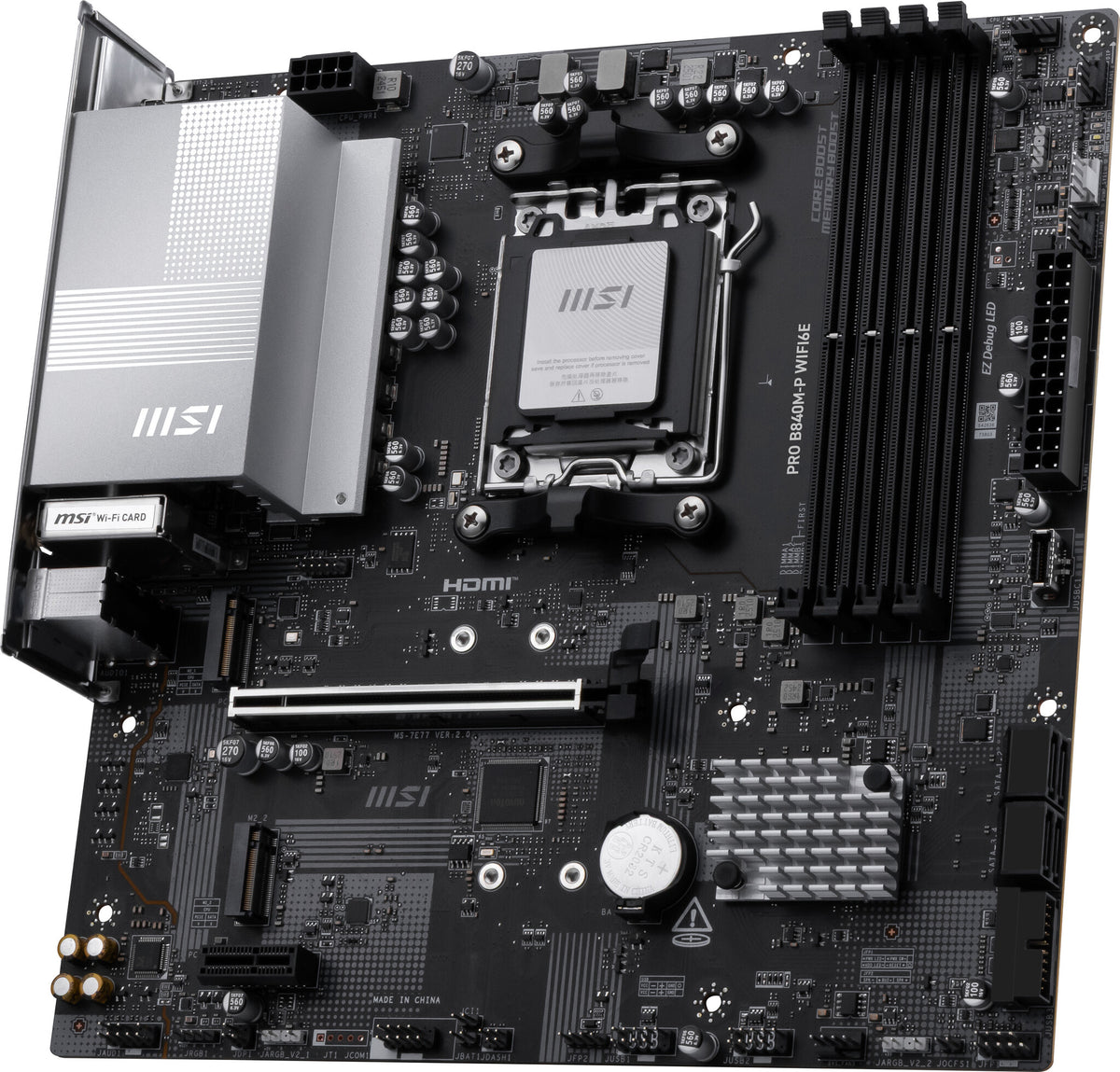

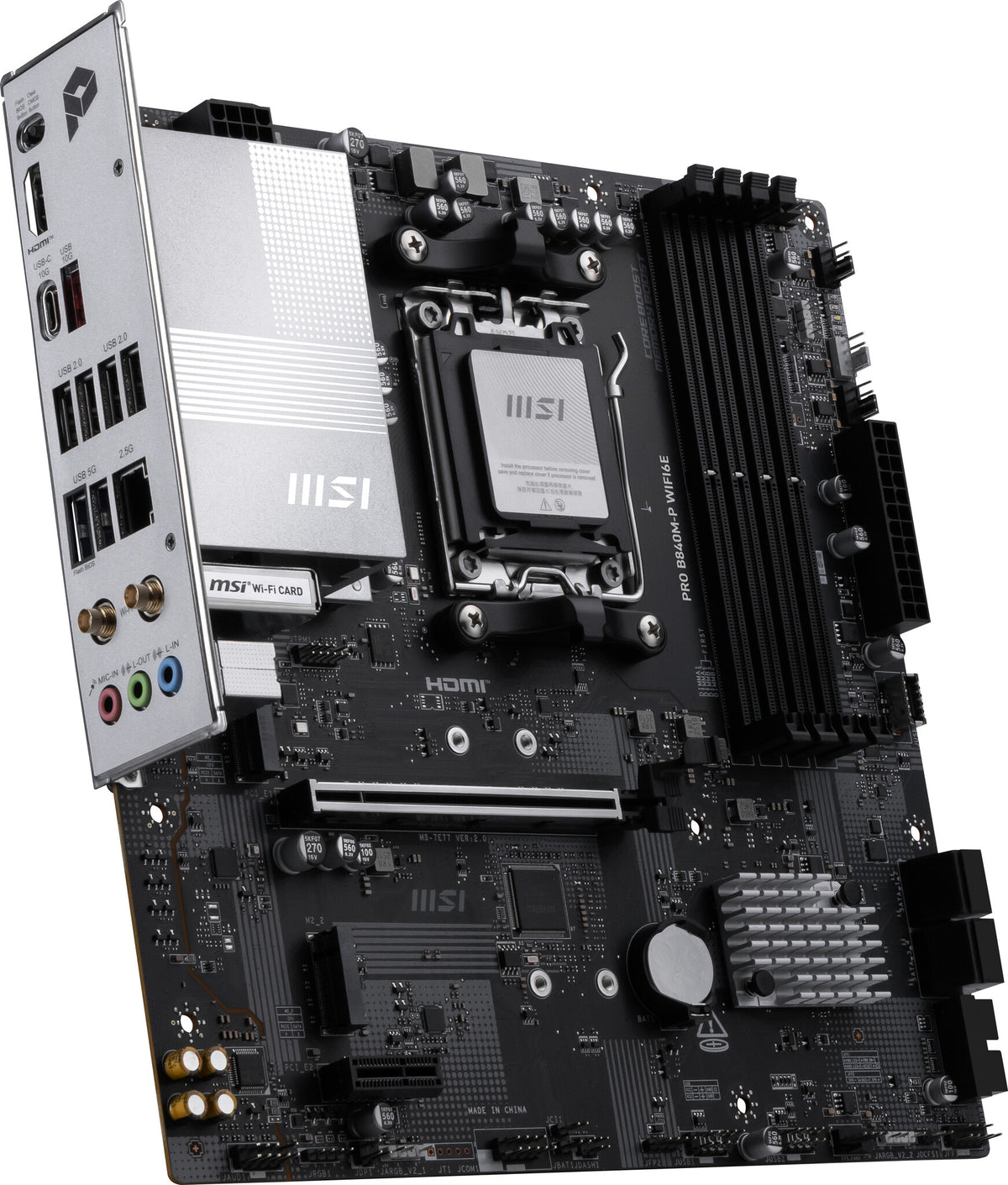

PRO B840M-P WIFI6E
PRO B840M-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 4.0 M.2, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B840M-P WIFI6E is ready for the challenge of heavy-loading tasks.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets |
Socket AM5 |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
4800,5600,8000 MHz |
| Supported memory clock speed (max) |
8000 MHz |
| Maximum internal memory |
256 GB |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, Micro SATA III |
| Number of storage drives supported |
6 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 10 |
| Graphics |
|---|
| On-board graphics card |
No |
| Internal I/O |
|---|
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
4 |
| Total number of SATA connectors |
4 |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
5 |
| Number of water pump connectors |
1 |
| RGB LED pin header |
Yes |
| Number of RGB LED pin headers |
3 |

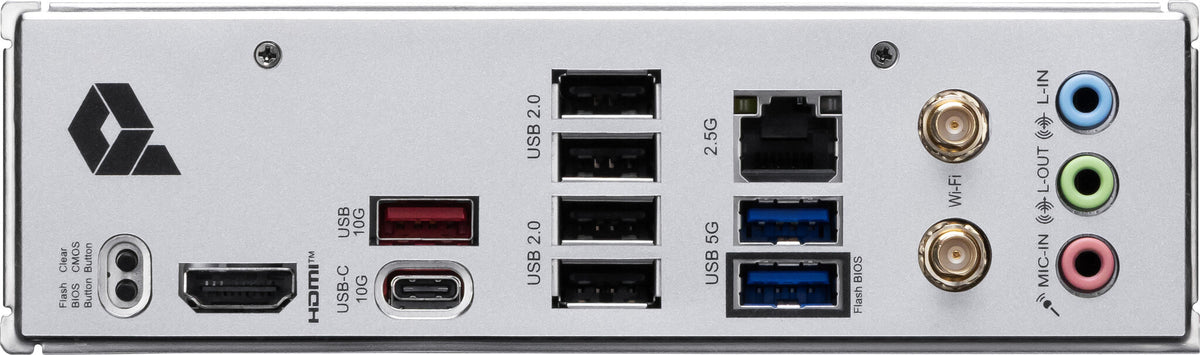

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| LAN controller |
Realtek RTL8125D |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD B840 |
| Audio chip |
Realtek ALC897 |
| Audio output channels |
7.1 channels |
| Product colour |
Black |
| Windows operating systems supported |
Windows 11 x64 |
| Expansion slots |
|---|
| PCI Express x16 slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
2 |
| 1st M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| ACPI version |
6.5 |
| System Management BIOS (SMBIOS) version |
3.7 |
| Weight & dimensions |
|---|
| Width |
243.8 mm |
| Depth |
243.8 mm |
