Supports AMD Ryzen 7000 , AM5, 2x DDR5 96GB Max, 1DPC 1R 6800MHz Max, 1DPC 2R 6000MHz Max, Dual-Channel, non-ECC, un-buffered, AMD EXPO, 1x HDMI 2.1, 4k 60Hz, 1x VGA, 2048x1536 50Hz, 1x PCI-E x16 4.0, 1x PCI-E x1 3.0, 1x M.2, 4x SATA 6G, 6x USB 2.0, 6x USB 3.2 Gen.1 Type-A, Realtek ALC897, 7.1-Channel, High Definition Audio, 1x ATX_PWR, 1xCPU_PWR, 1x CPU Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 1x RGB LED, 1x TPM 2.0, 4x USB 2.0, 2x USB 3.2 Gen1 Type A,4x EZ Debug LED, mATX 211mmx243.84mm
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
Windows 11 certified
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
XL Clip
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ debug LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
Keep Out Zone
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
Doube ESD Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!
True Color
Optimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.
User Scenario
One click for setting your computer, even customize own profile as your preference.
Hardware Monitoring
Get immediate access to your critical hardware information in real-time.
Profile Settings
Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.
Fan Center
Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.
System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
EXPO(EXTENDED PROFILES FOR OVERCLOCKING)
Choose from a preset EXPO profile and automatically overclock compatible DDR memory.
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
SECURE BOOT
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
RESIZABLE BAR
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
RGB
Supports 12V RGB Devices
Ambient Link
Synchronize lighting theme with compatible ligthting devices

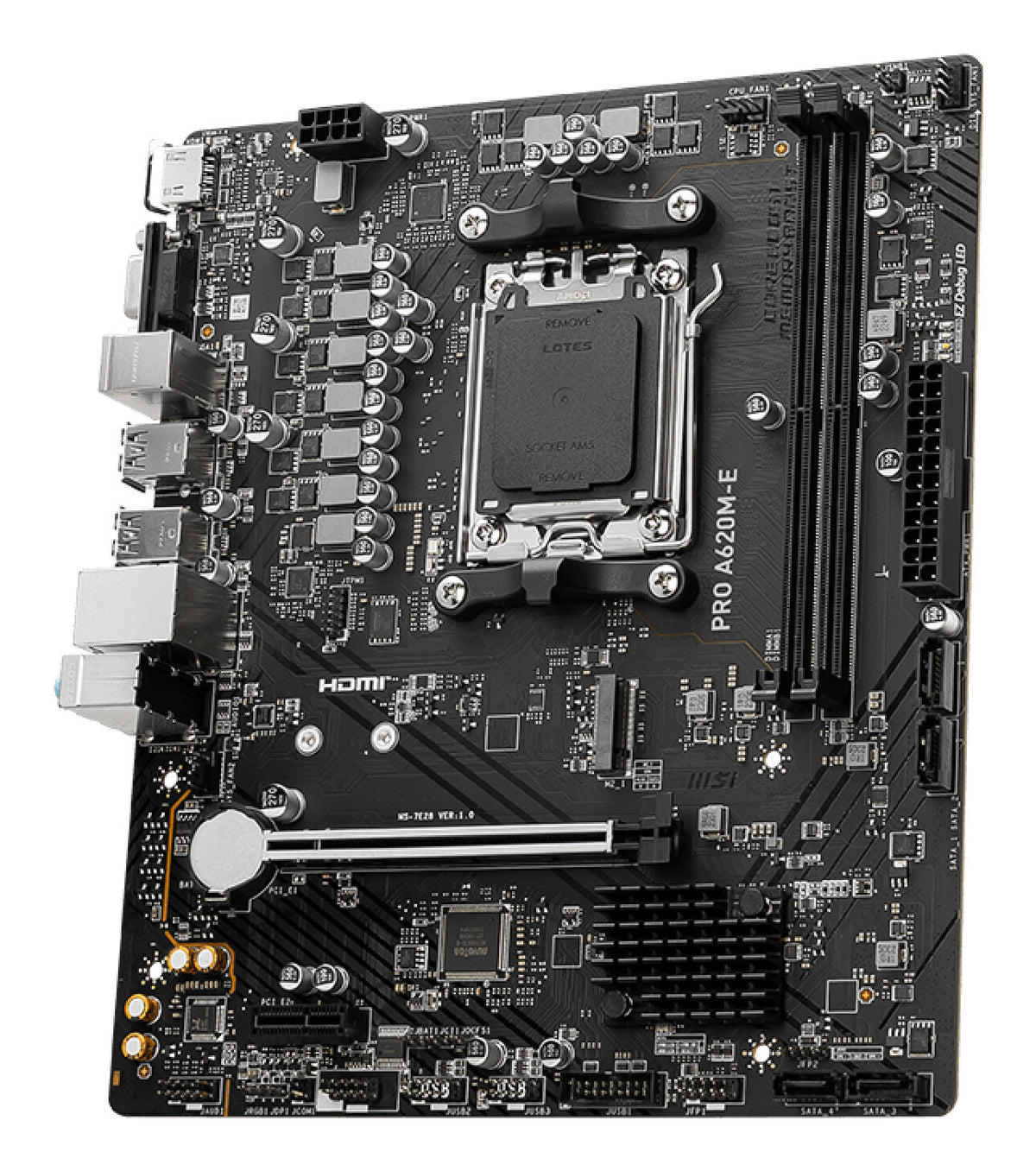

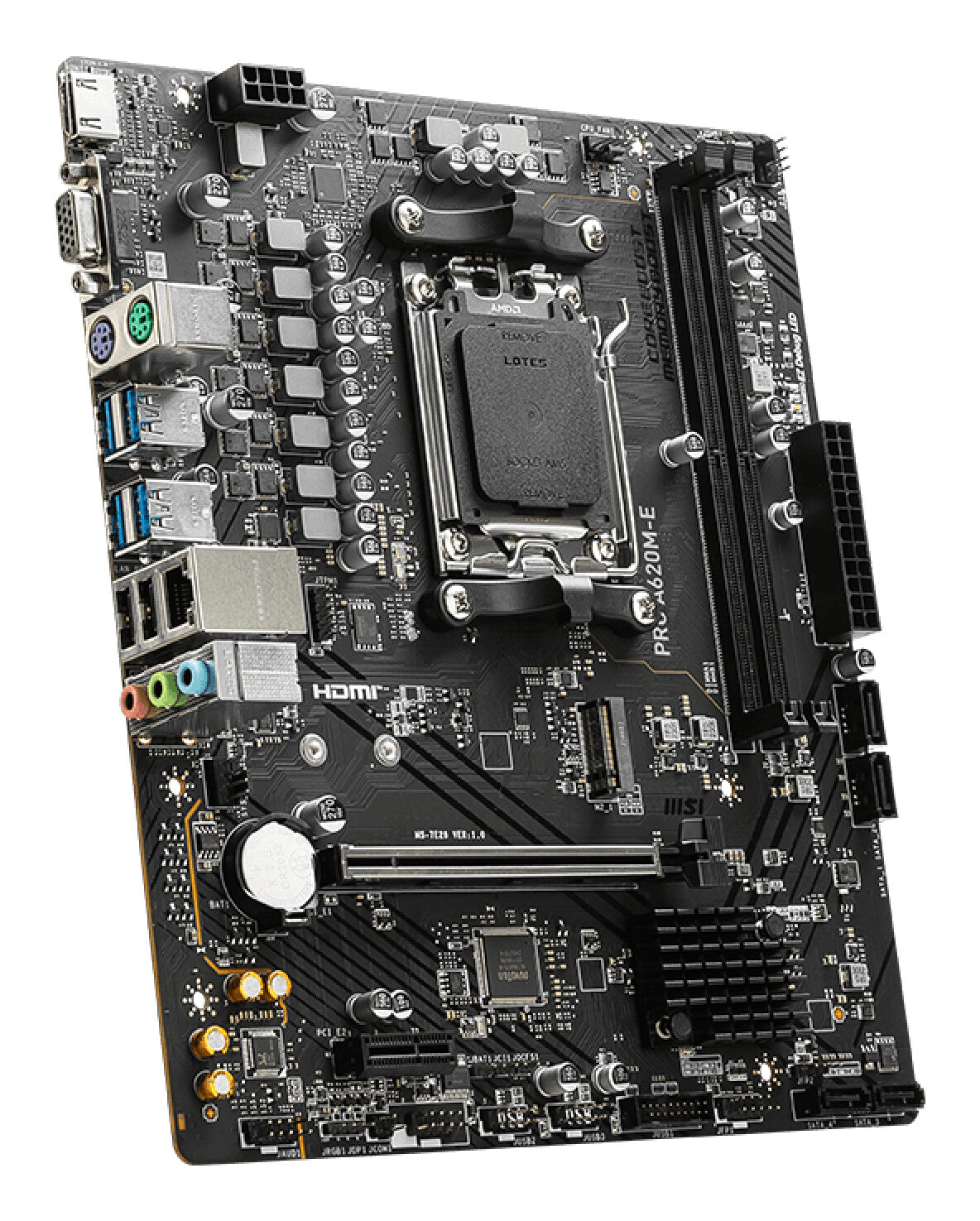

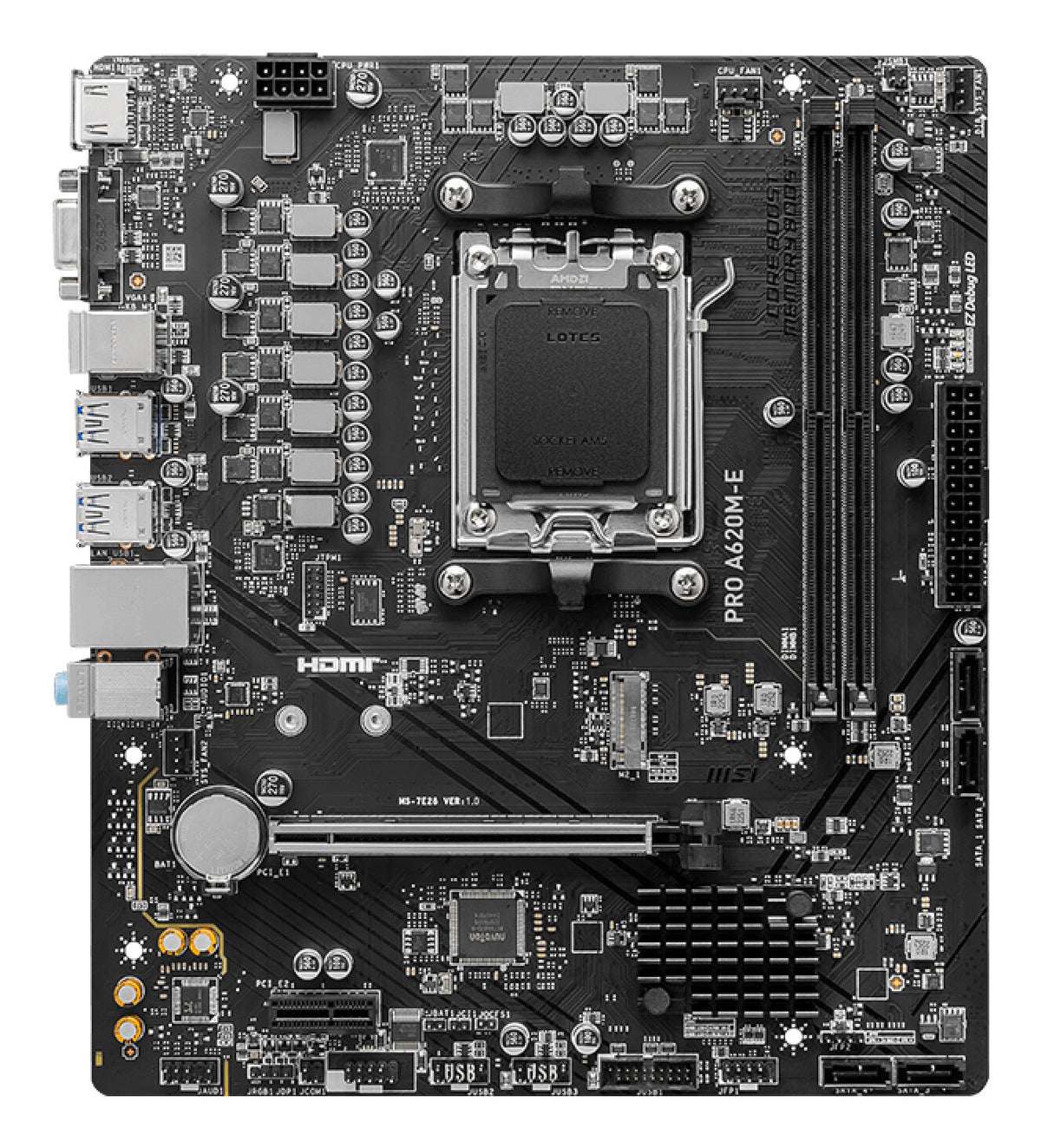

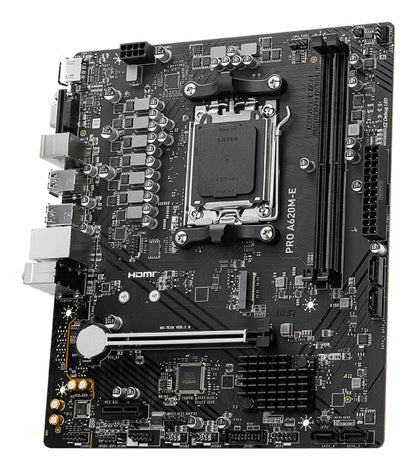

PRO A620M-E
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen™ 7 |
| AMD Opteron series |
7000 |
| Maximum number of SMP processors |
1 |
| Supported processor sockets |
Socket AM5 |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
6000 MHz |
| Maximum internal memory |
96 GB |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, PCI Express, SATA |
| Number of storage drives supported |
5 |
| RAID support |
Yes |
| RAID levels |
0, 1, 10 |
| Graphics |
|---|
| On-board graphics card |
No |
| Maximum resolution |
3840 x 2160 pixels |
| Discrete graphics support |
Yes |
| Internal I/O |
|---|
| USB 2.0 connectors |
6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
6 |
| Number of SATA III connectors |
4 |
| Total number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Yes |
| Power fan connector |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
1 |
| Chassis intrusion connector |
Yes |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |

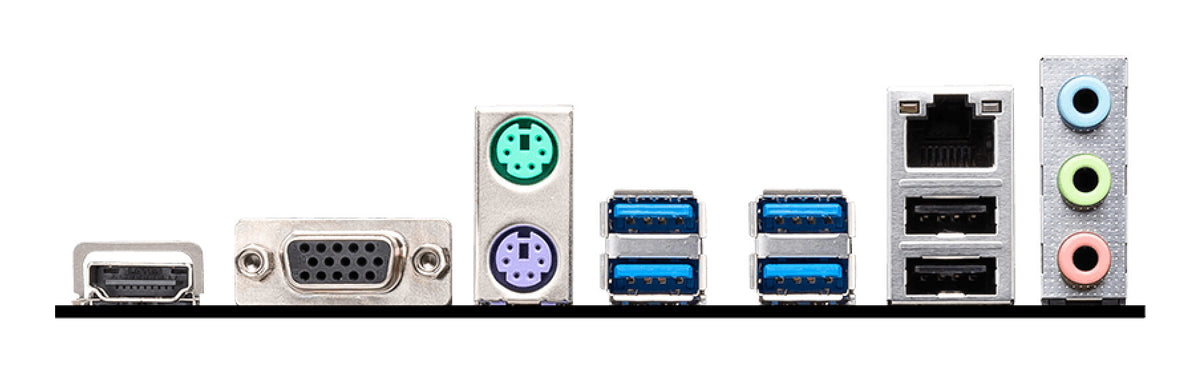

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| Ethernet LAN (RJ-45) ports |
1 |
| PS/2 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| COM ports quantity |
1 |
| USB connector type |
USB Type-A |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi |
No |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD A620 |
| Audio chip |
Realtek ALC897 |
| Audio output channels |
7.1 channels |
| Product colour |
Black |
| Cooling type |
Active |
| Power source type |
ATX |
| Expansion slots |
|---|
| PCI Express x1 slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
1 |
| Weight & dimensions |
|---|
| Width |
211 mm |
| Depth |
243.8 mm |
| Packaging content |
|---|
| Cables included |
SATA |
