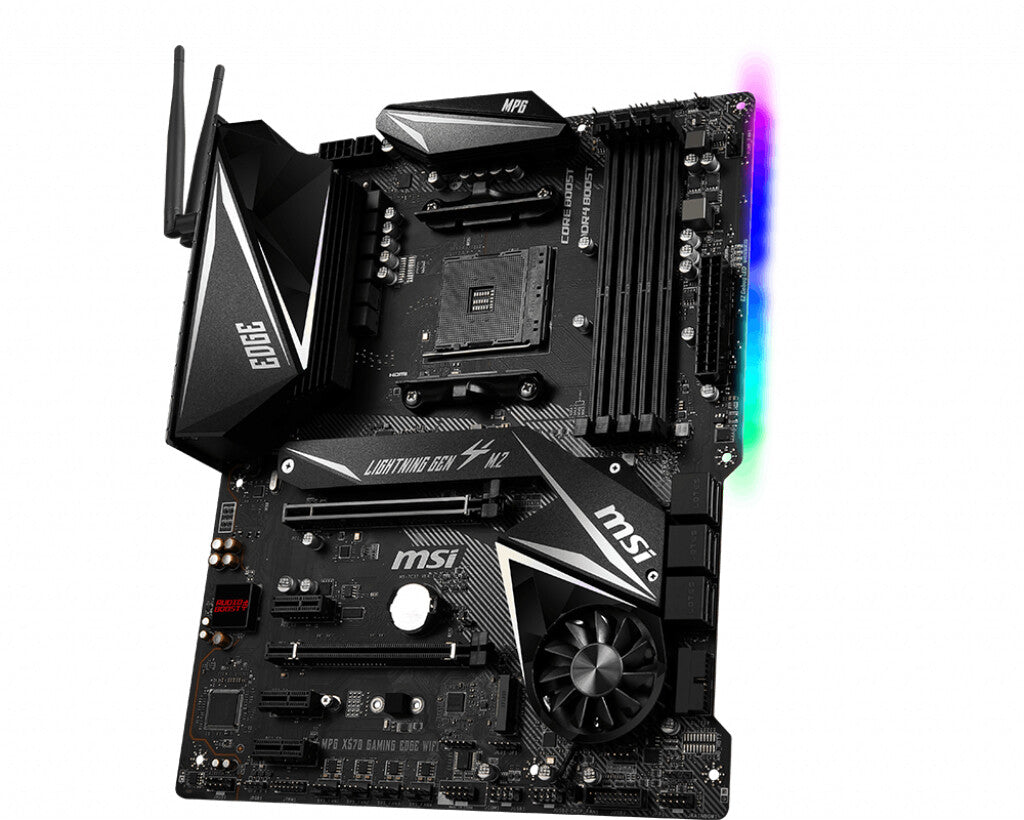

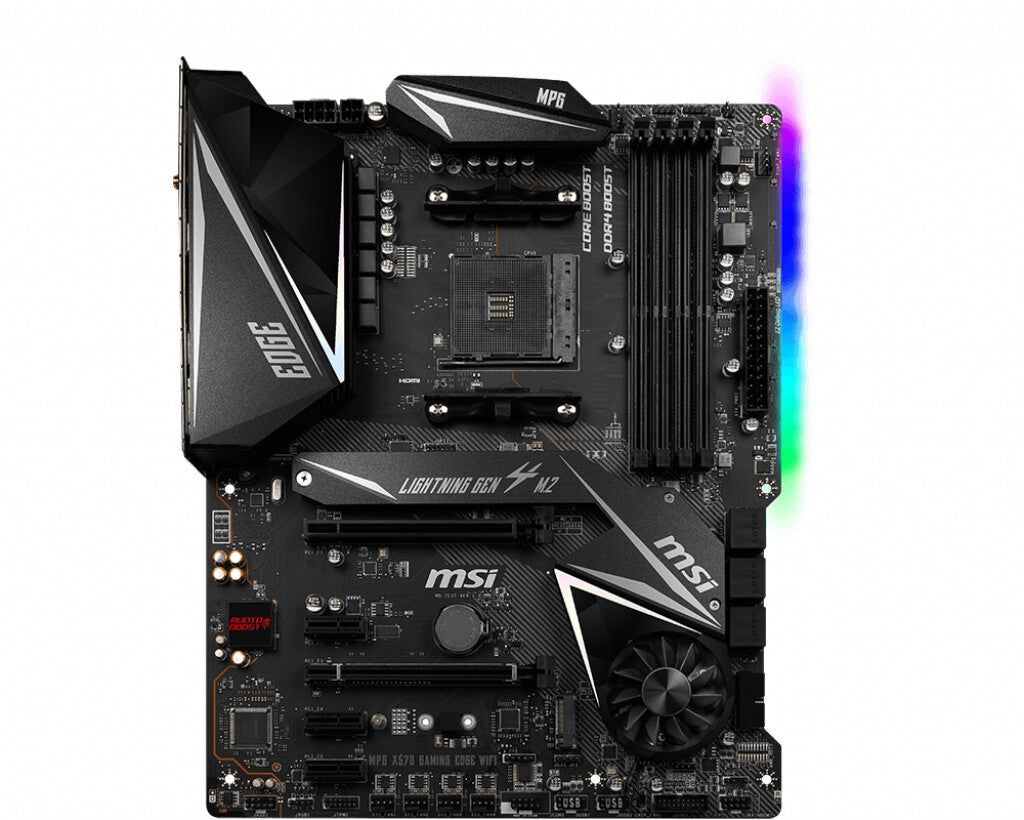

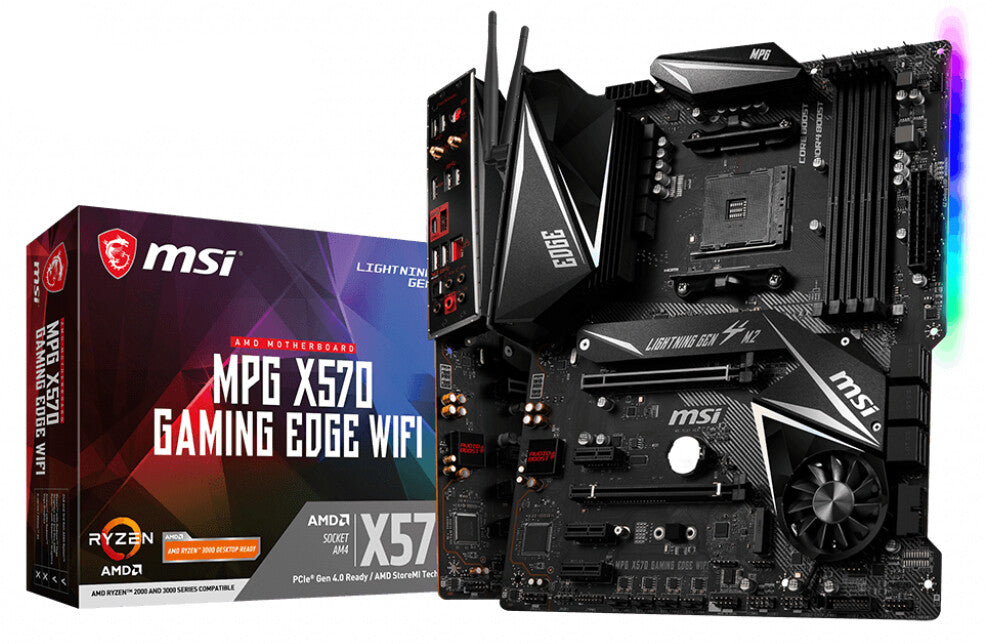

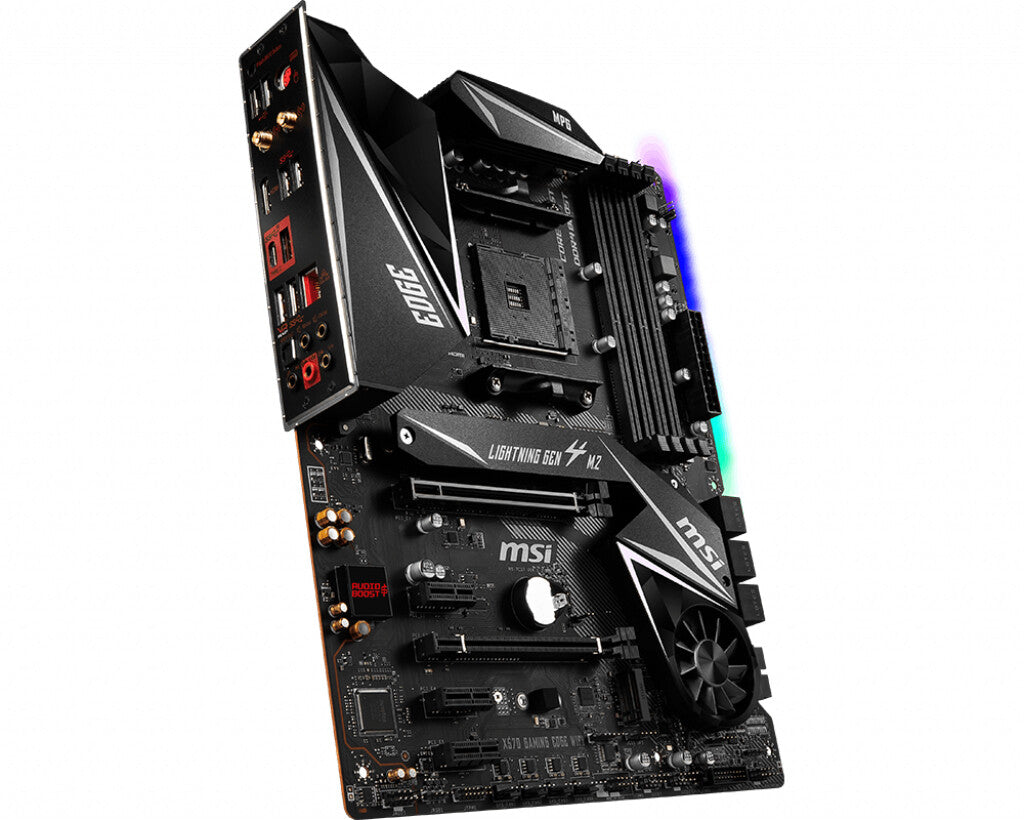

Socket AM4, AMD X570 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, WLAN, 1 x RJ-45, 6 x SATA III, 2 x M.2(M), ATX
Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4, Pre-installed I/O Shielding and Mystic Light
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
Lightning Gen4 solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Audio Boost 4
Isolated audio with a high quality audio processor for the most immersive gaming experience.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM4 |
| Compatible processor series |
AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Maximum number of SMP processors |
1 |
| Memory |
|---|
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC & Non-ECC |
| Supported memory clock speeds |
1866,2133,2400,2666 MHz |
| Maximum internal memory |
128 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
SATA III |
| RAID levels |
0, 1, 10 |
| Graphics |
|---|
| Parallel processing technology support |
2-Way CrossFireX |
| Maximum resolution |
4096 x 2160 pixels |
| Internal I/O |
|---|
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
6 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
4 |
| Chassis intrusion connector |
Yes |
| 12V power connector |
Yes |
| Serial port headers |
1 |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |

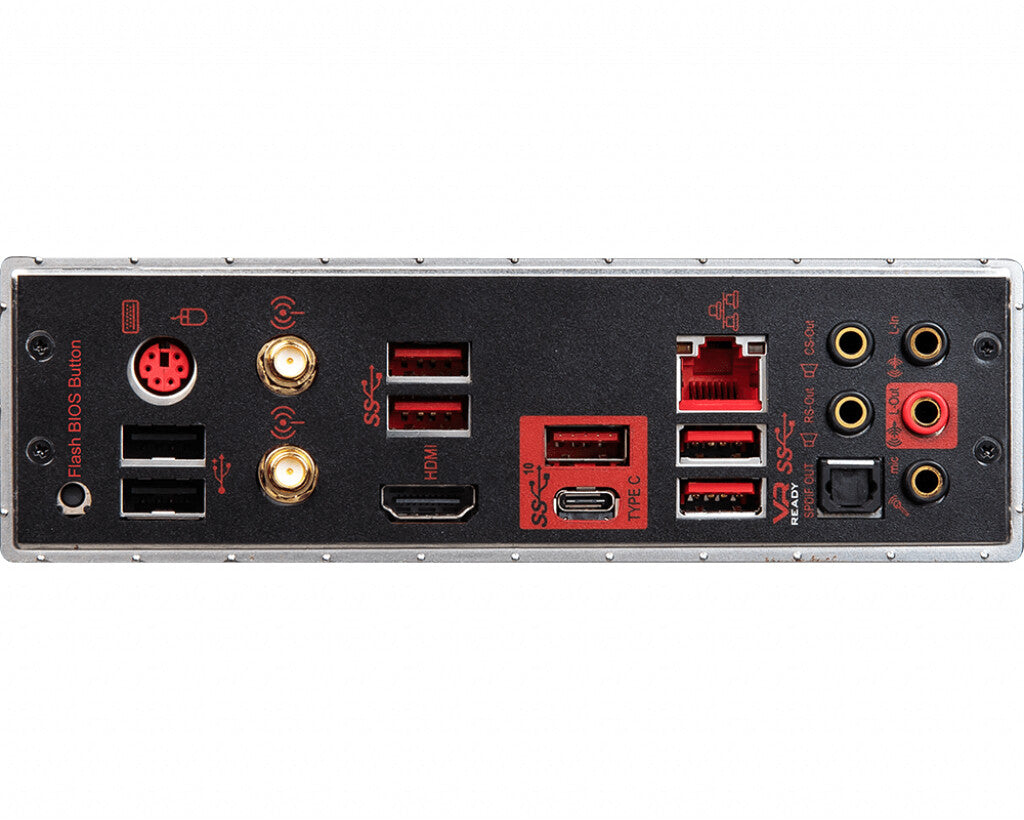

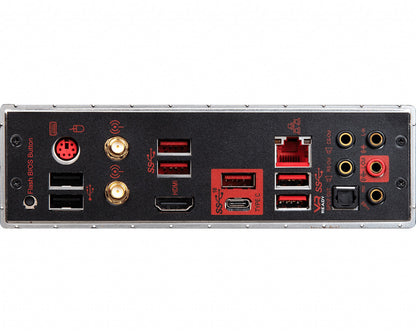

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| PS/2 ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| S/PDIF out port |
Yes |
| Digital audio optical out |
1 |
| WiFi-AP antenna jack |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth |
Yes |
| Bluetooth version |
4.2 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X570 |
| Audio chip |
Realtek ALC1220 |
| Audio output channels |
7.1 channels |
| Number of mounting holes |
9 |
| Windows operating systems supported |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Width |
304 mm |
| Depth |
243 mm |
| Packaging content |
|---|
| Cables included |
SATA |
| Drivers included |
Yes |
| Other features |
|---|
| Quick installation guide |
Yes |
