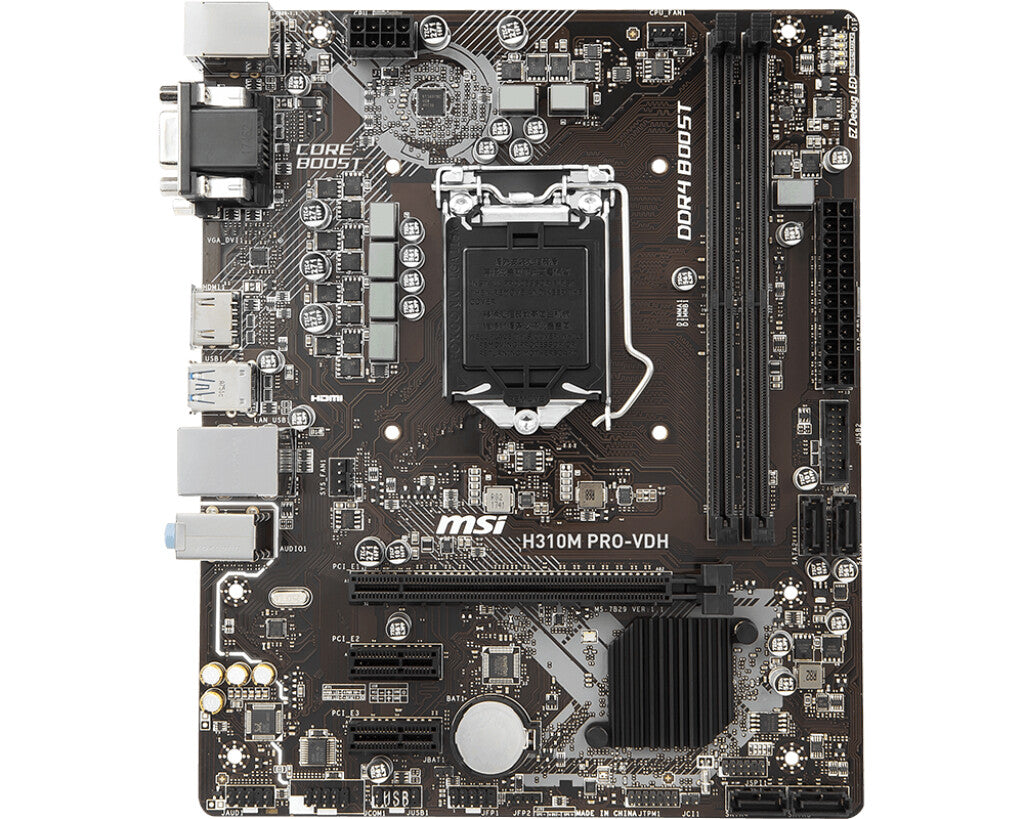

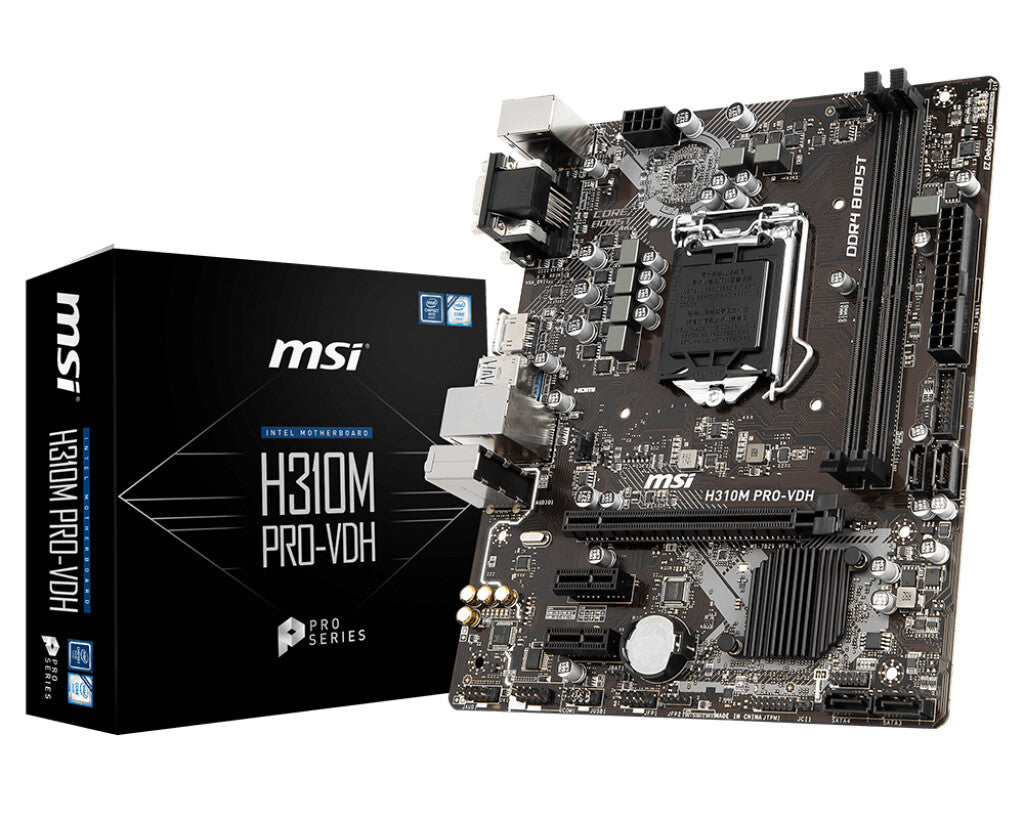

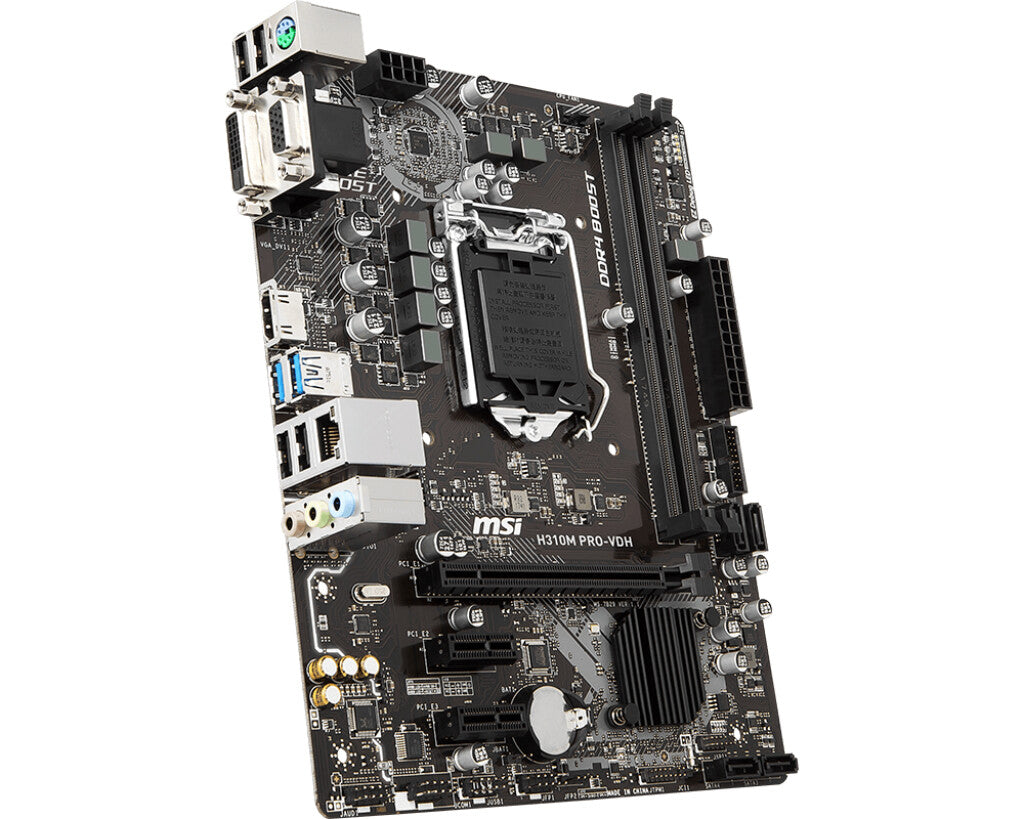

H310M PRO-VDH, LGA1151 Supports 8th Generation Intel Processors, 2 x DDR4 2666/2400/2133MHz, 4 x SATA 6Gb/s, Gigabit LAN, microATX
- Supports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1151 (Socket H4) |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| Maximum number of SMP processors |
1 |
| Intel Core i3/i5/i7/i9 series |
i3-8xxx, i5-8xxx, i7-8xxx |
| Memory |
|---|
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
2133,2400,2666 MHz |
| Supported memory clock speed (max) |
2666 MHz |
| Maximum internal memory |
32 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive interfaces |
SATA III |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| Maximum resolution |
4096 x 2160 pixels |
| DirectX version |
12.0 |
| Discrete graphics support |
Yes |
| Internal I/O |
|---|
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
1 |
| Chassis intrusion connector |
Yes |
| Serial port headers |
1 |
| TPM connector |
Yes |

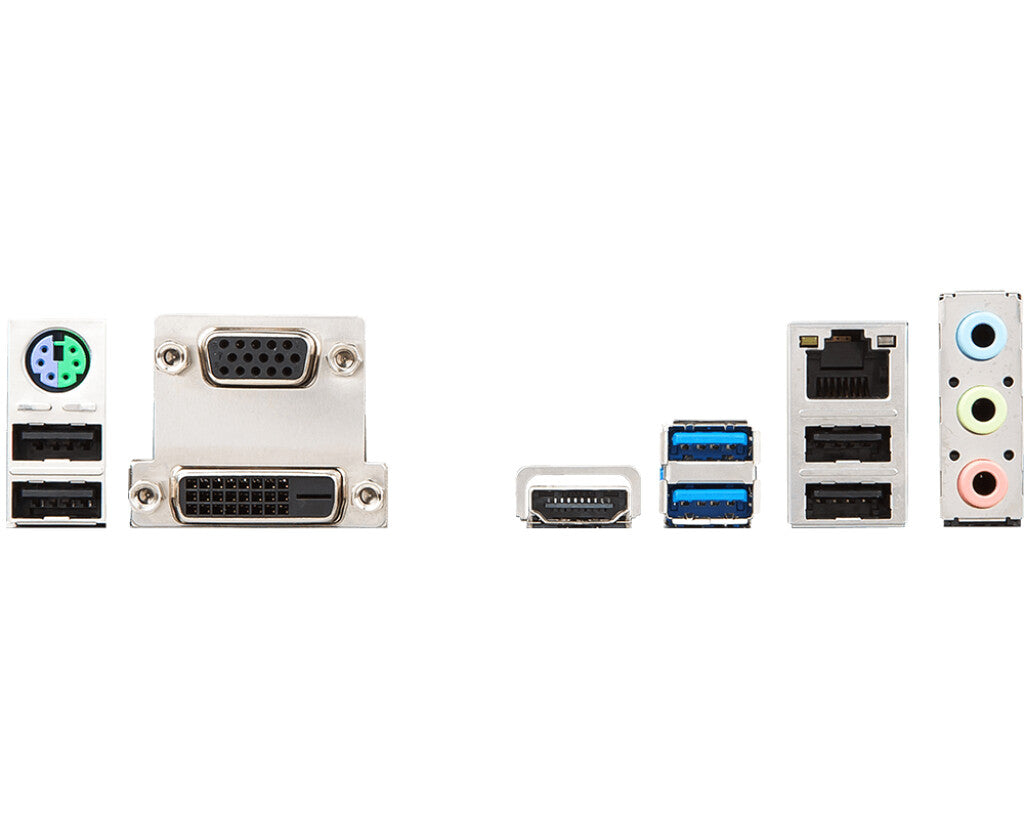

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| PS/2 ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi |
No |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel® H310 |
| Audio chip |
Realtek ALC887 |
| Audio output channels |
7.1 channels |
| Power source type |
ATX |
| Windows operating systems supported |
Windows 10 |
| Expansion slots |
|---|
| PCI Express x1 slots |
2 |
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Weight & dimensions |
|---|
| Width |
226 mm |
| Depth |
185 mm |
| Packaging content |
|---|
| Cables included |
SATA |
| Drivers included |
Yes |
| Other features |
|---|
| Serial port via internal header |
Yes |
| Quick installation guide |
Yes |
