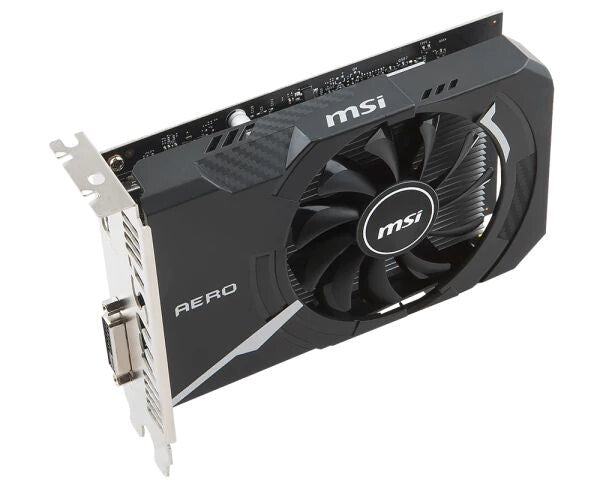

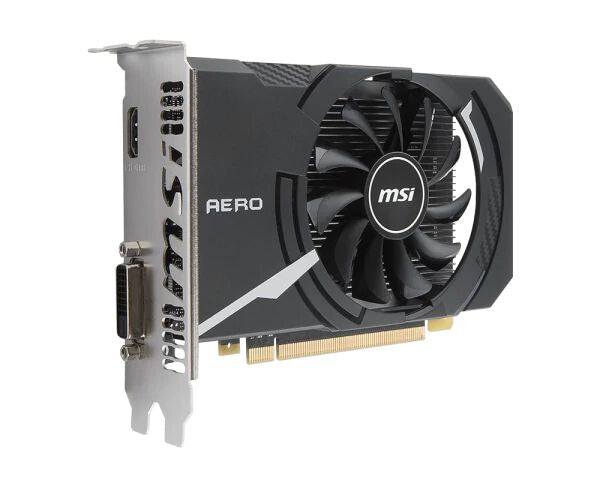

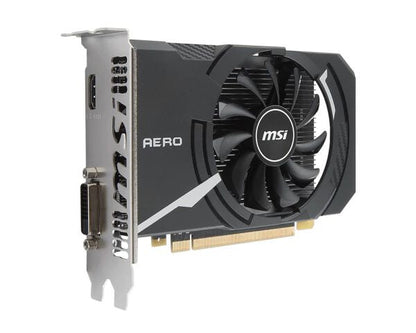

NVIDIA GeForce GT 1030, PCI Express x16 3.0, 2GB GDDR5, 64 bits, 1 x HDMI, 1 x DVI-D
STEP UP TO BRILLIANT PC GRAPHICS
Accelerate your entire PC experience with the fast, powerful NVIDIA® GeForce® GT 1030 graphics card. Gaming. HD video and picture editing. The GT 1030's award-winning NVIDIA Pascal™ architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today’s most demanding PC applications.
THE LATEST GAMING TECHNOLOGIES
Pascal is built to meet the demands of next generation displays. It features NVIDIA GameWorks™ technologies for extremely smooth gameplay and cinematic experiences.
PERFORMANCE
Pascal-powered graphics cards give you superior performance and power efficiency, built using ultra-fast FinFET and supporting DirectX™ 12 features to deliver the fastest, smoothest, most power-efficient gaming experiences.
GEFORCE EXPERIENCE
The easiest way to optimize your games and keep your drivers up to date, the GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you'll be able to update the driver directly, without leaving your desktop.
SMALL PACKAGE, BIG PUNCH
The power of a full size graphics card in an incredibly small package. MSI AERO ITX graphics cards are perfect for small form factor systems and HTPC’s as they only take up a fraction of the space of a full size graphics card. This means they will fit into virtually any system and ensure a smooth gaming experience.
PERFECT IN ANY CASE
The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.
MILITARY CLASS 4 COMPONENTS
One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for graphics cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.
AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce GT 1030 |
| Maximum resolution |
2560 x 1600 pixels |
| CUDA |
Yes |
| CUDA cores |
384 |
| Processor frequency |
1265 MHz |
| Processor boost clock speed |
1518 MHz |
| FireStream |
No |
| Parallel processing technology support |
Not supported |
| Memory |
|---|
| Discrete graphics card memory |
2 GB |
| Graphics card memory type |
GDDR5 |
| Memory bus |
64 bit |
| Memory clock speed |
6008 MHz |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 3.0 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
1 |
| HDMI version |
2.0b |
| Performance |
|---|
| TV tuner integrated |
No |
| DirectX version |
12.0 |
| OpenGL version |
4.5 |
| HDCP |
Yes |
| Dual Link DVI |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Number of fans |
1 fan(s) |
| Number of slots |
2 |
| Product colour |
Black, White |
| Power |
|---|
| Minimum system power supply |
300 W |
| Power consumption (typical) |
30 W |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
246 g |
| Length |
147 mm |
| Height |
102 mm |
| Depth |
38 mm |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| General |
|---|
| Product family |
AERO ITX |
