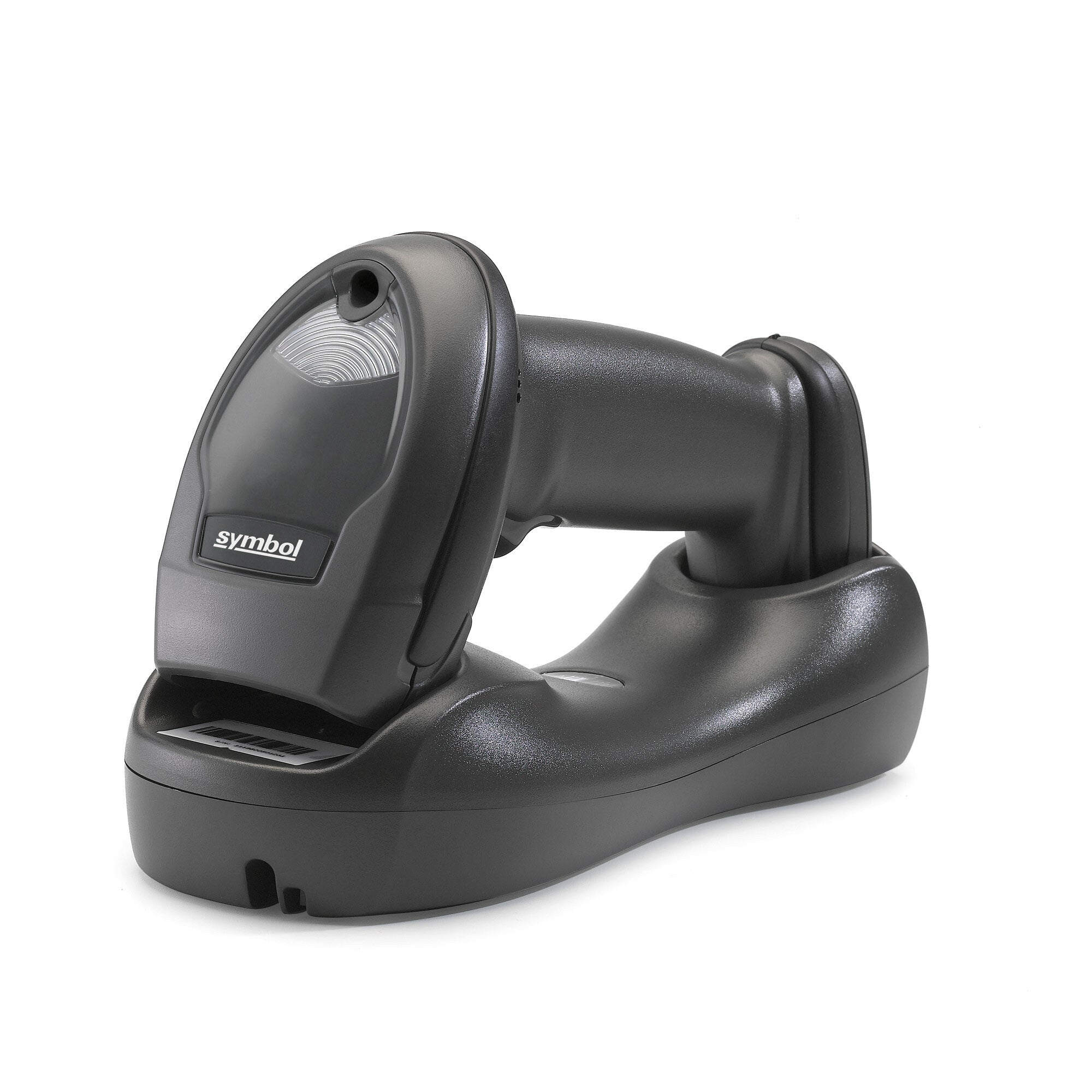

Li4278 Cordless linear scanner
THE NEXT GENERATION IN 1D SCANNING
Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance.
The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.
| Scanning |
|---|
| Decoding standards |
UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN8, EAN-13/JAN 13, Bookland EAN, BooklandISBN Format, UCC Coupon Extended Code,ISSN EAN
Code 128 Including GS1-128, ISBT128, ISBT Concatenation, Code 39 includingTrioptic Code 39, Convert Code 39 to Code32 (Italian Pharmacy Code), Code 39 FullASCII Conversion Code 93 Code 11 Matrix2 of 5 Interleaved 2 of 5 (ITF) Discrete 2of 5 (DTF) Codabar (NW - 7) MSI Chinese2 of 5 IATA
Inverse 1D (except all GS1DataBars) GS1 DataBar including GS1DataBar-14, GS1 DataBar Limited, GS1 |
| Tilt angle range |
0 - 35° |
| Maximum range |
6 m |
| Maximum scan width |
10 cm |
| Yaw reading angle |
0 - 65° |
| Pitch reading angle |
0 - 65° |
| Tilt reading angle |
0 - 45° |
| Wavelength |
612 nm |
| Light levels (direct sunlight) |
0 - 108 lx |
| Read rate (max) |
547 reads/s |
| Ports & interfaces |
|---|
| Cable length |
1.8 m |
| Bluetooth |
Yes |
| Standard interfaces |
RS-232, RS-485, USB, Keyboard wedge |
| Performance |
|---|
| Certification |
EMC FCC Part 15 Class B, ICES 003 Class B,IEC 60601-1-2 RoHS 2002/95/EEC |
| LED indicators |
Charging, Power |
| International Protection (IP) code |
IP54 |
| Housing material |
Plastic |
| Product colour |
Black |
| Power |
|---|
| Battery technology |
Lithium Polymer (LiPo) |
| Weight & dimensions |
|---|
| Weight |
224 g |
| Packaging data |
|---|
| Cables included |
RS-232 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| General |
|---|
| Product family |
Motorola |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
| Other features |
|---|
| Dimensions (WxDxH) |
70 x 186 x 98 mm |
| Safety |
C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1 |
| Light source |
LED |
| Shockproof |
No |
