MR90X, 802.11ax, 2.4/5 GHz, 1x 2.5 Gbps WAN/LAN, 1x Gigabit WAN/LAN, 2x Gigabit LAN, 209 × 172.2 × 42.4 mm
Wi-Fi 6 Made Faster, Broader, and Smarter
AX6000 8-Stream Wi-Fi 6 Router

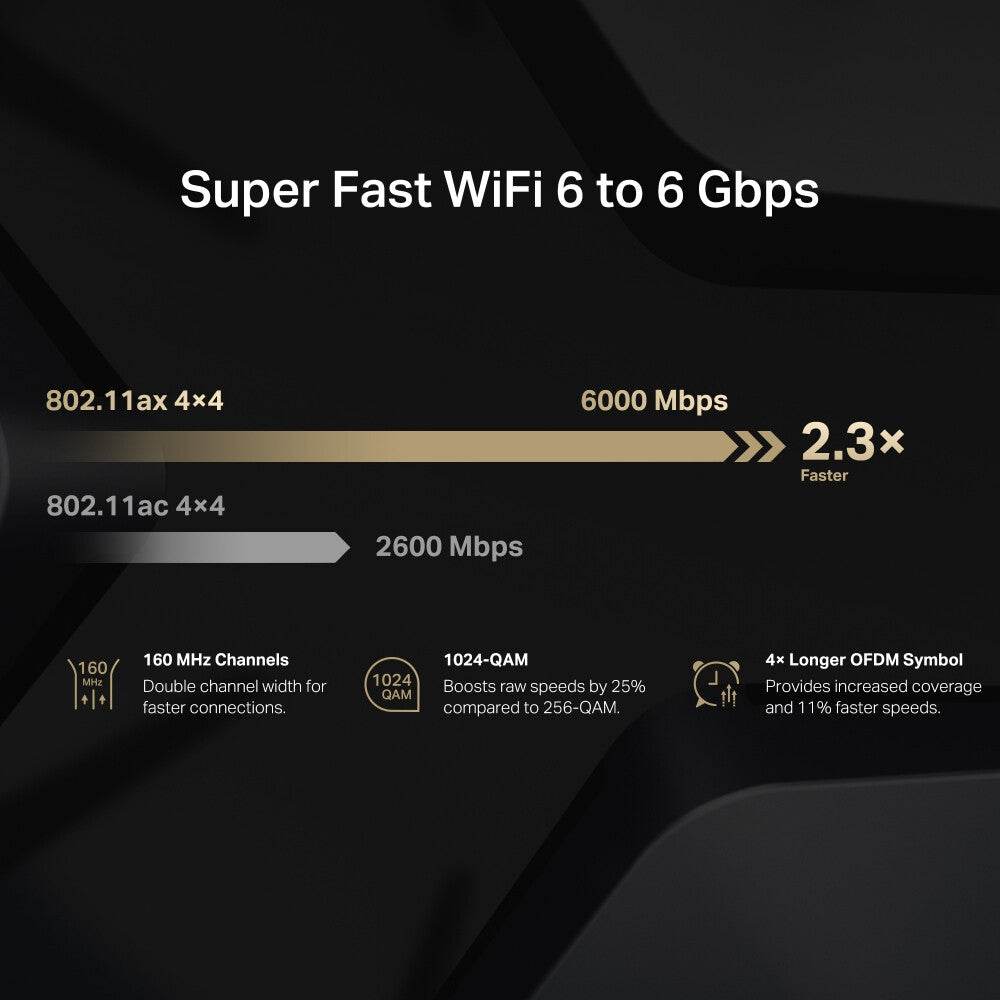

Super Fast WiFi 6 to 6 Gbps
Armed with 160 MHz channels and 1024-QAM,1 MR90X provides dramatically faster wireless connections. The speeds goes up to 6000 Mbps – 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz. 2 MR90X is 2.3× faster than 802.11ac 4×4 dual band router.
WiFi 6 – Upgrade More
Connect 4× More Devices
Streaming or gaming on multiple devices brings more fun without dragging down performance. MR90X supports OFDMA and 4×4 MU-MIMO to power up your WiFi by allowing multiple clients to transmit at the same time. This delivers 4× greater network capacity and efficiency in traffic-dense environments.
Reduce the Interference from Your Neighbors’ WiFi
Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your neighbors. MR90X supports BSS Coloring to mark the data frames from different APs. This helps minimize the signal interference from your neighbors to improve transmission efficiency.
Eco-Friendly Power Saving
Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices’ battery life.

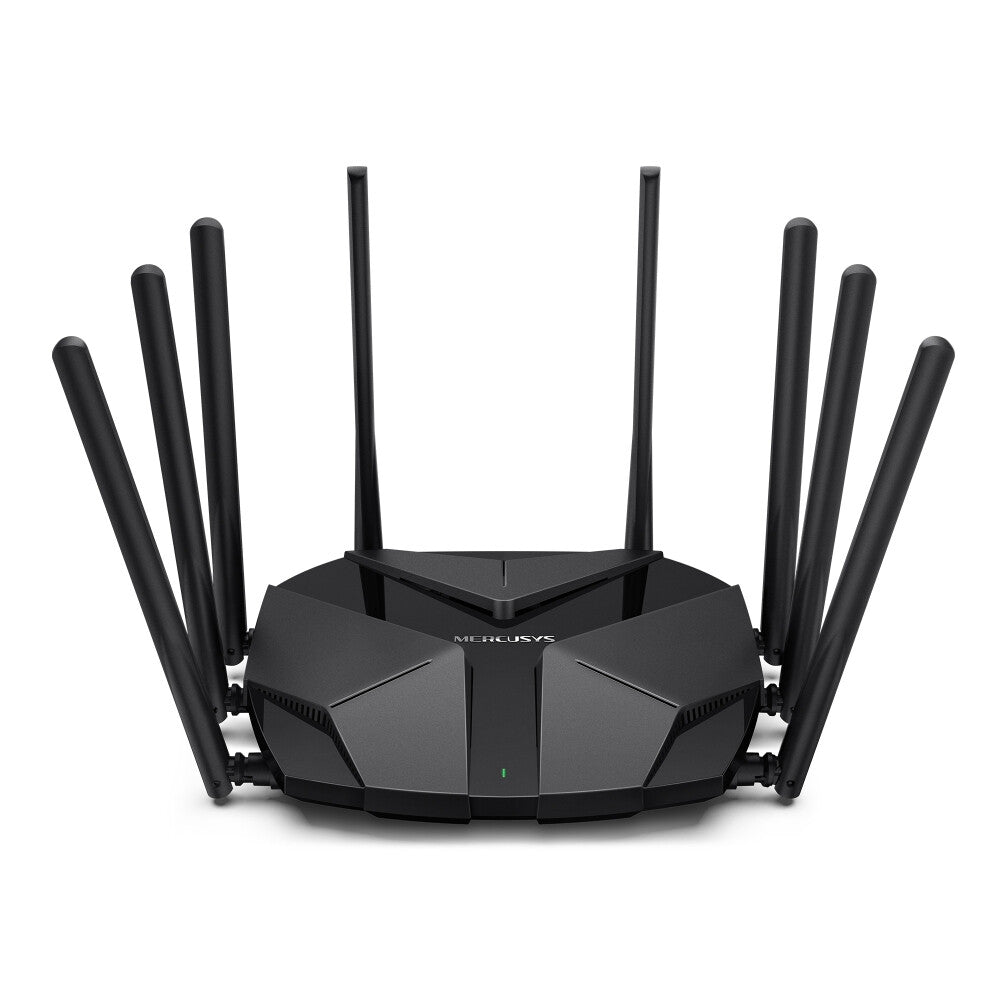

WiFi Goes Farther with 8 High-Gain Antennas
Eight powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.

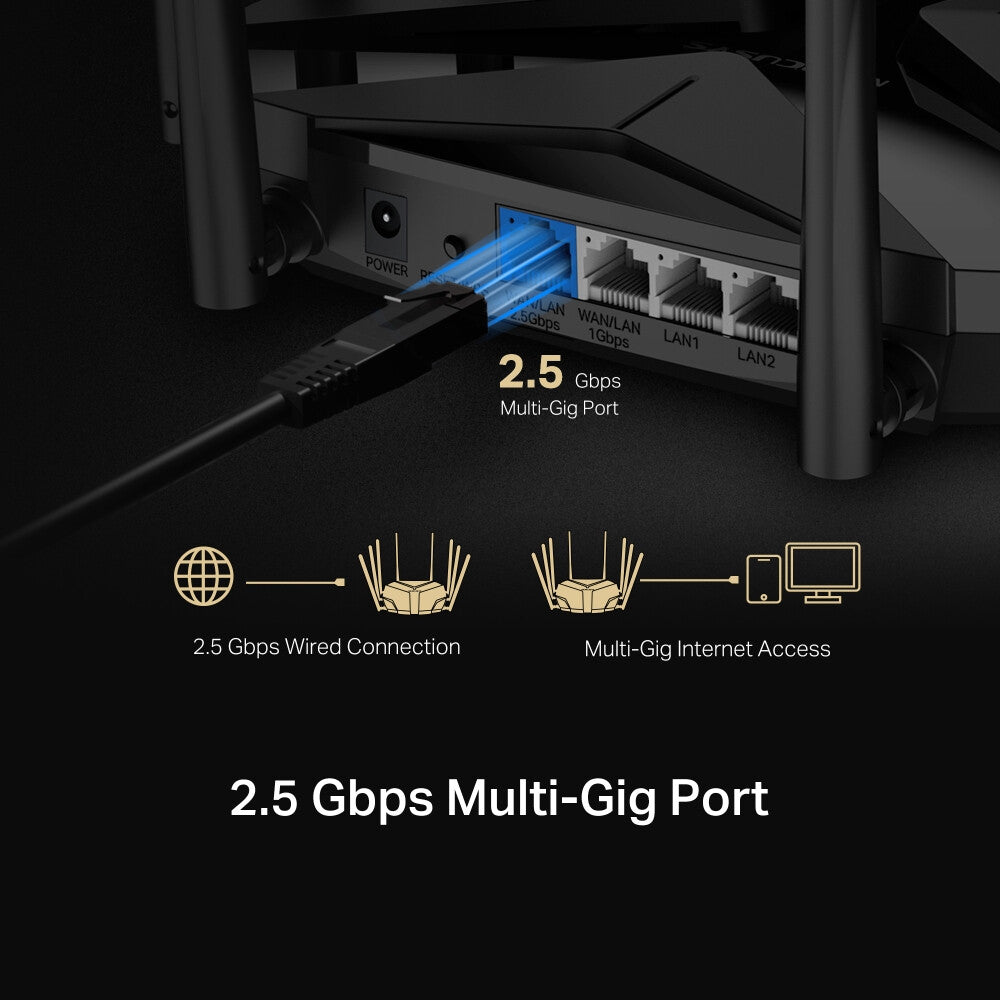

Multi-Gig Speeds,
Wired and Wireless
A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network's needs.
Robust Quad-core Processor Minimizes Buffering and Lag
Powered by a robust Quad-core 1.6 GHz processor, MR90X handles massive data throughput, allowing numerous bandwidth-intensive tasks to run smoothly at the same time and enables stable connections for up to 256 devices.
Smart Connect Assigns Devices to the Best Band Automatically
Smart Connect allows each of MR90X's wireless bands to use the same wireless settings. MR90X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.
The Latest WPA3 Protects Your Personal Network
The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.
Protect Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password
Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session’s secret keys
Unbreakable 128-Bit Encryption
Creates an active defense against security threats and intruders
Protect Your Kids When They’re Online
Easily manage your kids’ online time and content to create a healthy online environment for all.
Create User Profiles
Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.
Online Time Limits
Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices while doing homework or after bedtime.
Block Inappropriate Websites
Simply set a blacklist to block inappropriate sites for your children.
Pause Internet Connection
Suspend family members' internet connections to take a break from the virtual world to enjoy some family time.
Easy Setup and Management via the MERCUSYS App
Without needing technical knowledge or reading installation instructions in advance, just follow the on-screen directions with the MERCUSYS app to set up your router in minutes. The MERCUSYS app helps you set and manage your WiFi at home or away through your iOS or Android devices.
Support ISP Preset (Agile Config)
Mercusys provides ISPs with Agile Config Tools to customize the default settings of devices one at a time or in batches. The flexible settings include adding a logo, WAN connection type, SSID, password, time zone, language, and more.
Support TR-069 Remote Management
Powered by TR-069, get the highly customizable and remote management of your devices. Put MERCUSYS TR-069 devices into an existing system, or build your private ACS system for high scalability in the future.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
6000 Mbit/s |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) |
1148 Mbit/s |
| WLAN data transfer rate (second band) |
4804 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Port triggering |
Yes |
| Port forwarding |
Yes |
| VPN server |
OpenVPN, PPTP supported |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
No |
| DC-in jack |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Access Control List (ACL) |
Yes |
| Firewall security |
SPI Firewall |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| On/off switch |
Yes |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Manual |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antennas quantity |
8 |
| Antenna direction type |
Omni-directional |
| Detachable antenna(s) |
Yes |
| Power |
|---|
| Power source type |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
42.4 mm |
| Depth |
172.2 mm |
| Width |
209 mm |
| Packaging data |
|---|
| Package type |
Box |
| Number of products included |
1 pc(s) |
