1x Gigabit WAN Port, 3x Gigabit LAN Ports, 300Mbps/2.4GHz, 867Mbps/5GHz, 222 × 140 × 32 mm
Live Your Digital Life at Warp Speed

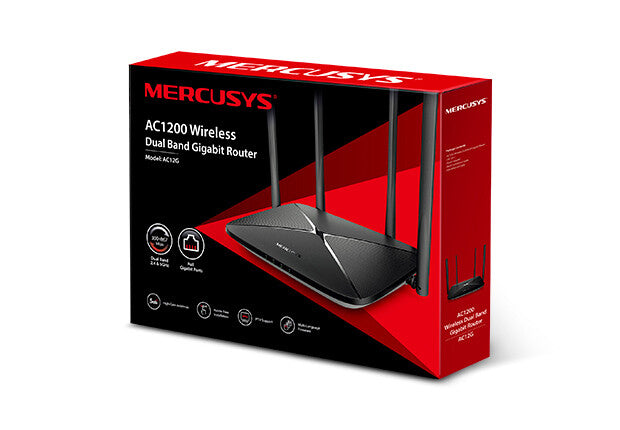

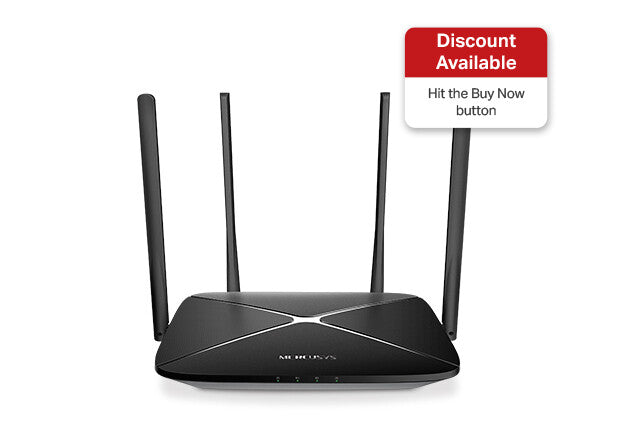

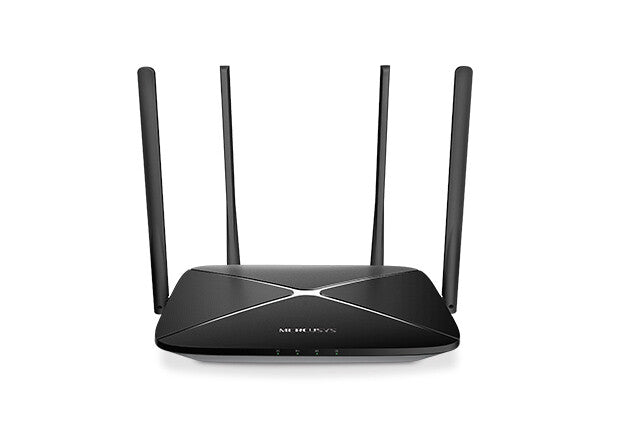

AC1200 Wireless Dual Band Gigabit Router.
1200 Mbps Wi-Fi for endless home entertainment
Internet entertainments arrive at a warp speed with the powerful AC1200 dual band Wi-Fi. For multiple streaming simultaneous, 300 Mbps over the 2.4 GHz band is great for streaming music and shopping online, while 867 Mbps over the 5 GHz band covers bandwidth-intensive tasks like HD streaming and gaming.
Gigabit Speed for Lightning-Fast Surfing
Lightning-fast wired connections are delivered by four built-in gigabit Ethernet ports. Enjoy lag-free gaming, smooth HD video streaming, and high-speed file downloading.
Reliably Connect up to 60 Devices, Simultaneously
Easily share reliable wireless connection with up to 60 wireless devices, such as phones, tablets, and smart home devices, at the same time. Perfectly cover all network needs whether there is a party in the house or a barbecue in the yard.
Strong Signal,Great Coverage
Four external 5 dBi antennas provide users with broader wireless coverage and wireless signal intensity capable of extending throughout your large home or office. Make weak, dropped connections a thing of the past.
Ready for Smooth IPTV
IGMP Proxy/Snooping, Bridge, and Tag VLAN technology allow streaming to transfer through certain gigabit LAN ports, optimizing Hi-Resolution video.
Easy Three-Step Installation
Simply follow the step-by-step instructions on the intuitive webpage to set up your AC12G in minutes—no need for complicated configuration.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
1167 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Mobile network |
|---|
| 4G |
No |
| 3G |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
No |
| Memory card slot(s) |
No |
| Management features |
|---|
| Reset button |
Yes |
| WPS push button |
Yes |
| Security |
|---|
| Security algorithms |
WPA-PSK, WPA2-PSK |
| Protocols |
|---|
| DHCP server |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antennas quantity |
4 |
| Transmit power |
20 dBmW |
| Features |
|---|
| Certification |
CE, ROHS |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
9 V |
| Output current |
0.85 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
32 mm |
| Depth |
140 mm |
| Width |
222 mm |
| Packaging data |
|---|
| Package width |
382 mm |
| Package depth |
288 mm |
| Package height |
66 mm |
| Package weight |
760 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
