5x RJ-45 10/100Mbps, 1Gbps, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, auto-MDI/MDIX, 82 x 49 x 21 mm
Easy Wired Network Expansion

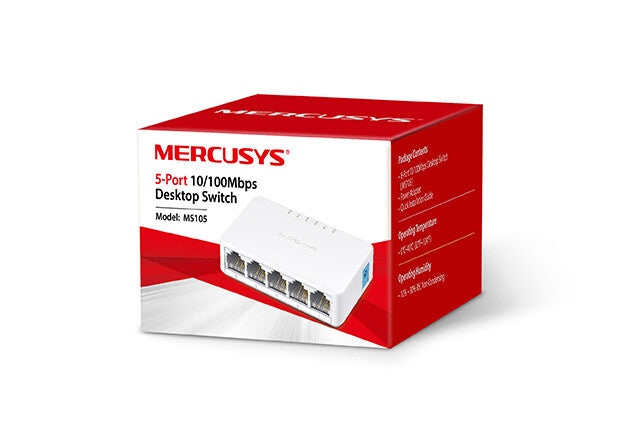

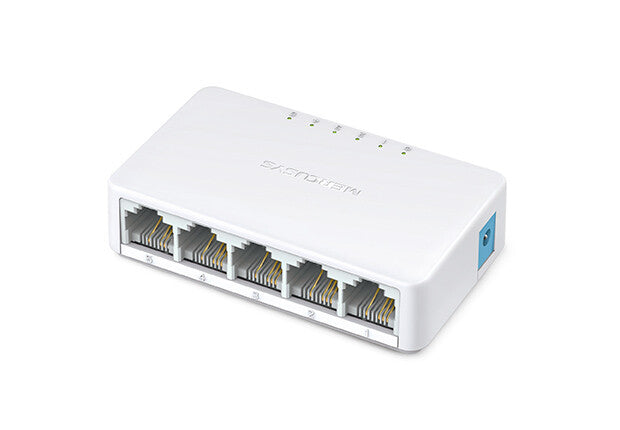

5-Port 10/100Mbps Desktop Switch
Sleek,Ultra-Compact Design
About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
Expand Ethernet Network
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.
Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
2000 |
| Packet buffer memory |
0.768 MB |
| Design |
|---|
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
White |
| LED indicators |
LAN, Power |
| Certification |
CE, RoHS |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| Input current |
0.6 A |
| Input voltage |
5 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
82 mm |
| Depth |
49 mm |
| Height |
21 mm |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Package width |
87 mm |
| Package depth |
80 mm |
| Package height |
57 mm |
| Package weight |
140 g |
