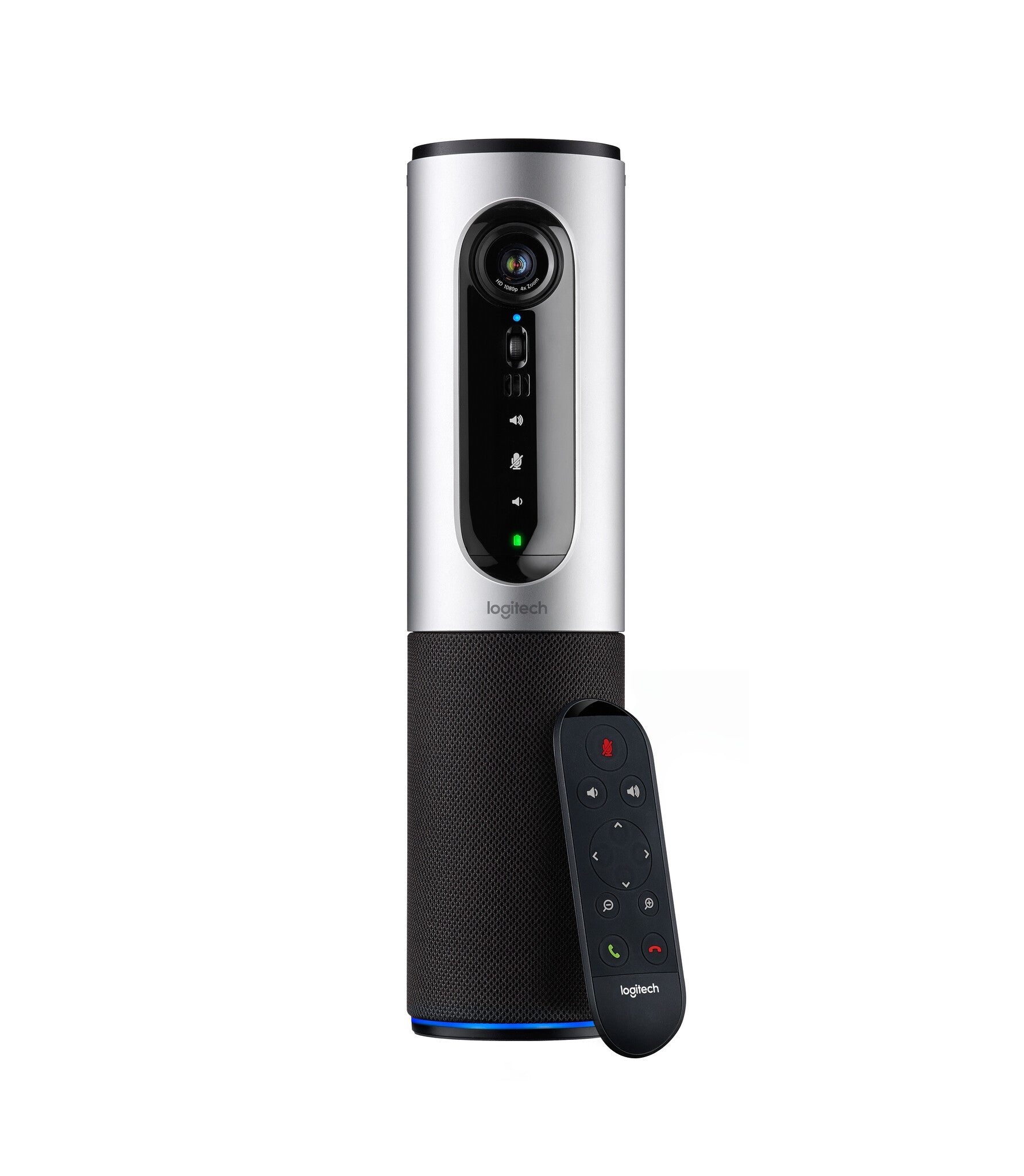

ConferenceCam Connect
Logitech Connect is a portable, all-in-one videoconference solution with HD 1080p video, professional audio, and multi-device connectivity for small group collaboration.
Optimized for workgroups of 1-6 people, the affordable Connect videoconference solution offers multi-device connectivity and sets up in a snap to elevate small group collaboration to the next level.
Connect offers a generous 90-degree field of view with digital pan, mechanical tilt, 4x digital Full HD zoom, and a glass lens with autofocus. The mobile speakerphone features Bluetooth® wireless technology, Near Field Communication (NFC), and USB. With true 360-degree sound, users can hear and be heard within a 12-foot diameter range while acoustic echo and noise-cancelling technology delivers conversational realism.
For ultimate flexibility in the Anywhere Workplace, Connect runs on battery or AC power, provides multi-device connectivity and features certifications from Microsoft®, Cisco®, and Skype™ to ensure broad-based UC compatibility.
| Performance |
|---|
| PTZ control |
Yes |
| Tilt angle range |
-10 - 10° |
| Product colour |
Grey |
| Bluetooth |
Yes |
| Product type |
Group video conferencing system |
| Video |
|---|
| Video formats supported |
H.264 |
| Aspect ratio |
16:9 |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes |
1080p, 720p |
| Maximum video resolution |
1920 x 1080 pixels |
| HD type |
Full HD |
| Audio |
|---|
| Microphone pick-up range |
3.6 m |
| Frequency range |
140 - 16000 Hz |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Camera |
|---|
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Photo feature |
Yes |
| Remote control interface |
IR Wireless |
| Focus adjustment |
Auto |
| Field of view (FOV) angle |
90° |
| Digital zoom |
4x |
| Zoom capability |
Yes |
| Display |
|---|
| Viewing angle, horizontal |
82.1° |
| Viewing angle, vertical |
52.2° |
| Microphone |
|---|
| Number of microphones |
2 |
| Microphone Total Harmonic Distortion (THD) |
1% |
| Sound pressure level (max) |
91.5 dB |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
100 - 16000 Hz |
| Microphone sensitivity |
-34 dB |
| Battery |
|---|
| Battery capacity |
11.52 Wh |
| Logistics data |
|---|
| Master (outer) case gross weight |
6.5 kg |
| Master (outer) case length |
428 mm |
| Master (outer) case width |
308 mm |
| Master (outer) case height |
200 mm |
| Harmonized System (HS) code |
85176990 |
| System requirements |
|---|
| Minimum system requirements |
Windows 7 or 8.1 Mac OS X 10.7 or higher Google Chromebook Version 29.0.1547.70, Platform 4319.79.0 with 2.4 GHz Intel Core 2 Duo processor 2 GB RAM or more Hard drive space for recorded videos USB 2.0 port (USB 3.0 ready) Screen mirroring: Android 4.3 or higher Windows 8.1 or higher / As phones or tablets may vary, please check your mobile device specs or contact manufacturer |
| Minimum RAM |
2000 MB |
| Features |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Mounting type |
Stand |
| Telepresence |
No |
| Computer system |
|---|
| Other operating systems supported |
ChromeOS |
| Mobile operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Power |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
3200 mAh |
| Number of batteries supported |
2 |
| Power source type |
AC, Battery |
| Weight & dimensions |
|---|
| Package weight |
1.49 kg |
| Package height |
420 mm |
| Package depth |
148 mm |
| Package width |
90 mm |
| Weight |
766 g |
| Height |
304.2 mm |
| Depth |
75 mm |
| Width |
75 mm |
| Remote control weight |
32 g |
| Remote control dimensions (W x H x D) |
41 x 128 x 9 mm |
| Packaging content |
|---|
| Packaging content |
Logitech Connect device Remote control 1.8 meter USB cable Power adapter with regional plugs Documentation |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
USB |
