Intel Xeon 6353P (24MB Cache, 2.7GHz), 32GB DDR5-SDRAM (4800MHz), 1920GB SSD, LAN, 940-8i 4GB, 800W

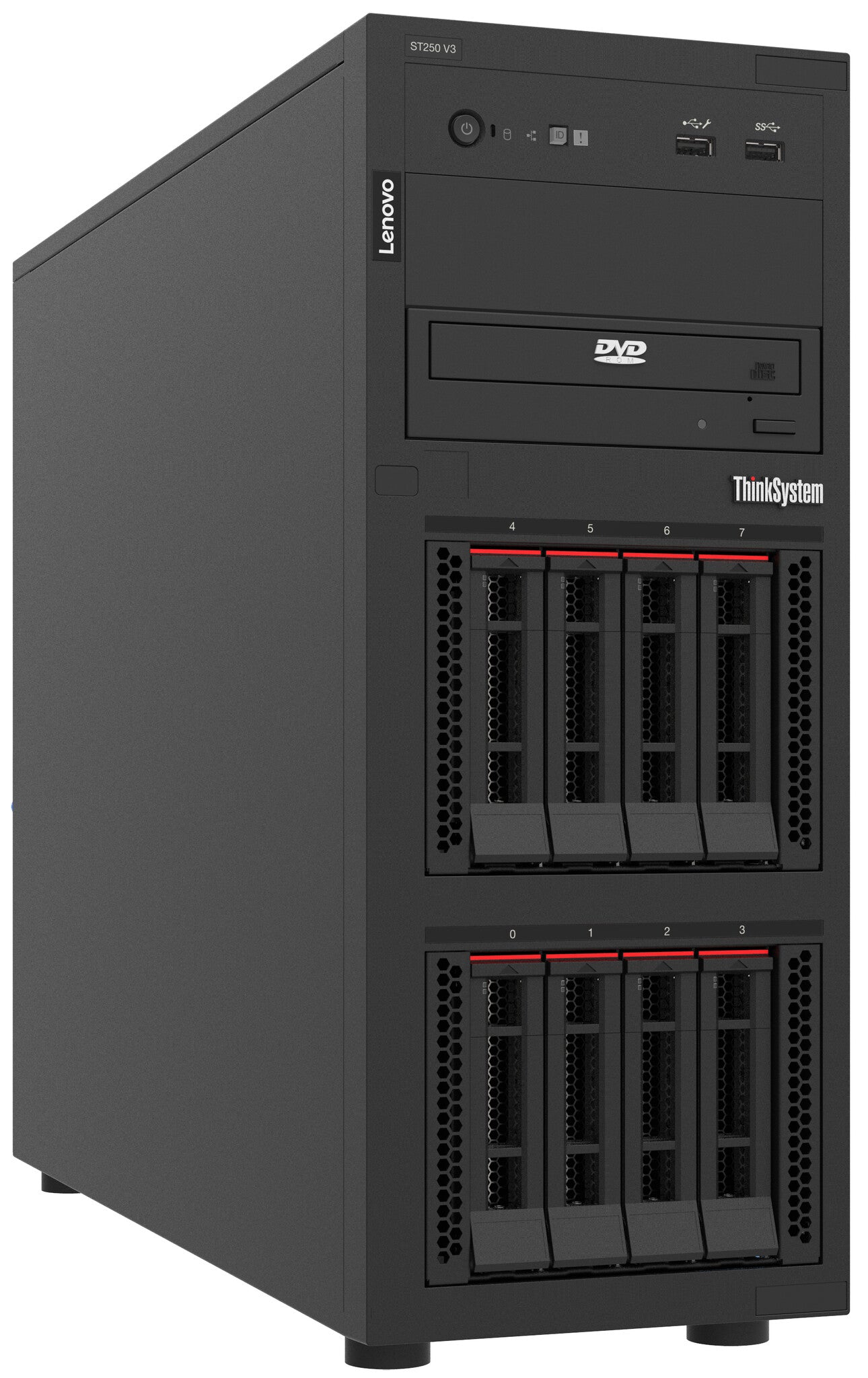

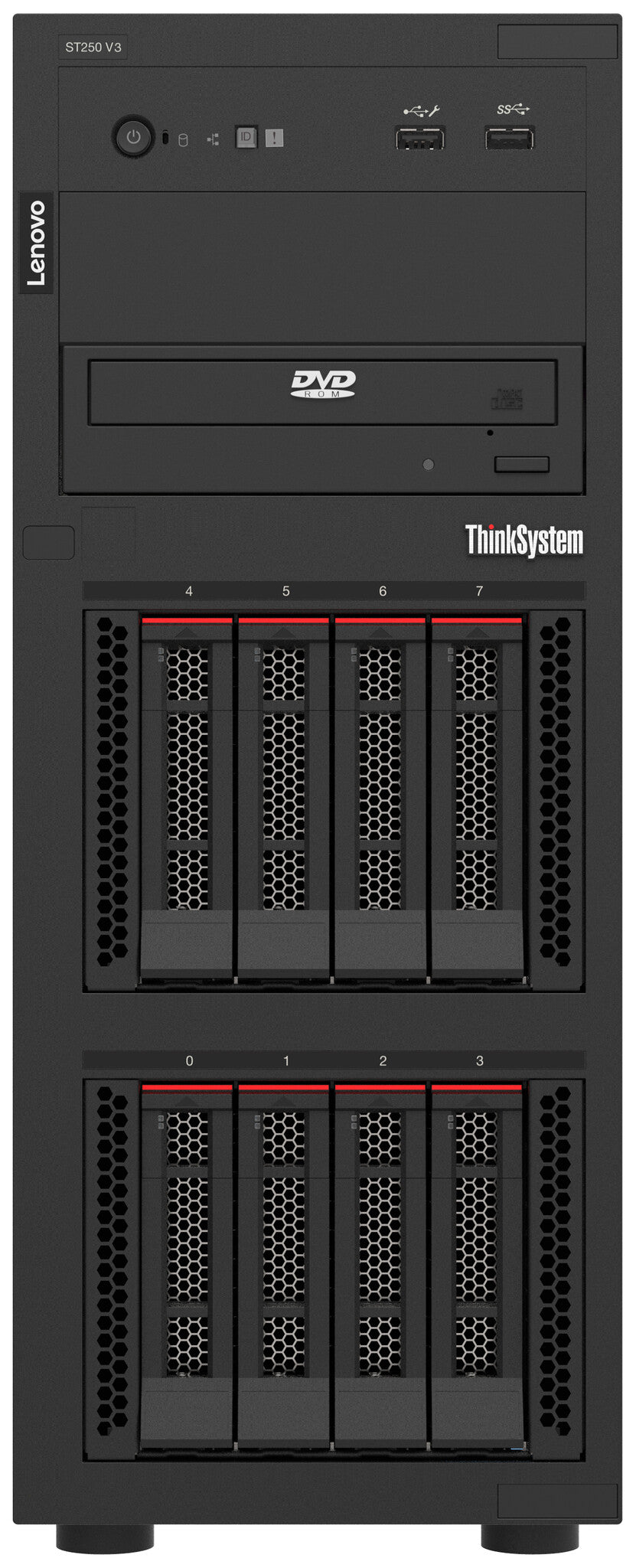

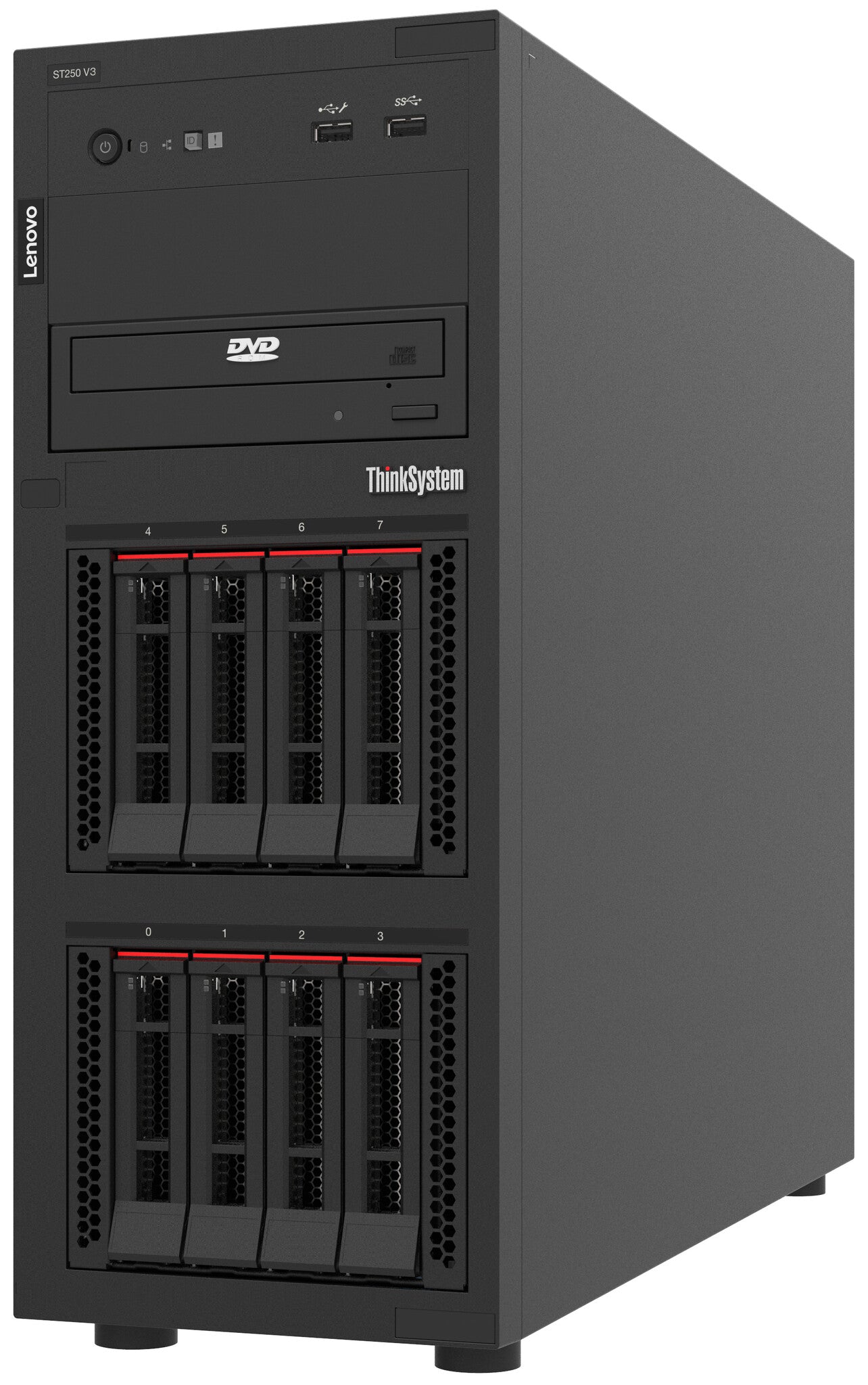

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Xeon® |
| Processor model |
6353P |
| Processor frequency |
2.7 GHz |
| Processor boost frequency |
5.4 GHz |
| Performance cores |
8 |
| Processor cores |
8 |
| Processor cache |
24 MB |
| Number of processors installed |
1 |
| Memory |
|---|
| Internal memory |
32 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
4800 MHz |
| Memory layout (slots x size) |
1 x 32 GB |
| ECC |
Yes |
| Memory slots |
4x DIMM |
| Maximum internal memory |
128 GB |
| Storage |
|---|
| Total storage capacity |
1.92 TB |
| Number of SSDs installed |
2 |
| SSD capacity |
960 GB |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10, 50 |
| Supported RAID controllers |
940-8i 4GB |
| Hot-swap |
Yes |
| Supported storage drive interfaces |
SAS, Serial ATA |
| Internal drive bays |
8 |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Maximum graphics card memory |
16 MB |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
| LAN controller |
Broadcom 5719 |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Design |
|---|
| Chassis type |
Tower |
| Product colour |
Black |
| Performance |
|---|
| Performance management |
XCC Platinum |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Compatible operating systems |
Microsoft Windows Server
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi |
| Power |
|---|
| Power supply |
800 W |
| Number of main power supplies |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 45 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
8 - 90% |
| Storage relative humidity (H-H) |
8 - 90% |
| Operating altitude |
0 - 3050 m |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| General |
|---|
| Product family |
ThinkSystem |
| Weight & dimensions |
|---|
| Width |
176 mm |
| Height |
444 mm |
| Depth |
578 mm |
| Technical details |
|---|
| Supported storage drives form factor (rear) |
2.5" |
