4Y37A09733
Incl VAT
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Shop safely
Secure your shopping experience with various safe and trusted payment methods.

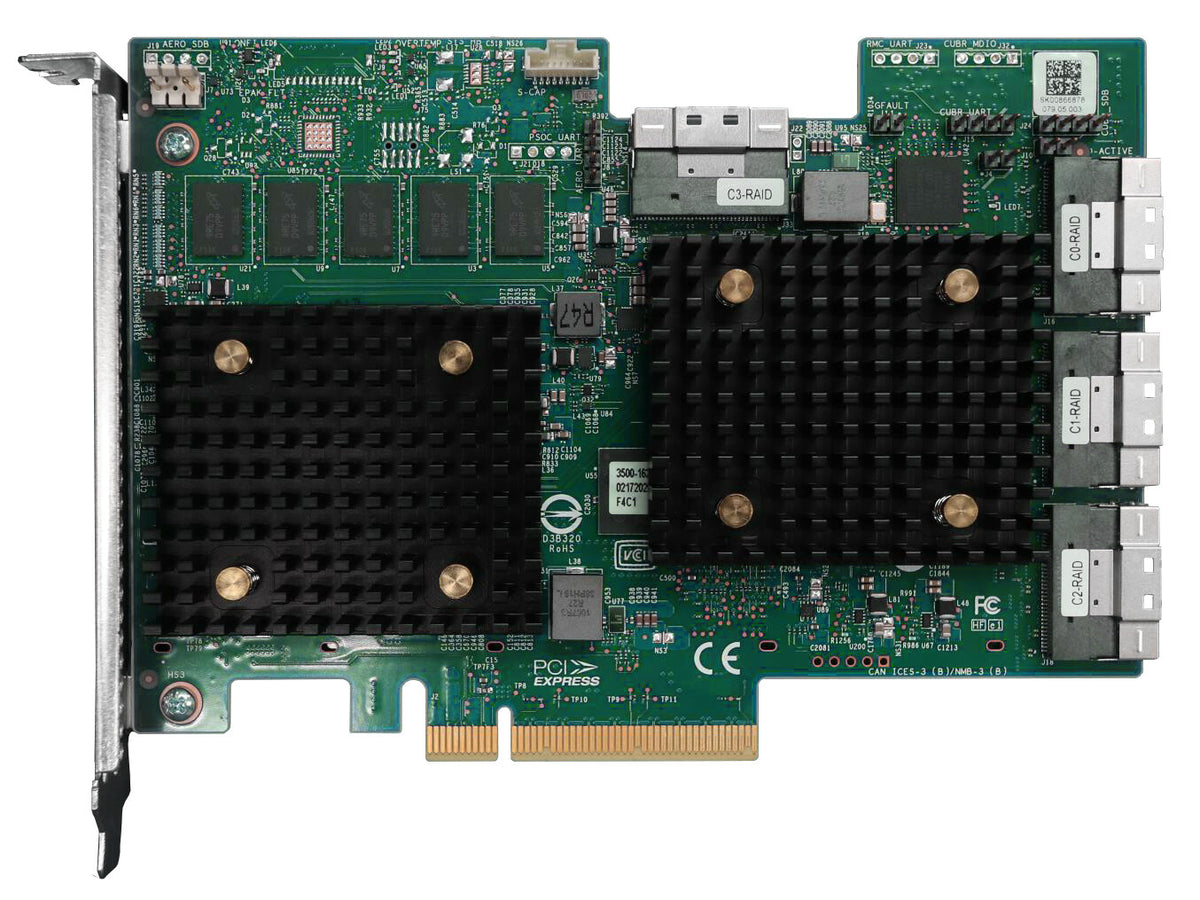

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| PCI Express slots version | 4.0 |
| Performance | |
|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Data transfer rate | 12 Gbit/s |
| SSD support | Yes |
| Chipset | MegaRAID 9367-32i 8G |
| JBOD function | Yes |
| Number of devices supported | 32 |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Certification | USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 105 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
