2 x DisplayPort, 1 x HDMI, 3 x USB 3.1, 2 x USB 2.0, 1 x USB Type C, 1 x Gigabit LAN, 90W

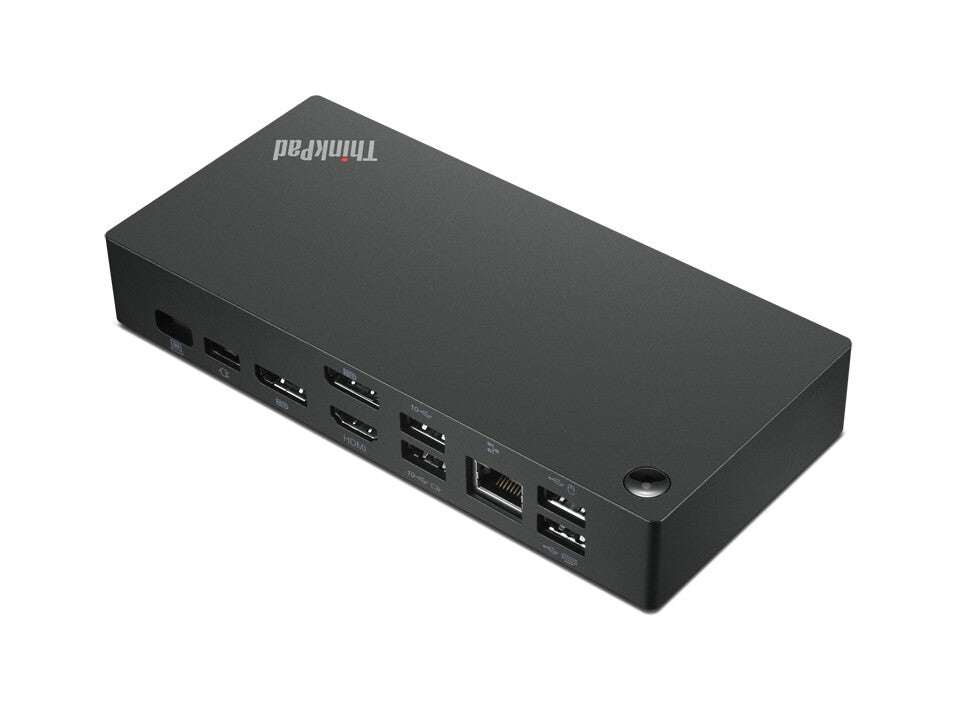

The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.
One Dock. No Limits.
Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.
One Cable. No Hassle.
With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.
Entire Fleet. One Manager.
The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| Microphone in |
No |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
| On/off switch |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Number of displays supported |
3 |
| Maximum digital resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Card reader integrated |
No |
| Product colour |
Black |
| Power |
|---|
| Power supply |
90 W |
| Power connector |
USB Type-C |
| Power source type |
USB |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 95% |
| Operating temperature (T-T) |
0 - 35 °C |
| Weight & dimensions |
|---|
| Weight |
340 g |
| Height |
30.8 mm |
| Depth |
80 mm |
| Width |
171 mm |
| Packaging data |
|---|
| Package weight |
955 g |
| Package height |
75 mm |
| Package depth |
158 mm |
| Package width |
210 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
USB Type-C |
| Technical details |
|---|
| Compliance certificates |
CE |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
