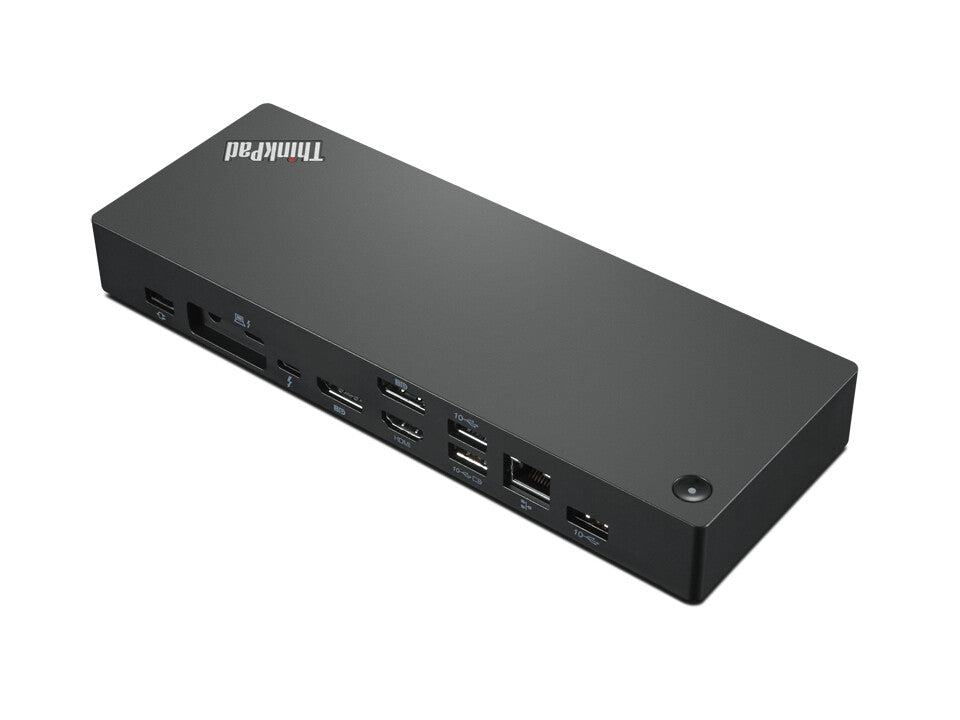

ThinkPad Thunderbolt 4 Workstation Dock
Premium Thunderbolt™ 4 Docking Experience: ThinkPad Thunderbolt 4 Workstation Dock delivers reliable and consistent industry leading video, data and power connectivity; Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, Upto 230W Power Delivery to Workstation, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.; The ThinkPad Thunderbolt 4 Workstation Dock is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Combo headphone/mic port |
Yes |
| Microphone in |
No |
| Thunderbolt 4 ports quantity |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB Power Delivery up to |
230 W |
| USB Power Delivery |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Host interface |
Thunderbolt 4 |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
cULus, FCC, ICES, NOM |
| LED indicators |
Yes |
| VESA mounting |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Number of displays supported |
4 |
| Maximum refresh rate |
30 Hz |
| Maximum digital resolution |
7680 x 4320 pixels |
| HD type |
8K Ultra HD |
| Data transfer rate |
40 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Black, Red |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Power |
|---|
| Power consumption (max) |
230 W |
| Output current |
15 A |
| Output voltage |
20 V |
| Power supply |
300 W |
| Power source type |
AC |
| Software |
|---|
| Windows operating systems supported |
Windows 10 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
450 g |
| Height |
30 mm |
| Depth |
80 mm |
| Width |
220 mm |
| Packaging data |
|---|
| Package weight |
1.9 kg |
| Package height |
85 mm |
| Package depth |
195 mm |
| Package width |
270 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC |
| AC adapter included |
Yes |
| Warranty card |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
