Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB, 1x 16GB UDIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 770, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro

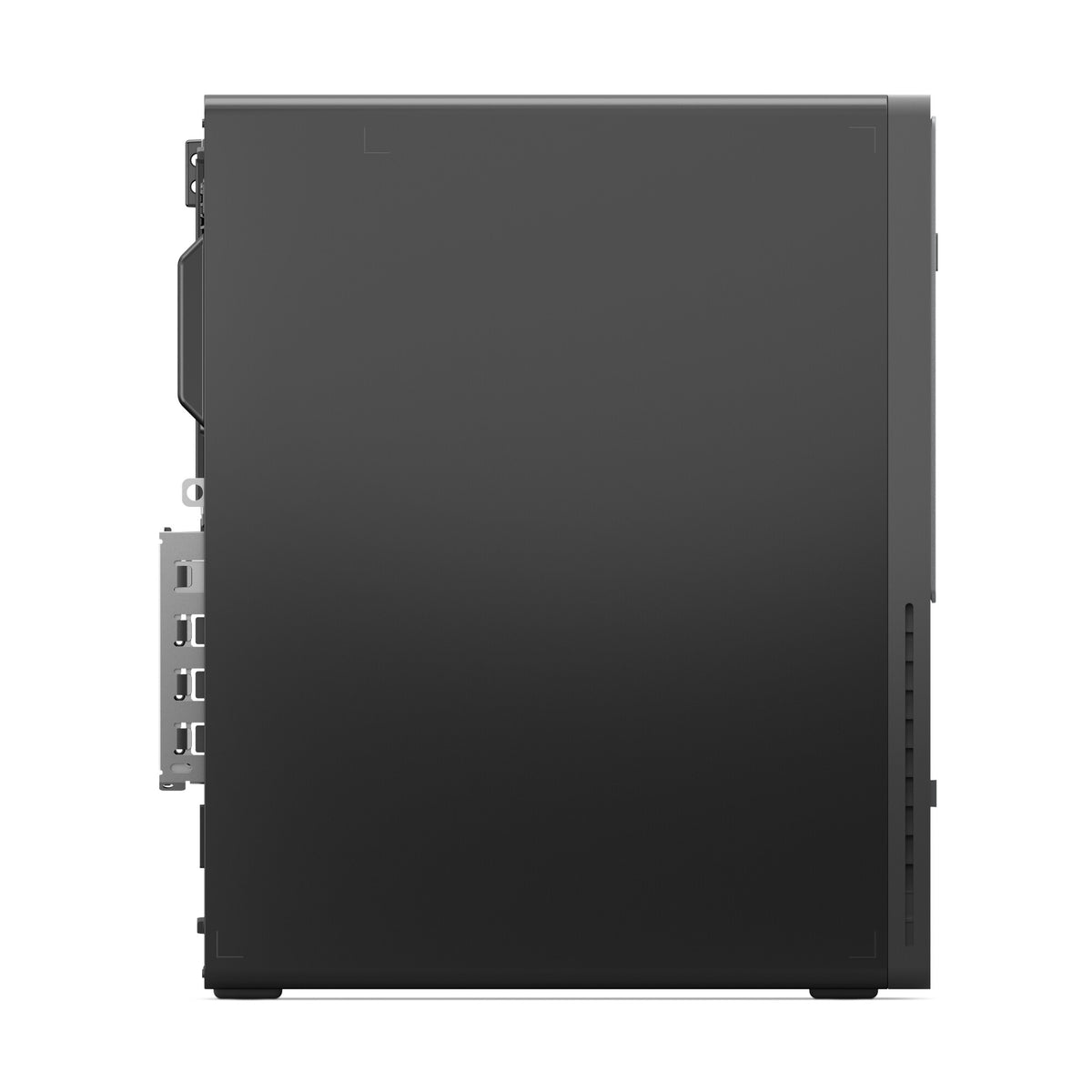

LENOVO ThinkCentre NEO 50s G5 |i7-14700|BLACK|SFF DESKTOP|16GB DDR5|512GB PCIe SSD|3yr CI|WIN11 Pro
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i7 |
| Processor model |
i7-14700 |
| Processor cores |
20 |
| Processor threads |
28 |
| Processor boost frequency |
5.3 GHz |
| Processor frequency |
2.1 GHz |
| Memory |
|---|
| Internal memory |
16 GB |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory slots |
2x DIMM |
| Memory clock speed |
5600 MHz |
| Storage |
|---|
| Total storage capacity |
512 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Total SSDs capacity |
512 GB |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Card reader integrated |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| Antenna type |
2x2 |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
Yes |
| Line-out |
Yes |
| Combo headphone/mic port |
Yes |
| Design |
|---|
| Chassis type |
SFF |
| Colour name |
Chassis: Black, Bezel: Grey |
| Volume |
8.2 L |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Performance |
|---|
| Product type |
PC |
| Motherboard chipset |
Intel B760 |
| Audio chip |
Realtek ALC623-CG |
| Audio system |
High Definition Audio |
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system language |
English |
| Certificates |
|---|
| Certification |
TCO |
| Weight & dimensions |
|---|
| Width |
92.5 mm |
| Depth |
291.4 mm |
| Height |
339.5 mm |
| Weight |
4.2 kg |
| Packaging content |
|---|
| Mouse included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| General |
|---|
| Product series |
neo |
| Product family |
ThinkCentre |
| Technical details |
|---|
| Box contents |
Slim ODD Bracket Kit |
