Intel Core i3-1315U, 6C (2P + 4E)/8T, P-core 1.2/4.5GHz, E-core 0.9/3.3GHz, 10MB, 1x 8GB SO-DIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, No, Windows 11 Pro

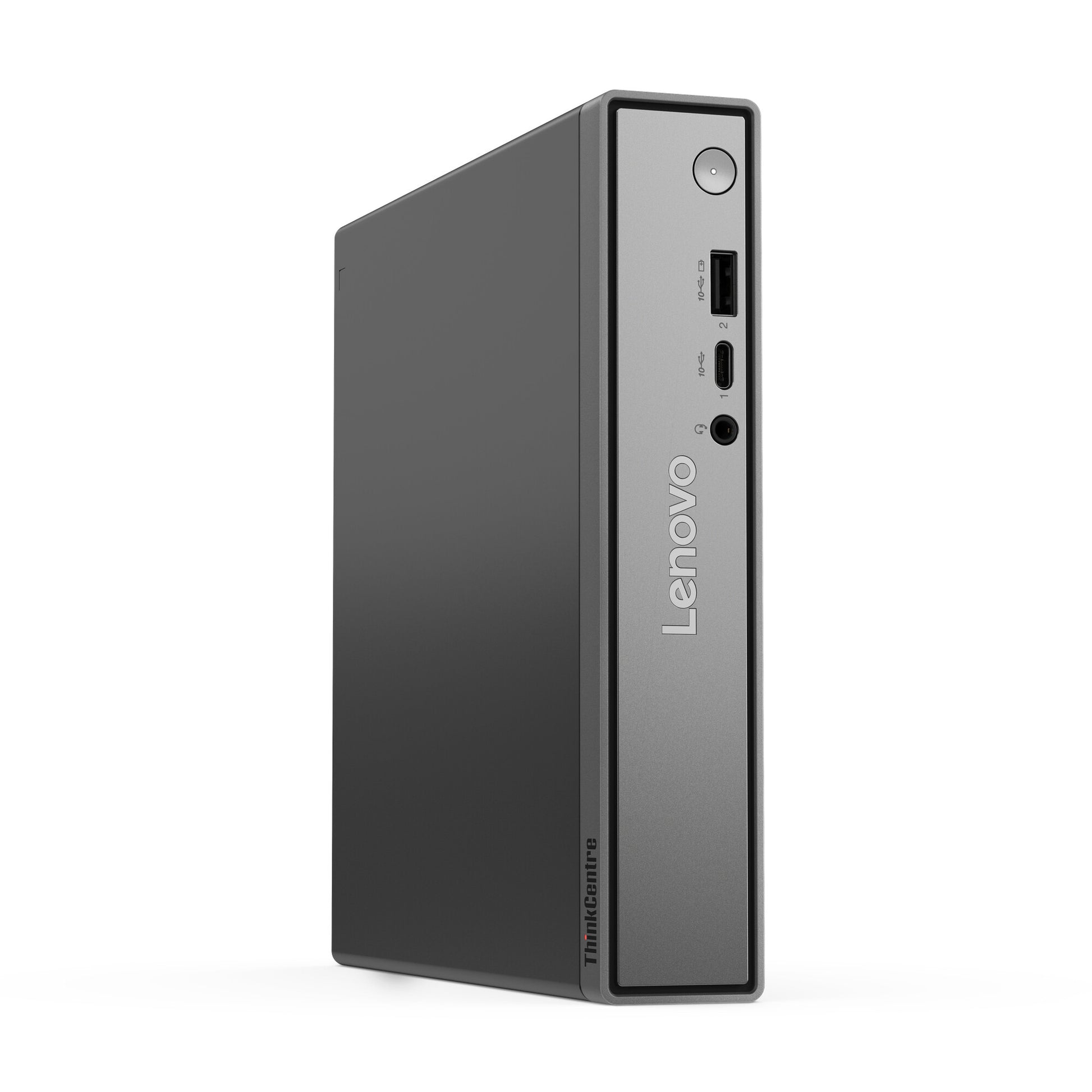

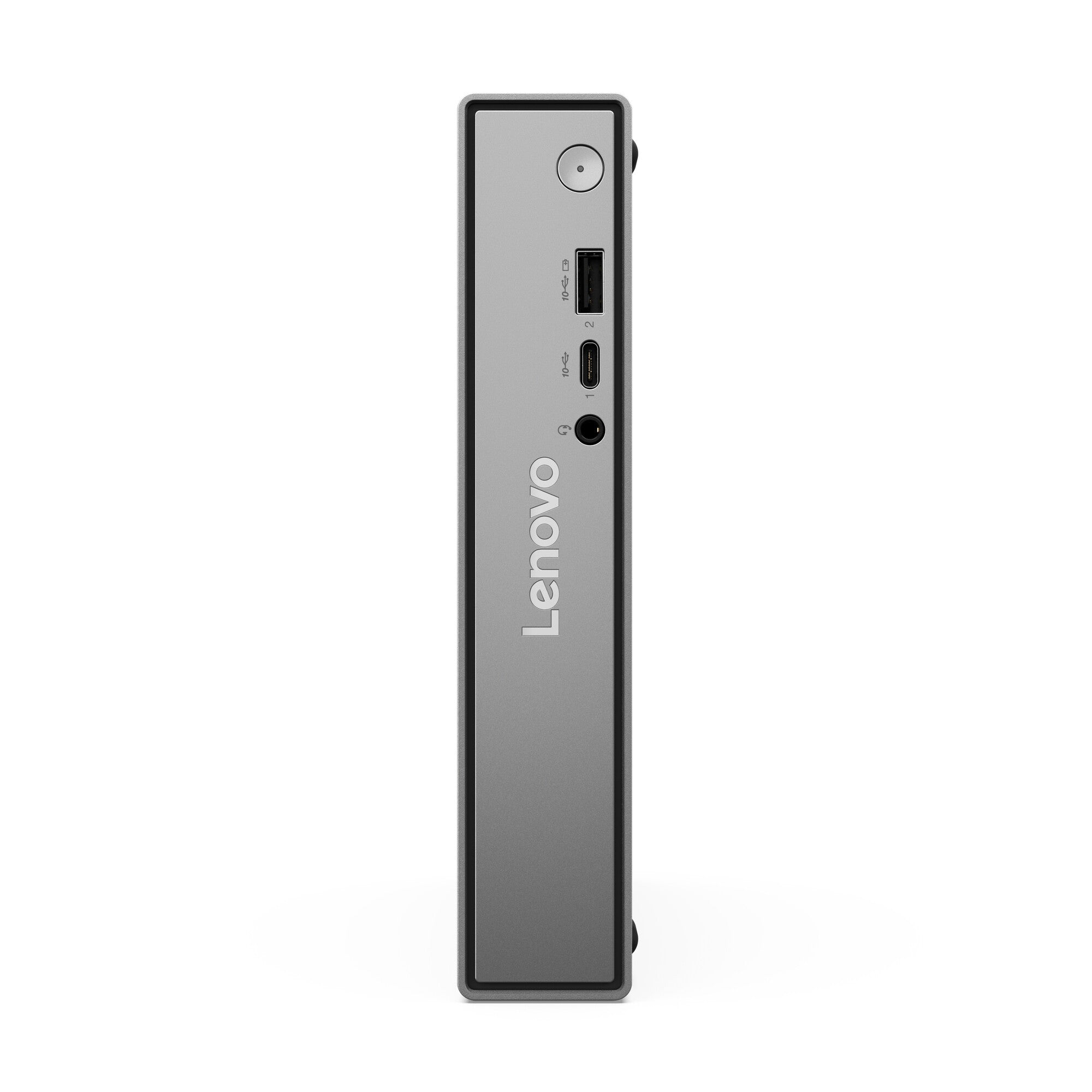

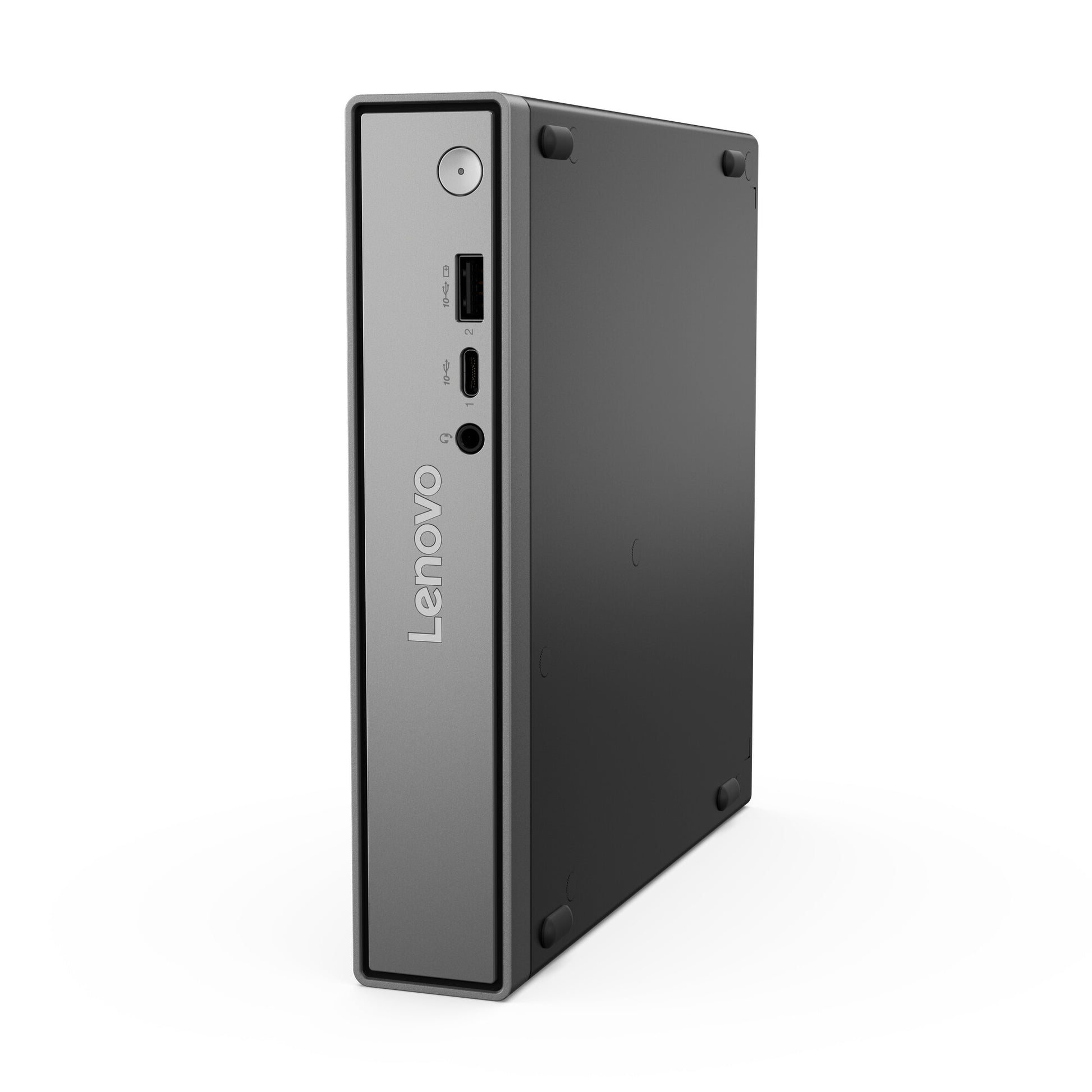

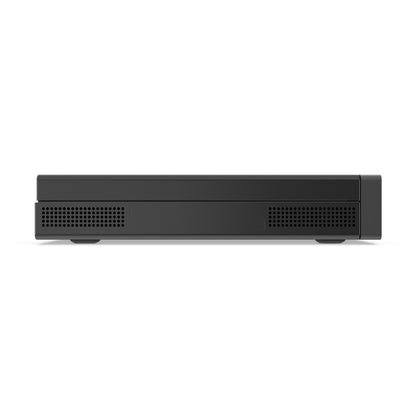

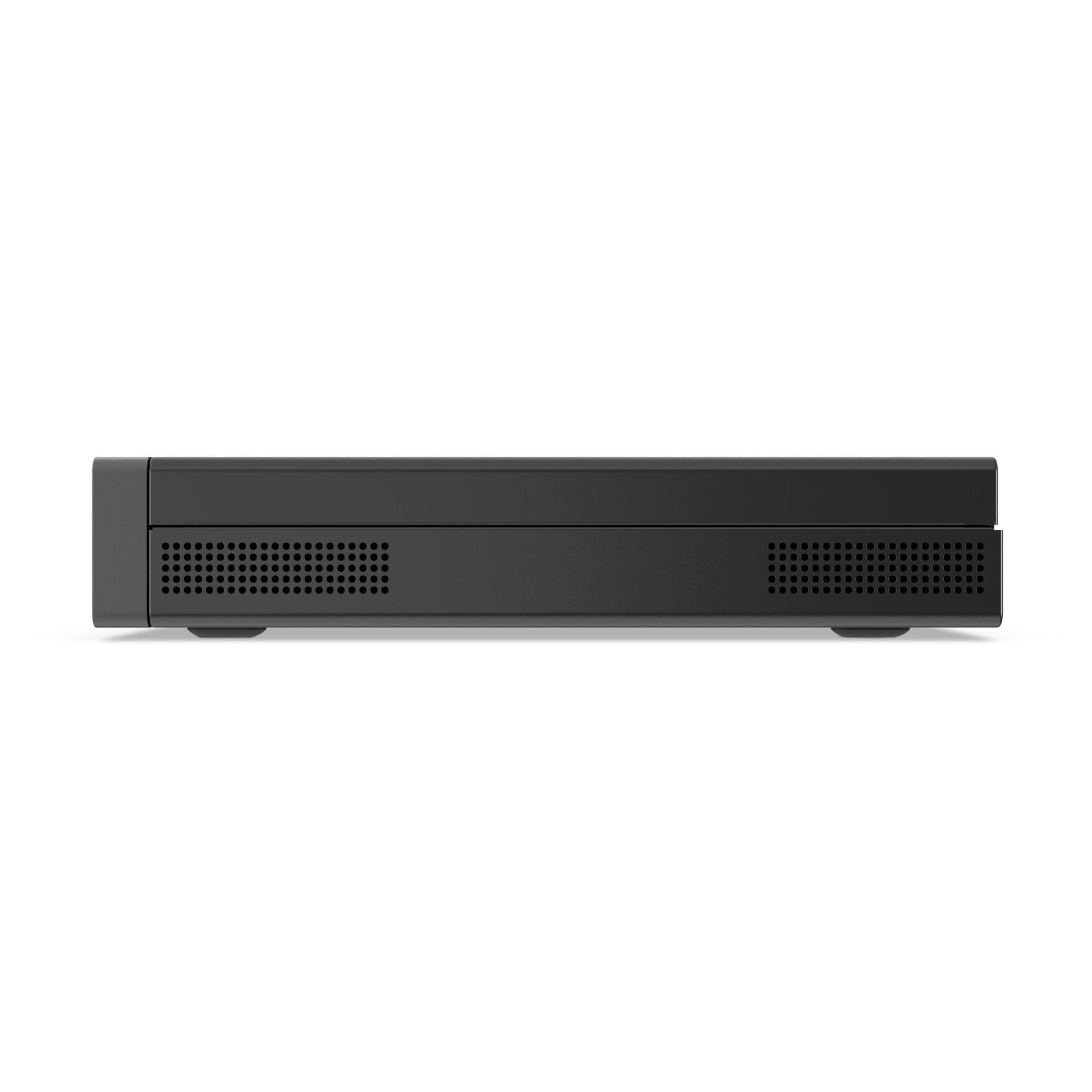

LENOVO ThinkCentre NEO 50q G5 |i3-1315U|BLACK|TINY|8GB DDR5|512GB PCIe SSD|3yr OSS|WIN11 Pro
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i3 |
| Processor model |
i3-1315U |
| Processor cores |
6 |
| Processor threads |
8 |
| Processor boost frequency |
4.5 GHz |
| Processor frequency |
1.2 GHz |
| Memory |
|---|
| Internal memory |
8 GB |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory slots |
2x SO-DIMM |
| Memory clock speed |
5600 MHz |
| Storage |
|---|
| Total storage capacity |
512 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Total SSDs capacity |
512 GB |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Card reader integrated |
No |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Antenna type |
2x2 |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |

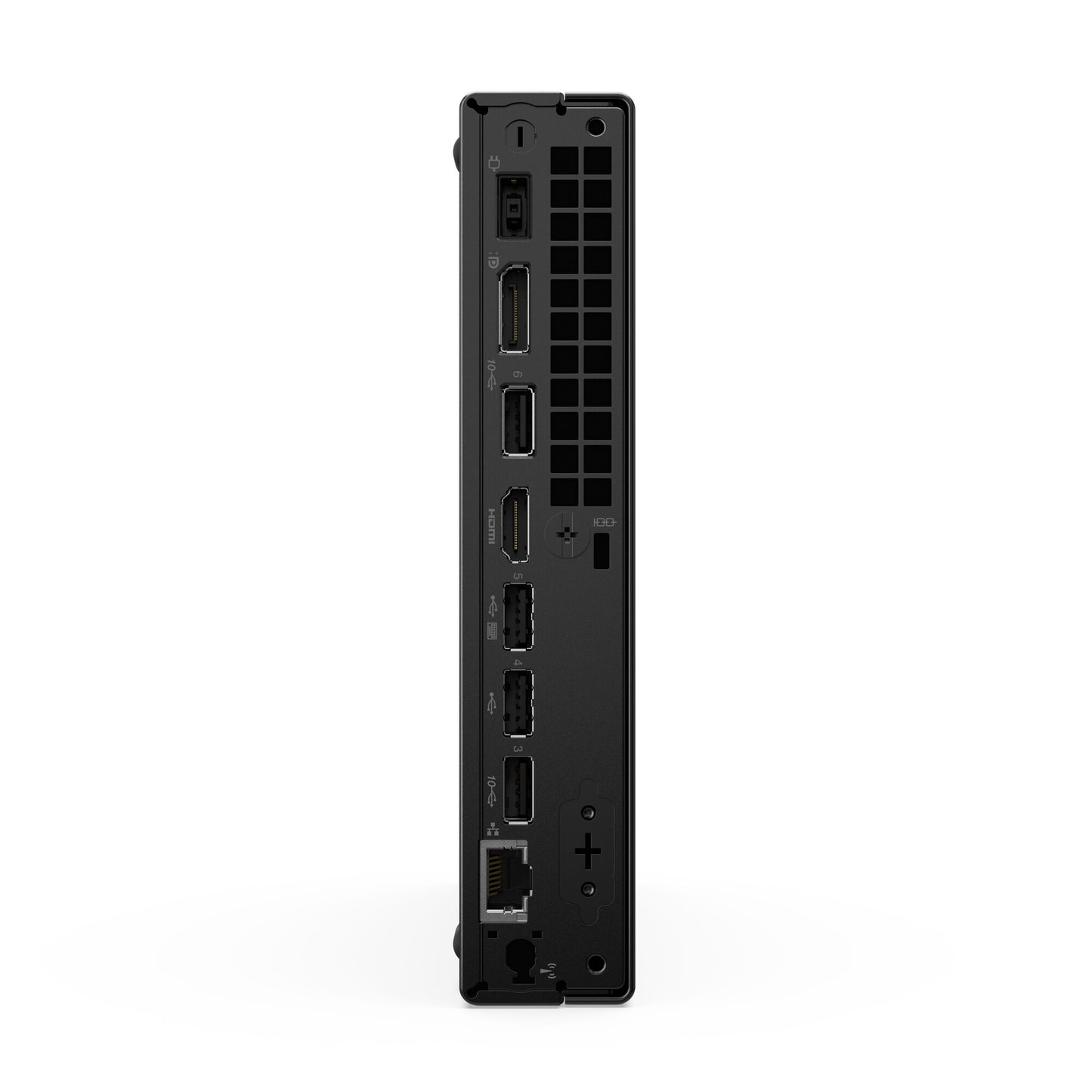

| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| Design |
|---|
| Chassis type |
Mini PC |
| Colour name |
Black |
| Volume |
1 L |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Performance |
|---|
| Product type |
Mini PC |
| Motherboard chipset |
Intel SoC |
| Audio chip |
Realtek ALC256 |
| Audio system |
High Definition Audio |
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system language |
English |
| Certificates |
|---|
| Certification |
ENERGY STAR,TCO,RoHS |
| Weight & dimensions |
|---|
| Width |
179 mm |
| Depth |
182.9 mm |
| Height |
34.5 mm |
| Weight |
1.13 kg |
| Packaging content |
|---|
| Mouse included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| General |
|---|
| Product series |
neo |
| Product family |
ThinkCentre |
