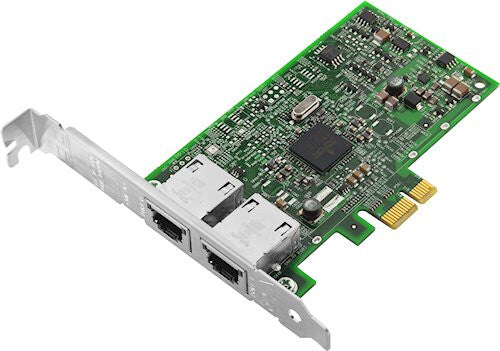

2x RJ45, 1Gb, PCIe 2.0, BCM5720
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height (low-profile) |
| PCI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| LAN controller | Broadcom BCM5720 |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9600 |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3az |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Certification | EN55022EN55024EN60950 / CEEN 61000-3-2EN 61000-3-3ICES-003, Issue-004IEC 950 CB SchemeFCC 47 CFR Part 15 Class AUL 1950CSA C22.2 950-95VCCIAS/NZSCISPR 22 / C-tickRRL for KCBSMIUL 94-/V |
| LED indicators | Yes |
| Product colour | Green |
| Internal | Yes |
| System requirements | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2008 HPC Edition, Windows 2008HPCMicrosoft Windows Server 2008 R2Microsoft Windows Server 2008, Datacenter x64 EditionMicrosoft Windows Server 2008, Enterprise x64 EditionMicrosoft Windows Server 2008, Enterprise x86 EditionMicrosoft Windows Server 2008, Standard x64 EditionMicrosoft Windows Server 2008, Standard x86 EditionMicrosoft Windows Server 2008, Web x64 EditionMicrosoft Windows Server 2008, Web x86 EditionMicrosoft Windows Server 2012Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Microsoft Windows Small Business Server 2008 Premium EditionMicrosoft Windows Small Business Server 2008 Standard EditionRed Hat Enterprise Linux 5 Server EditionRed Hat Enterprise Linux 5 Server with Xen x64 EditionRed Hat Enterprise Linux 5 Server x64 EditionRed Hat Enterprise Linux 6 Server EditionRed Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE LINUX Enterprise Server 10 for AMD64/EM64TSUSE LINUX Enterprise Server 10 for x86SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64TSUSE LINUX Enterprise Server 11 for AMD64/EM64TSUSE LINUX Enterprise Server 11 for x86SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64TSUSE LINUX Enterprise Server 12VMware ESX 4.1VMware ESXi 4.1VMware vSphere 5.0 (ESXi)VMware vSphere 5.1 (ESXiVMware vSphere 5.5 (ESXi)VMware vSphere 6.0 (ESXi) |
| Weight & dimensions | |
|---|---|
| Height | 69 mm |
| Depth | 19 mm |
| Width | 109 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Flow control support | Yes |
