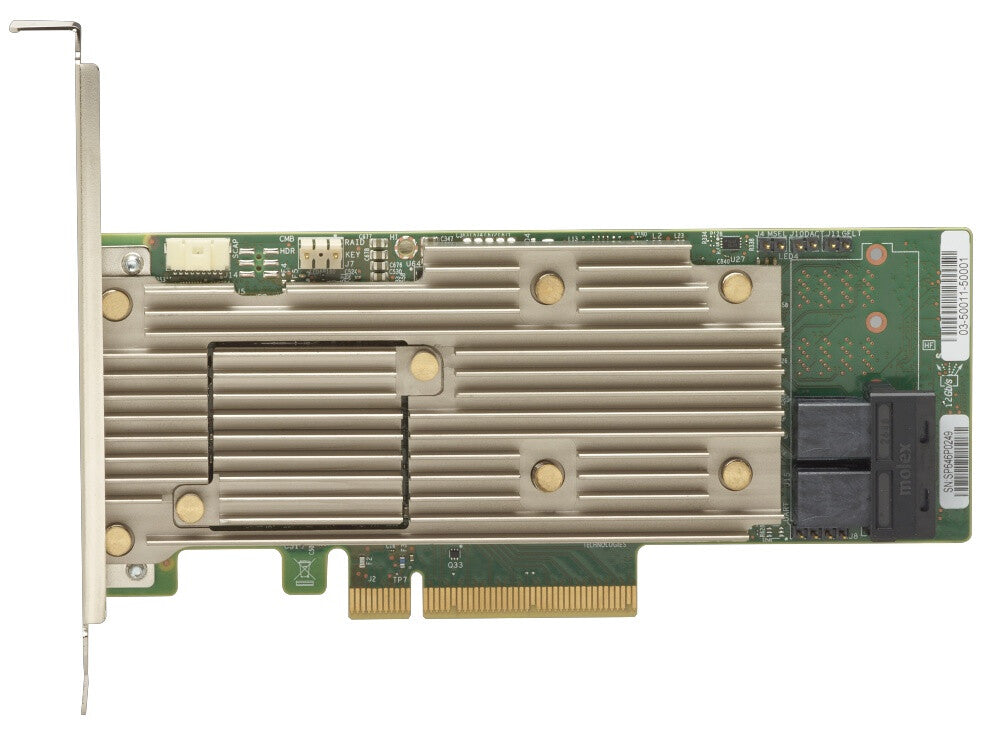

RAID 930-8i, PCIe 3.0 x8, 8x 12 Gb SAS, 2x Mini-SAS HD x4
The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| External SAS ports | 8 |
| Internal mini-SAS HD ports | 2 |
| PCI Express slots version | 3.0 |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | SAS, Serial ATA III |
| Performance | |
|---|---|
| Certification | FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B)WEEE |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 8 |
| Online Capacity Expansion | Yes |
| Chipset | LSI SAS3508 |
| SSD support | Yes |
| Data transfer rate | 12000 Gbit/s |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| RAID Level Migration | Yes |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016 |
| Compatible operating systems | Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7VMware vSphere ESXi 6.0VMware vSphere ESXi 6.5 |
| Linux operating systems supported | SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 55 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| PCI Card form factor | Full-height (low-profile) |
