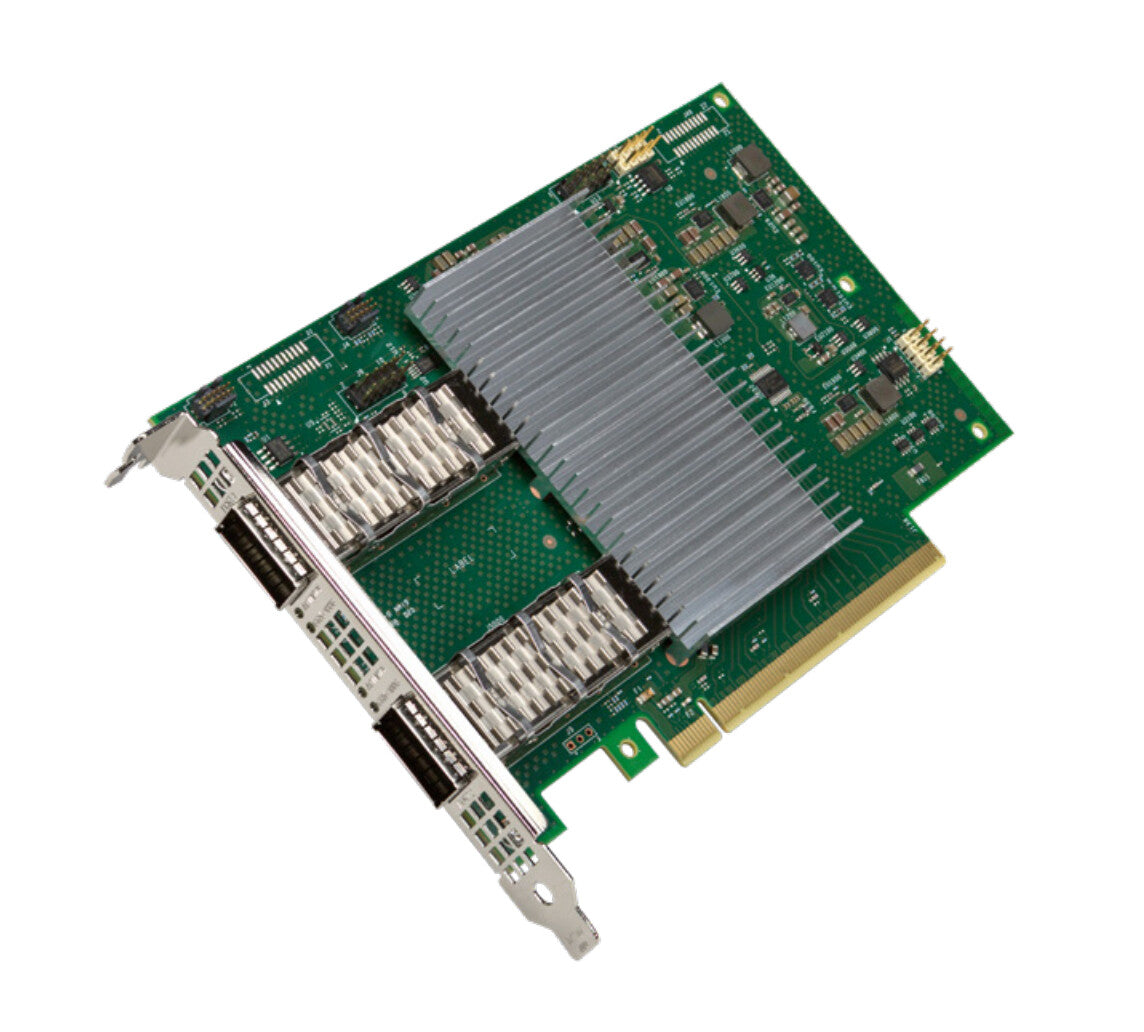

Intel Ethernet Network Adapter E8102CQDA2
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Ports & interfaces |
|---|
| PCI Card form factor |
Full-height |
| PCI version |
4.0 |
| Fiber ports quantity |
2 |
| Fiber optic connector |
QSFP28 |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Network |
|---|
| LAN controller |
Intel E810 |
| Networking standards |
IEEE 1588 |
| Maximum data transfer rate |
200000 Mbit/s |
| Design |
|---|
| Certification |
FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| Product colour |
Green, Grey |
| Component for |
Server |
| Internal |
Yes |
| Power |
|---|
| Power consumption (typical) |
21.8 W |
| System requirements |
|---|
| Compatible operating systems |
https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 60 °C |
| Weight & dimensions |
|---|
| Depth |
111 mm |
| Width |
167 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Storage Over Ethernet |
iSCSI, NFS |
| Launch date |
Q1'21 |
| Status |
Launched |
| On-chip QoS and Traffic Management |
Yes |
| Speed & slot width |
16.0 GT/s, x16 Lane |
| iWARP/RDMA |
Yes |
| Intel Virtualization Technology for Connectivity (VT-c) |
Yes |
| Intelligent Offloads |
Yes |
| Intel Data Direct I/O Technology |
Yes |
| Bracket height |
Full-Height (FH) |
| Processor family |
100GbE Intel Ethernet Network Adapter E810-100GbE Intel Ethernet Network Adapter E810 |
| Export Control Classification Number (ECCN) |
5A991 |
| Commodity Classification Automated Tracking System (CCATS) |
NA |
| Intel Virtual Machine Device Queues (VMDq) |
Yes |
| Intel Flexible Port Partitioning |
Yes |
| PCI-SIG* SR-IOV Capable |
Yes |
| Market segment |
Server |
| Cable type |
QSFP28 - DAC, Optics, and AOC's |
