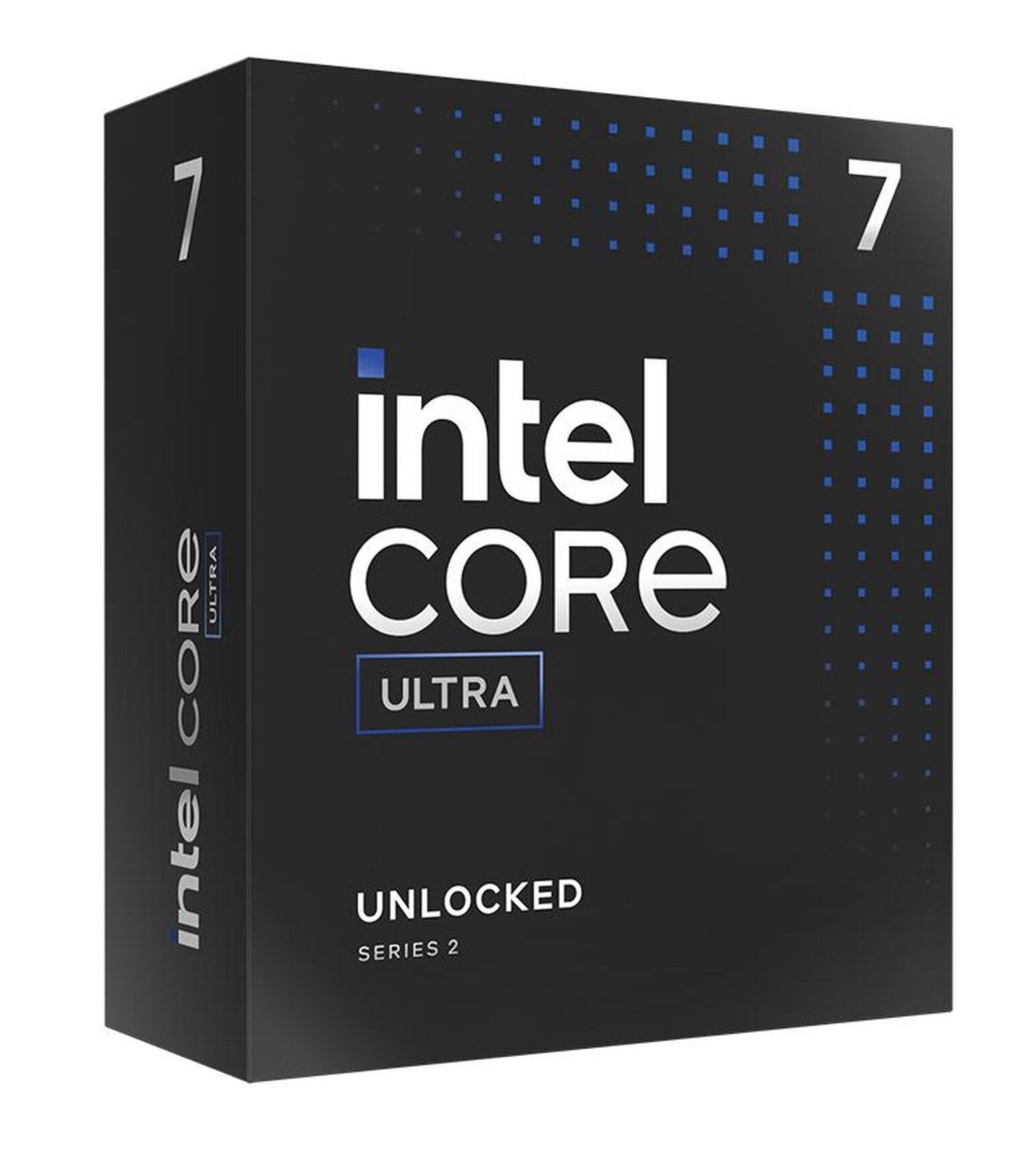

Boxed Intel Core Ultra 7 processor 265K (30M Cache, up to 5.50 GHz) FCLGA18W
Intel® Core™ Ultra 7 desktop processor 265K | Up to 5.5 GHZ | 20 cores (8 P-cores + 12 E-cores) | 20 Thread | 30MB intel Smartca
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor model |
265K |
| Processor cores |
20 |
| Processor socket |
LGA 1851 (Socket V1) |
| Cooler included |
No |
| Processor threads |
20 |
| Processor operating modes |
64-bit |
| Performance cores |
8 |
| Efficient cores |
12 |
| Processor boost frequency |
5.5 GHz |
| Performance-core boost frequency |
5.4 GHz |
| Performance-core base frequency |
3.9 GHz |
| Efficient-core boost frequency |
4.6 GHz |
| Efficient-core base frequency |
3.3 GHz |
| Processor cache |
30 MB |
| Processor cache type |
Smart Cache |
| Maximum turbo power |
250 W |
| Processor base power |
125 W |
| AI software frameworks supported by CPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Stepping |
B0 |
| Maximum number of DMI lanes |
8 |
| Processor codename |
Arrow Lake |
| Processor ARK ID |
241063 |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to |
33 TOPs |
| NPU performance up to |
13 TOPs |
| GPU performance up to |
8 TOPs |
| Memory |
|---|
| Maximum internal memory supported by processor |
192 GB |
| Memory types supported by processor |
DDR5-SDRAM |
| Memory clock speeds supported by processor |
6400 MHz |
| Memory channels |
Dual-channel |
| ECC |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel® Graphics |
| On-board graphics card outputs supported |
HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1 |
| On-board graphics card dynamic frequency (max) |
2000 MHz |
| On-board graphics card base frequency |
300 MHz |
| Number of displays supported (on-board graphics) |
4 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card refresh rate at maximum resolution (HDMI) |
60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) |
60 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) |
60 Hz |
| On-board graphics card ID |
0x7D67 |
| Discrete graphics card model |
Not available |
| Xe-cores |
4 |
| Features |
|---|
| Thermal Monitoring Technologies |
Yes |
| Idle States |
Yes |
| Execute Disable Bit |
Yes |
| Market segment |
Desktop |
| Use conditions |
Workstation, PC/Client/Tablet |
| Maximum number of PCI Express lanes |
24 |
| PCI Express slots version |
4.0, 5.0 |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Direct Media Interface (DMI) Revision |
4.0 |
| Thermal solution specification |
PCG 2020A |
| Embedded options available |
No |
| Scalability |
1S |
| Export Control Classification Number (ECCN) |
5A992C |
| Commodity Classification Automated Tracking System (CCATS) |
740.17B1 |
| Processor special features |
|---|
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Turbo Boost Max Technology 3.0 frequency |
5.5 GHz |
| Intel® Thunderbolt 4 |
Yes |
| Intel® Control-flow Enforcement Technology (CET) |
Yes |
| Intel® Thread Director |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU |
Yes |
| Intel® Remote Platform Erase (RPE) |
Yes |
| Intel® Stable IT Platform Program (SIPP) |
Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) |
Yes |
| Intel® One-Click Recovery |
Yes |
| Intel® Standard Manageability (ISM) |
Yes |
| Intel® Active Management Technology (Intel® AMT) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Boot Guard |
Yes |
| Intel® OS Guard |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel Turbo Boost Max Technology 3.0 |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel 64 |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® Hardware Shield Eligibility |
Yes |
| Intel® Threat Detection Technology (TDT) |
Yes |
| Intel vPro® Enterprise Platform Eligibility |
Yes |
| Intel® Total Memory Encryption - Multi Key |
Yes |
| General |
|---|
| Product series |
Ultra 7 |
| Product family |
Core |
| Operational conditions |
|---|
| Maximum operating temperature |
105 °C |
| Packaging data |
|---|
| Package type |
Box |
| Technical details |
|---|
| OpenCL version |
3.0 |
| Memory speed (max) |
6400 MHz |
| Status |
Launched |
| Launch date |
Q4'24 |
| Logistics data |
|---|
| Harmonized System (HS) code |
8542310050 |
| Other features |
|---|
| L2 cache |
36864 KB |
| Maximum internal memory |
192 GB |
| Graphics output |
DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
