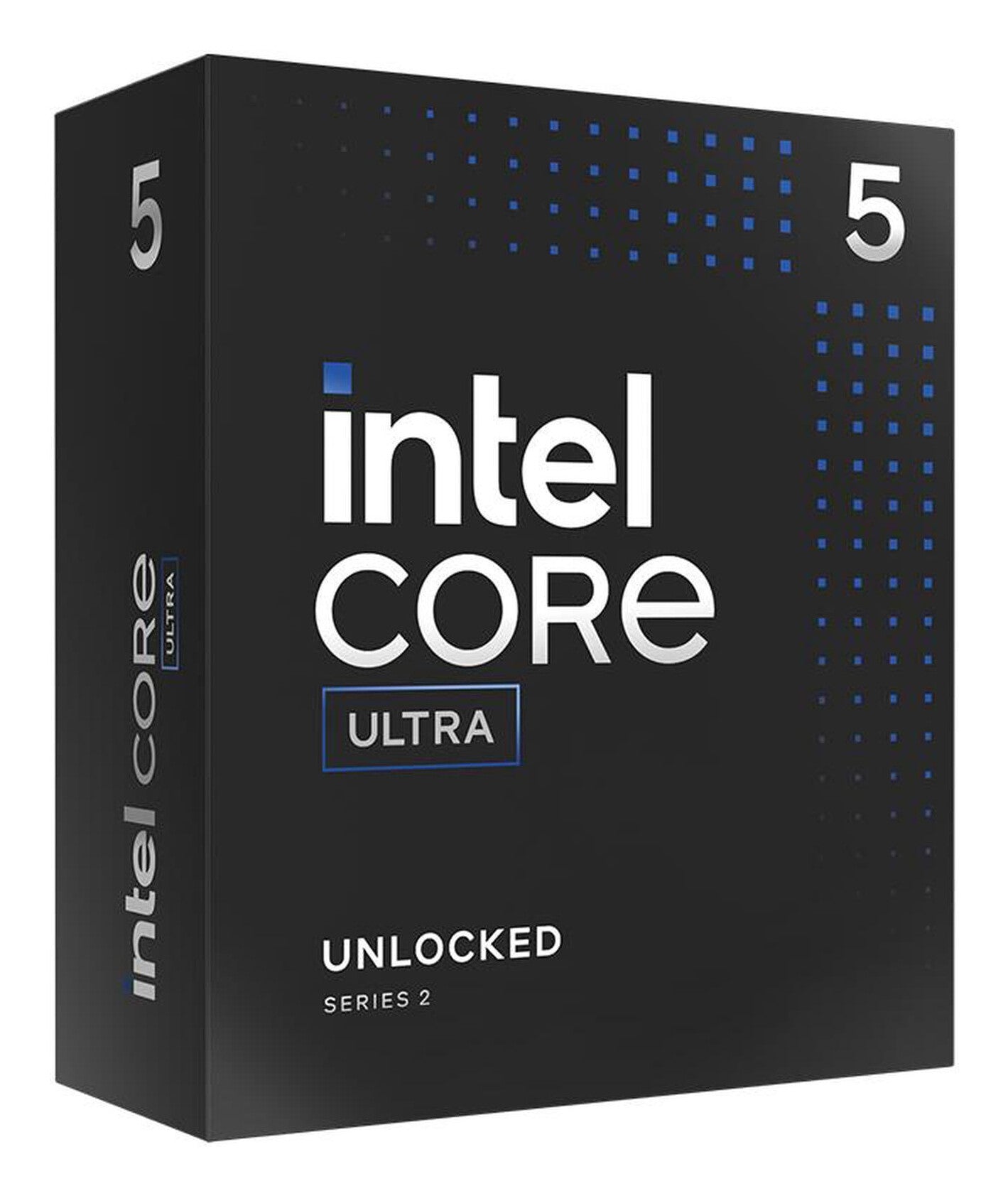

Boxed Intel Core Ultra 5 processor 245KF (24M Cache, up to 5.20 GHz) FCLGA18W
Intel® Core™ Ultra 5 desktop processor 245KF | Up to 5.2 GHZ | 14 cores (6 P-cores + 8 E-cores) | 14 Thread | 24MB intel Smartca
| Processor |
|---|
| Processor ARK ID |
241066 |
| Processor codename |
Arrow Lake |
| Maximum number of DMI lanes |
8 |
| Stepping |
B0 |
| AI software frameworks supported by CPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Processor base power |
125 W |
| Maximum turbo power |
159 W |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Efficient-core base frequency |
3.6 GHz |
| Efficient-core boost frequency |
4.6 GHz |
| Performance-core base frequency |
4.2 GHz |
| Performance-core boost frequency |
5.2 GHz |
| Processor boost frequency |
5.2 GHz |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor operating modes |
64-bit |
| Cooler included |
No |
| Processor socket |
LGA 1851 (Socket V1) |
| Processor cores |
14 |
| Processor model |
245KF |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 5 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
22 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Memory channels |
Dual-channel |
| Memory clock speeds supported by processor |
6400 MHz |
| Memory types supported by processor |
DDR5-SDRAM |
| Maximum internal memory supported by processor |
192 GB |
| Graphics |
|---|
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Not available |
| On-board graphics card |
No |
| Discrete graphics card |
No |
| Features |
|---|
| Commodity Classification Automated Tracking System (CCATS) |
740.17B1 |
| Export Control Classification Number (ECCN) |
5A992C |
| Thermal solution specification |
PCG 2020A |
| Direct Media Interface (DMI) Revision |
4.0 |
| Scalability |
1S |
| Embedded options available |
No |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| PCI Express slots version |
4.0, 5.0 |
| Maximum number of PCI Express lanes |
24 |
| Use conditions |
PC/Client/Tablet |
| Market segment |
Desktop |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor special features |
|---|
| Mode-based Execute Control (MBE) |
Yes |
| Intel® Standard Manageability (ISM) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Boot Guard |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
| Intel® Thread Director |
Yes |
| Intel® Control-flow Enforcement Technology (CET) |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Operational conditions |
|---|
| Maximum operating temperature |
105 °C |
| General |
|---|
| Product family |
Core |
| Product series |
Ultra 5 |
| Logistics data |
|---|
| Harmonized System (HS) code |
8542310050 |
| Packaging data |
|---|
| Package type |
Box |
| Technical details |
|---|
| Launch date |
Q4'24 |
| Status |
Launched |
| Memory speed (max) |
6400 MHz |
| Other features |
|---|
| Maximum internal memory |
192 GB |
| L2 cache |
26624 KB |
