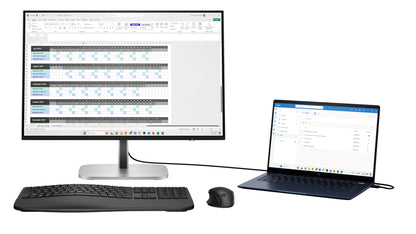

Series 5 Pro 24 inch WUXGA Monitor - 524pn
Reimagine what work looks like
Get more out of your workday with the HP Series 5 Pro 24” WUXGA Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.
| Display |
|---|
| Display diagonal |
61 cm (24") |
| Display resolution |
1920 x 1200 pixels |
| Native aspect ratio |
16:10 |
| Display technology |
LCD |
| Touchscreen |
No |
| HD type |
WUXGA |
| Panel type |
IPS |
| LED backlight |
Yes |
| Backlight type |
Edge LED |
| Display brightness (typical) |
350 cd/m² |
| Response time |
5 ms |
| Response time measurement type |
GTG (Gray to Gray) |
| Display surface |
Matt |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA) |
| Aspect ratio |
16:10 |
| Contrast ratio (typical) |
1500:1 |
| Contrast ratio (dynamic) |
10000000:1 |
| Maximum refresh rate |
100 Hz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.27 x 0.27 mm |
| Pixel density |
94 ppi |
| Horizontal scan range |
30 - 130 kHz |
| Vertical scan range |
50 - 100 Hz |
| Viewable size, horizontal |
51.8 cm |
| Viewable size, vertical |
32.4 cm |
| Display diagonal (metric) |
61 cm |
| Haze rate |
25% |
| Surface hardness |
3H |
| Colour depth |
8 bit |
| Colour gamut |
100% |
| sRGB coverage (typical) |
100% |
| Display brightness |
350 cd/m² |
| Display bezel technology |
Micro-Edge |
| Colour gamut standard |
sRGB |
| Performance |
|---|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| HP segment |
Business |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Black |
| Colour name |
Jet black |
| Feet colour |
Silver, Black |
| Country of origin |
China, Vietnam |
| Certification |
BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF |

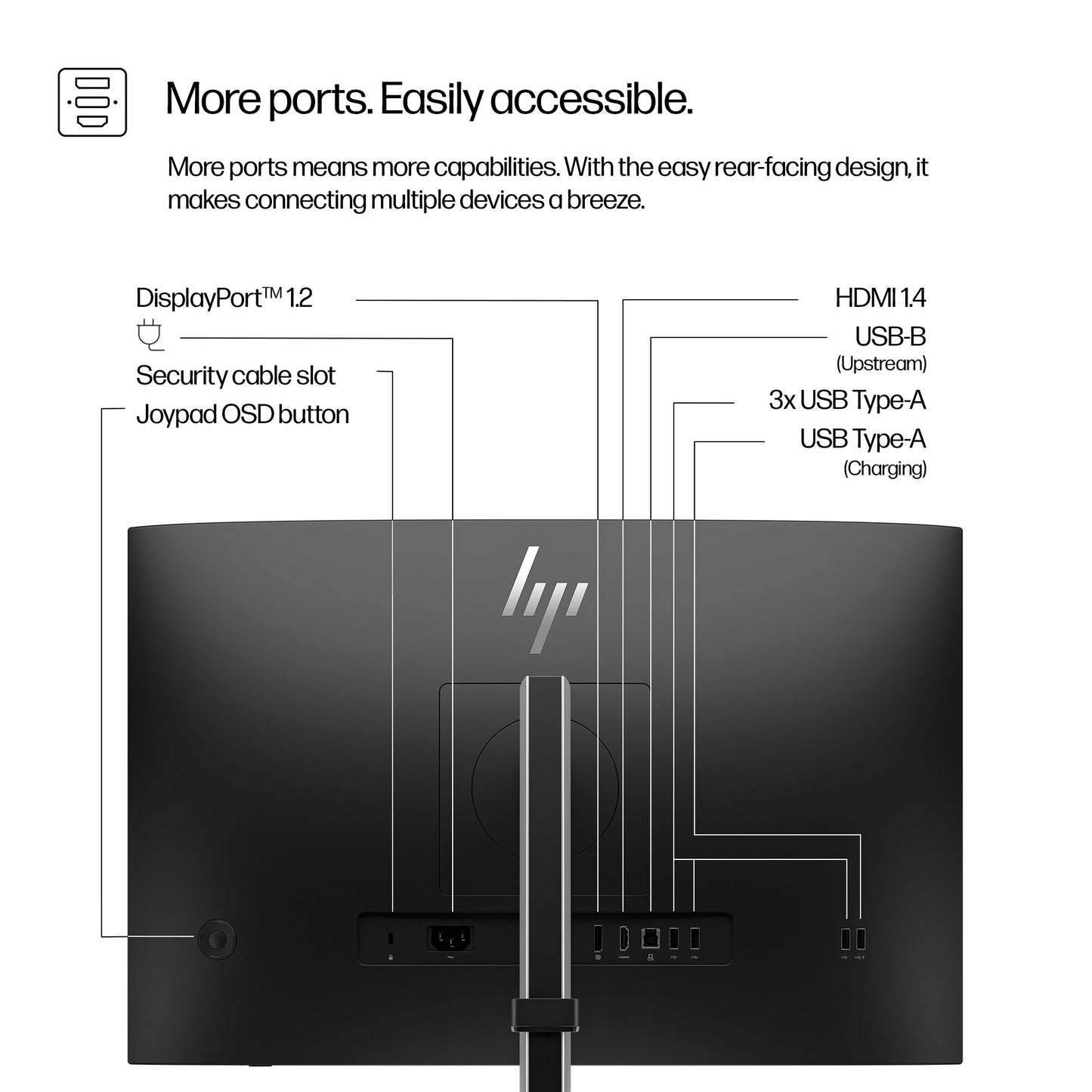

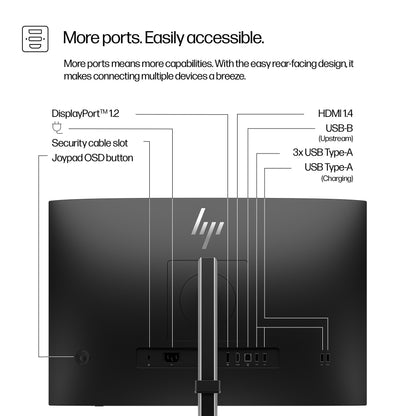

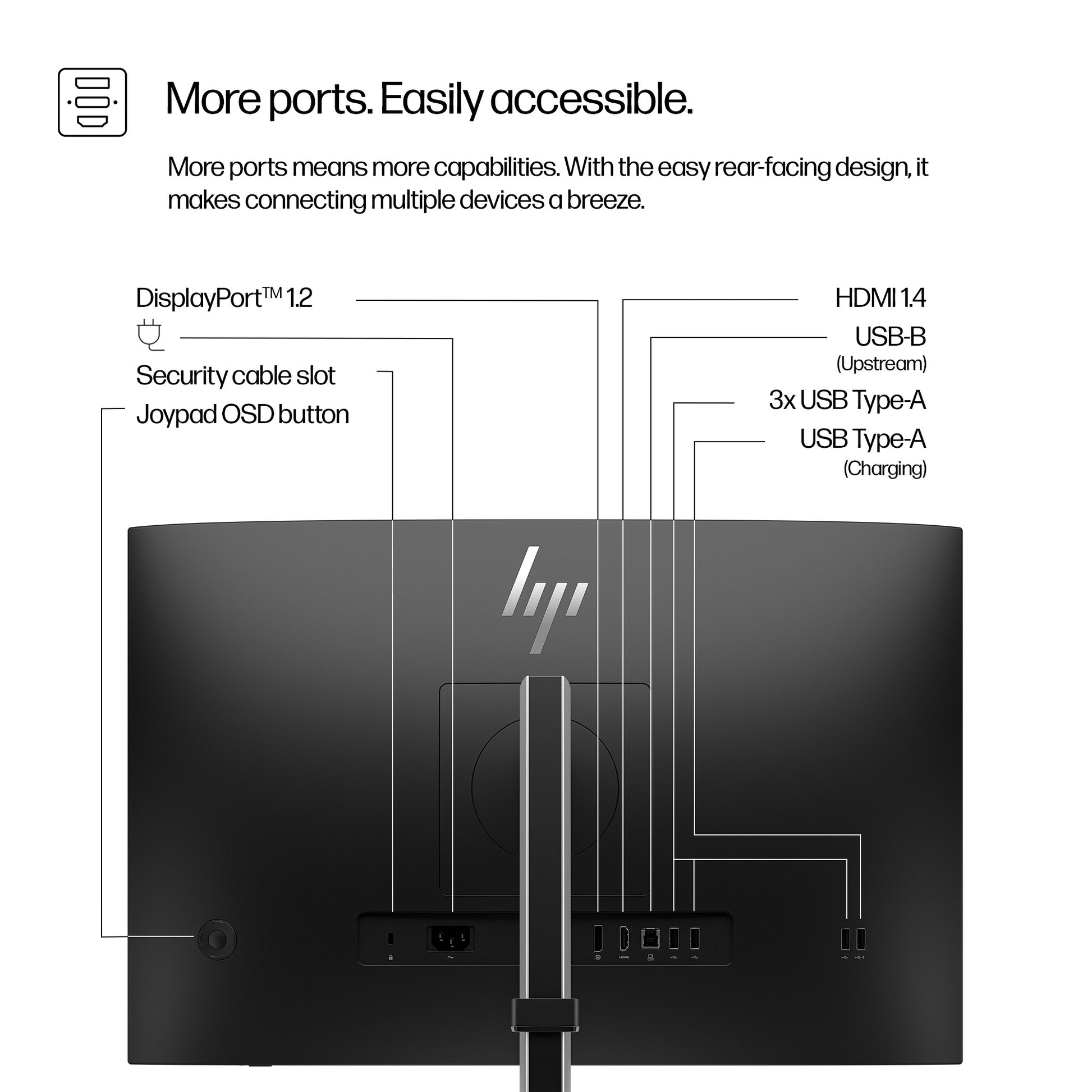

| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity |
4 |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| HDCP |
Yes |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Cable lock slot |
Yes |
| Height adjustment |
Yes |
| Adjustable height (max) |
15 cm |
| Pivot |
Yes |
| Pivot angle |
-90 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 23° |
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Energy efficiency class (SDR) |
C |
| Energy efficiency class (HDR) |
C |
| Power consumption (typical) |
22 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
58 W |
| Power consumption (off) |
0.3 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power supply type |
Internal |
| Energy efficiency scale |
A to G |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating altitude |
0 - 5000 m |
| Non-operating altitude |
0 - 12192 m |
| Packaging content |
|---|
| Cables included |
HDMI, DisplayPort, USB Type-A to USB Type-B, AC |
| Quick start guide |
Yes |
| Bundled software |
HP Display Center; HP Client Management Script Library |

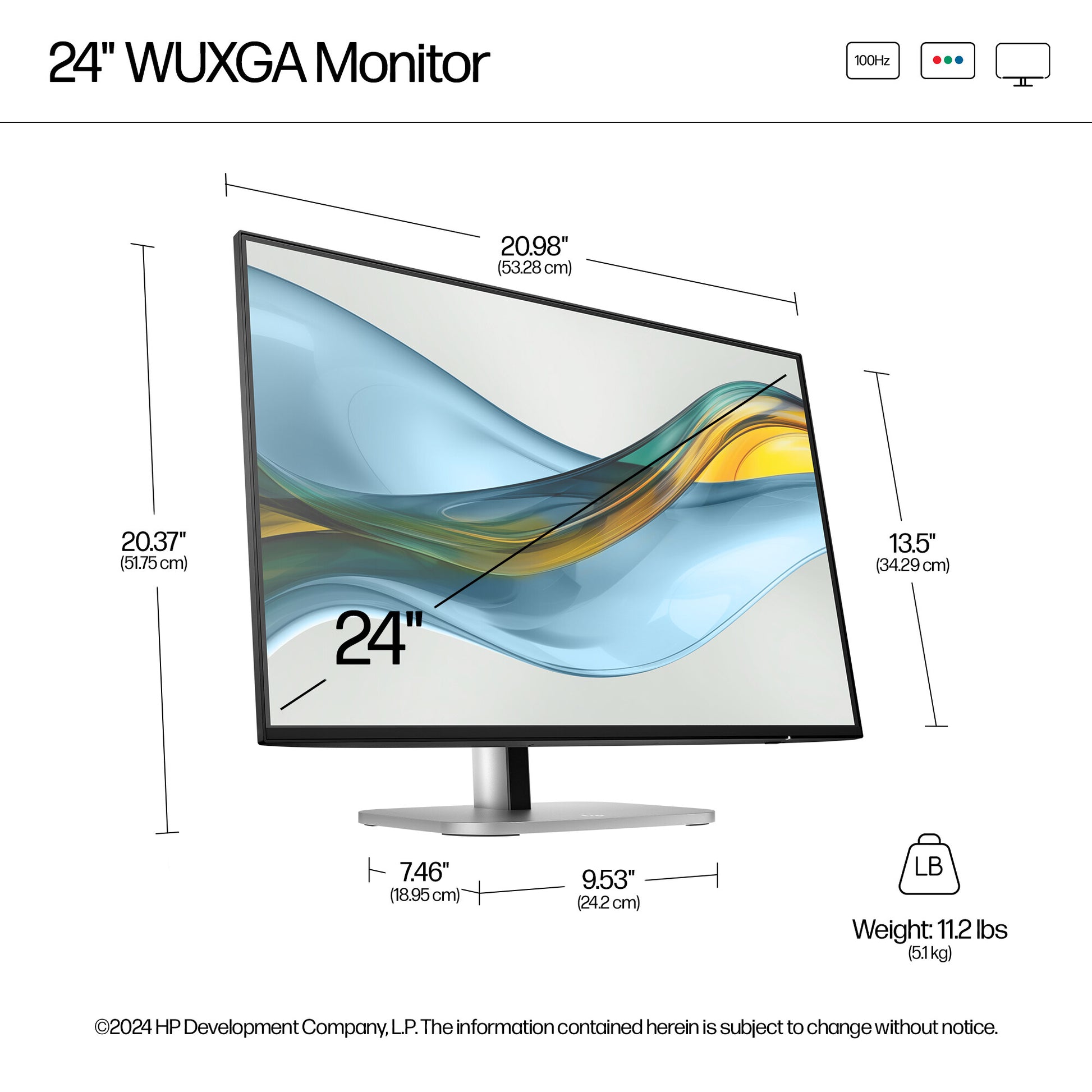

| Weight & dimensions |
|---|
| Width (with stand) |
532.8 mm |
| Depth (with stand) |
189.5 mm |
| Height (with stand) |
517.5 mm |
| Weight (with stand) |
5.1 kg |
| Width (without stand) |
532.8 mm |
| Depth (without stand) |
47 mm |
| Height (without stand) |
342.9 mm |
| Packaging data |
|---|
| Package width |
621 mm |
| Package depth |
140 mm |
| Package height |
411 mm |
| Package weight |
7.4 kg |
| Package type |
Box |
| Warranty card |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT, TCO, EPEAT Climate +, TCO10 |
| Sustainable technologies and materials |
Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 30% recycled metal including 90% recycled aluminum in the stand |
| General |
|---|
| Product family |
Series 5 |
| Carbon footprint |
|---|
| Total carbon emissions (w/o Use phase) |
34 |
| Carbon emissions (End-of-Life) |
2 |
| Carbon emissions (Logistics) |
3 |
| Carbon emissions (Manufacturing) |
153 |
| Total carbon footprint |
190 |
| Technical details |
|---|
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Compliance certificates |
CECP, GS mark, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Other features |
|---|
| Manufacturer warranty |
HP three-year limited warranty |
| Weight |
5.1 kg |
| UNSPSC-code |
43211902 |
