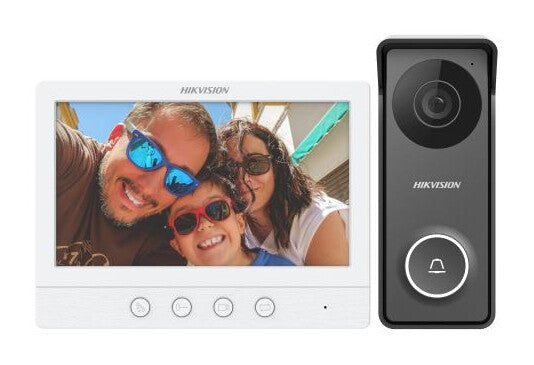

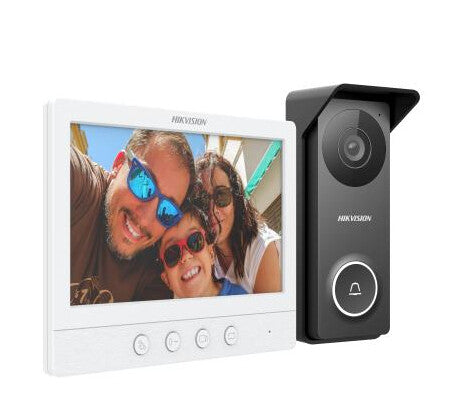

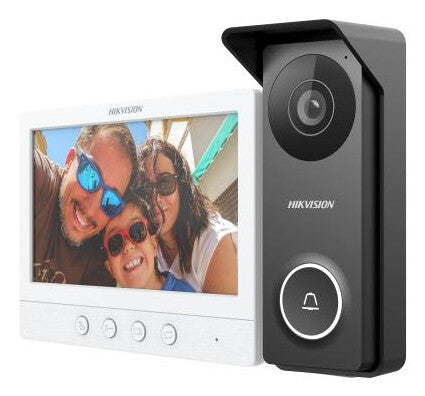

7" TFT, 1024 x 600, Mic, BNC, 12 VDC, Kit
Video intercom kit
All the products you need for a complete video intercom system are right here in these ready-to-go kits. With Hikvision, users can choose from a variety of kit options that are tailored to suit their specific scenarios and wiring needs. Whether it's residential or commercial, we have the perfect intercom kit to meet every user's unique needs.
| Technical details |
|---|
| Number of buttons |
4 buttons |
| Built-in microphone |
Yes |
| Wall mountable |
Yes |
| Streaming capability |
Yes |
| Relay inputs |
1 |
| Maximum number of cameras supported |
1 |
| Number of displays supported |
2 |
| Speakerphone |
Yes |
| Colour |
Yes |
| Connectivity technology |
Wired |
| Display |
|---|
| Display resolution |
1024 x 600 pixels |
| Display technology |
TFT |
| Display diagonal |
17.8 cm (7") |
| Night vision |
|---|
| LED type |
IR |
| Night vision distance |
3 m |
| Night vision |
Yes |
| Camera |
|---|
| Viewing angle, horizontal |
117° |
| Viewing angle, vertical |
70° |
| Maximum frame rate |
60 fps |
| Viewing angle, diagonal |
141° |
| Day/night mode |
Yes |
| Maximum video resolution |
1280 x 720 pixels |
| Audio |
|---|
| Microphone direction type |
Omnidirectional |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Control type |
Buttons |
| Outdoor unit housing material |
Metal |
| International Protection (IP) code |
IP65 |
| IK code |
IK08 |
| Product colour |
Grey, White |
| Outdoor unit |
|---|
| Power consumption (transmitter) (max) |
4 W |
| Indoor unit |
|---|
| Power consumption (receiver) (max) |
4 W |
| Power |
|---|
| Power consumption (max) |
4 W |
| AC adapter output voltage |
12 V |
| Outdoor unit power type |
DC |
| Indoor unit power type |
DC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Door station operating temperature (T-T) |
-30 - 60 °C |
| Main monitor station operating temperature (T-T) |
-10 - 55 °C |
| Weight & dimensions |
|---|
| Door station dimensions (WxDxH) |
55 x 24 x 145 mm |
| Height |
132 mm |
| Depth |
19 mm |
| Width |
178 mm |
| Packaging data |
|---|
| Outdoor unit included |
Yes |
| Indoor unit included |
Yes |
