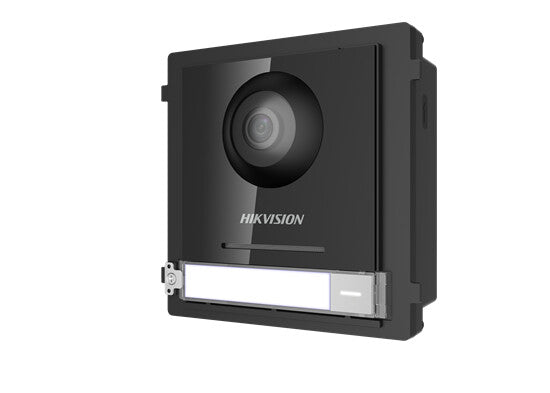

DS-KD8003-IME1, 2 MP, H.264, 1920x1080, RJ-45, PoE, IP65, 98x99.8x43.9 mm
| Technical details |
|---|
| Echo cancellation |
Yes |
| Video codecs |
H.264 |
| Number of buttons |
1 buttons |
| Built-in microphone |
Yes |
| Streaming capability |
Yes |
| Relay inputs |
2 |
| Speakerphone |
Yes |
| Colour |
Yes |
| Connectivity technology |
Wired |
| Night vision |
|---|
| LED type |
IR |
| Night vision |
Yes |
| Camera |
|---|
| Viewing angle, horizontal |
180° |
| Viewing angle, vertical |
96° |
| Supported video modes |
720p, 1080p |
| Maximum video resolution |
1920 x 1080 pixels |
| Megapixel (approx.) |
2 MP |
| Audio |
|---|
| Voice codecs |
G.711u |
| Noise-canceling |
Yes |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Network |
|---|
| Supported network protocols |
TCP/IP, RTSP |
| Networking standards |
IEEE 802.3af |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet interface type |
Fast Ethernet |
| Software |
|---|
| Operating system installed |
Linux |
| Power |
|---|
| Power consumption (typical) |
10 W |
| Outdoor unit power type |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Height |
43.9 mm |
| Depth |
98 mm |
| Width |
99.8 mm |
| Packaging data |
|---|
| Outdoor unit included |
Yes |
| Indoor unit included |
No |
