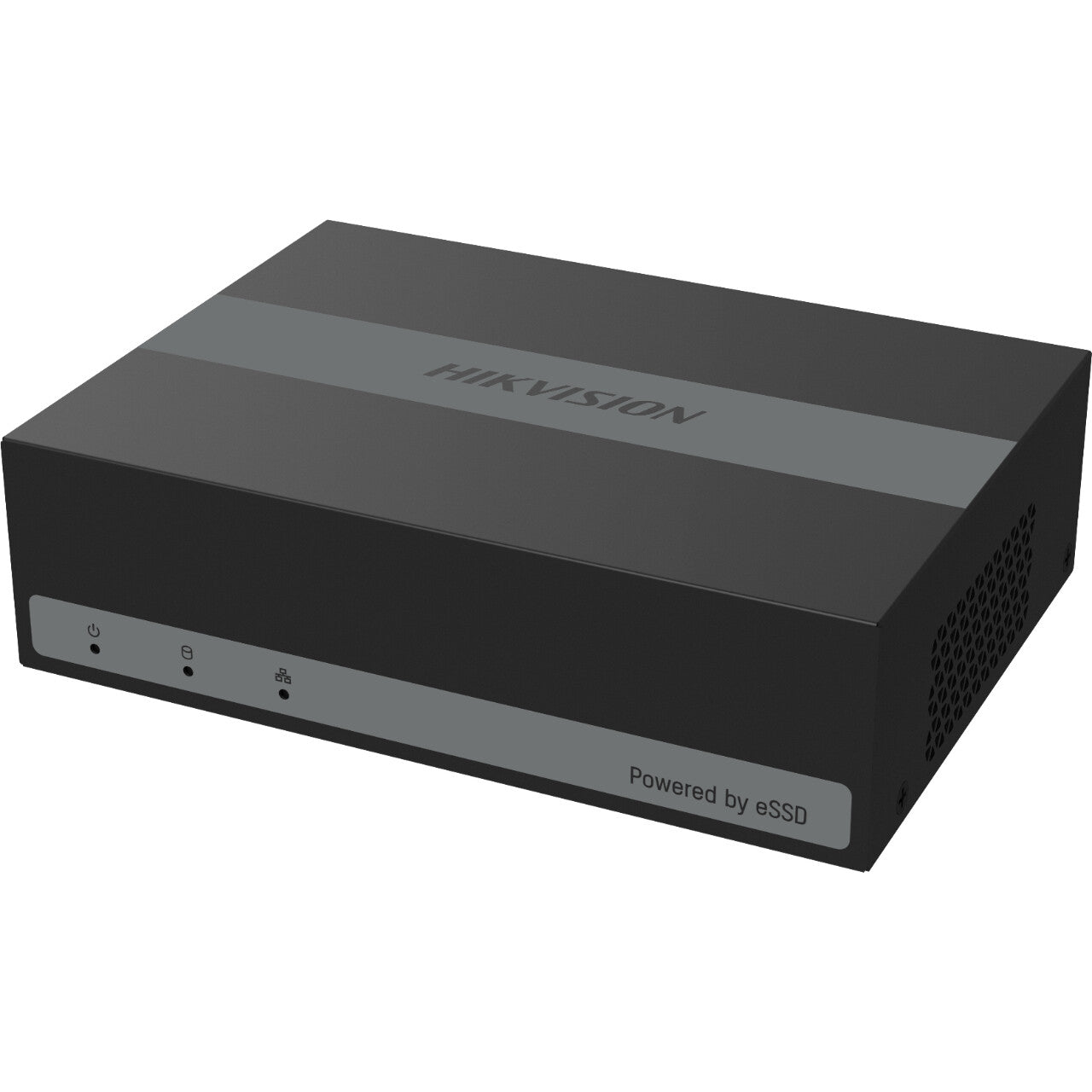

4-ch 1080p Lite 1U H.265 eSSD DVR, HDMI, VGA, Coaxial, RJ45, 2x USB 2.0, 12 VDC, 1 A, 0.5 kg
Built-In SSD
- Minimalist eSSD design brings low power consumption
- Integrated storage design provides the plug-and-play device use
Easy Installation
- Mini size design saves installation space
- Anti-vibration design and light weight satisfy more installation conditions
Compression and Recording
- Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the actual scene
- Full channel recording at up to 2 MP Lite resolution
Smart Function
- Deep learning-based motion detection 2.0
- Smart search for efficient playback
| Performance |
|---|
| Rack capacity |
1U |
| Product colour |
Black |
| Playback resolutions supported |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Channels quantity |
4 channels |
| LED indicators |
Yes |
| Audio input channels |
4.0 channels |
| Audio output channels |
1.0 channels |
| Video streaming |
Yes |
| Audio streaming |
Yes |
| Dual stream support |
Yes |
| Bit rate |
64 Kbit/s |
| Number of simultaneously playbacked channels |
4 channels |
| Video motion detection |
Yes |
| Video capturing speed |
30 fps |
| Internal |
No |
| Video compression formats |
H.265, H.265+ |
| Audio formats supported |
G.711 μ-law |
| Maximum video resolution |
1920 x 1080 pixels |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| HDMI ports quantity |
1 |
| BNC input ports |
4 |
| Video input channels |
1 channels |
| Network |
|---|
| Supported network protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Hard drive |
|---|
| Media types supported |
SSD |
| Power |
|---|
| Power consumption (typical) |
5.4 W |
| DC voltage |
12 V |
| Power supply type |
DC |
| Weight & dimensions |
|---|
| Weight |
500 g |
| Height |
46 mm |
| Depth |
121 mm |
| Width |
151 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Display |
|---|
| Built-in display |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| Storage |
330 GB eSSD |
