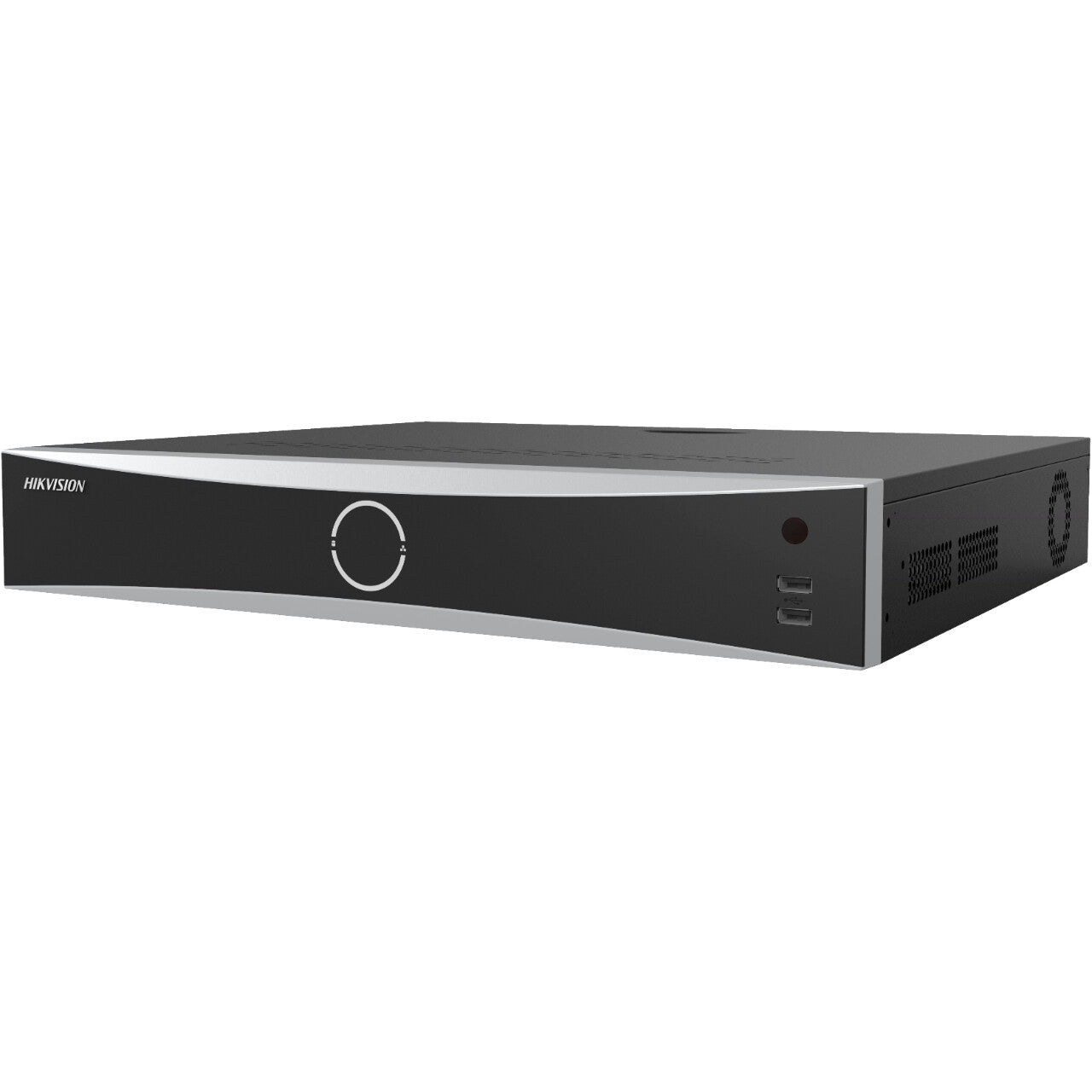

Hikvision DS-7732NXI-I4/16P/S network video recorder 1U Black
R 14,284.53
Regular price
R 14,284.53
Sale price
R 14,284.53
Regular price
Unit price
per
Shipping calculated at checkout.
Incl VAT
Couldn't load pickup availability
Want next day delivery? Be quick!
111 in stock
32-ch 1U 16 POE AcuSense 4K NVR, 32-ch, 256/256 Mbps, HDMI, VGA, RCA, RJ-45, PoE, eSATA, PoE, 4x SATA
| Performance | |
|---|---|
| Audio system | 2-way |
| Face detection | Yes |
| Display modes | Live view, Playback |
| Maximum frame rate | 30 fps |
| Input bandwidth | 256 Mbit/s |
| Output bandwidth | 256 Mbit/s |
| Analog signal format system | NTSC, PAL |
| Video formats supported | H.264, H.264+, H.265, H.265+, MPEG4 |
| Audio formats supported | AAC, G.711 A-law, G.711 μ-law, G.722, G.726 |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 76812 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Alarm output channels | 4 |
| Alarm input channels | 16 |
| Video input channels | 32 channels |
| Wireless LAN features | |
|---|---|
| Wi-Fi | No |
| Hard drive | |
|---|---|
| HDD interface | SATA, SATA II, SATA III |
| Maximum storage capacity | 40 TB |
| Number of HDDs supported | 4 |
| HDD capacity | 10 TB |
| Ports & interfaces | |
|---|---|
| Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| RS-485 ports | 1 |
| RS-232 interface | Yes |
| eSATA | Yes |
| eSATA ports quantity | 1 |
| Audio RCA outputs | 1 |
| Audio RCA inputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 2 |
| BNC video output | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 17 |
| Features | |
|---|---|
| Certification | FCC 15 B, ANSI C63.4-2014CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Product colour | Black |
| On/off switch | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Total Power over Ethernet (PoE) budget | 200 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 30 W |
| Power consumption (max) | 360 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 7 kg |
| Height | 75 mm |
| Depth | 400 mm |
| Width | 445 mm |
