20 Gbps, 14.88 Mpps, 6x 1G RJ-45 PoE, 2x 1GHi-PoE RJ-45, 2x 1G SFP, 197x114.2x42.2 mm

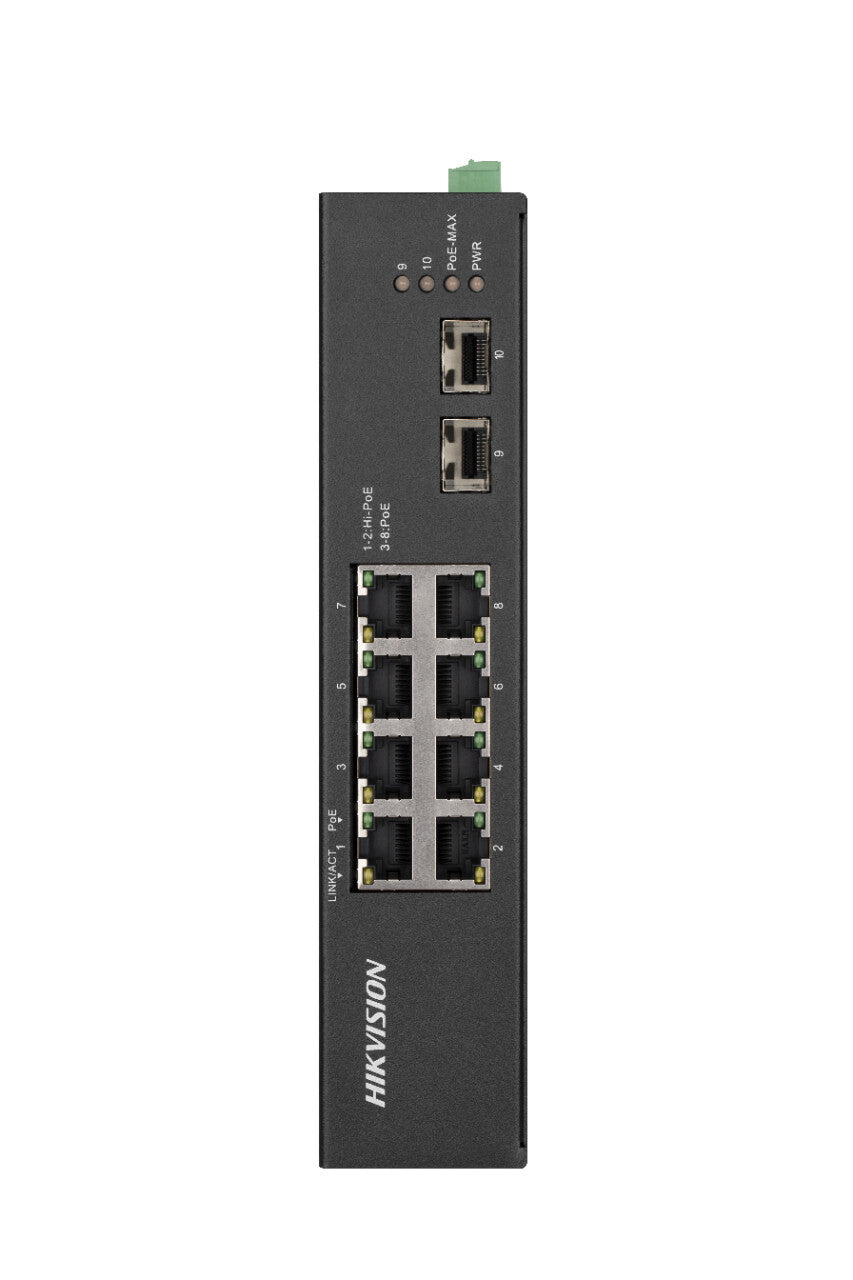

DS-3T0510HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Fiber optic connector |
SFP |
| Fiber ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Full duplex |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
|---|
| Store-and-forward |
Yes |
| Forwarding rate |
14.88 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
4000 entries |
| Design |
|---|
| Certification |
FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006) |
| Housing material |
Metal |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Power |
|---|
| Power consumption (max) |
120 W |
| Input current |
2.5 A |
| DC input voltage |
48 - 57 V |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
110 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-30 - 65 °C |
| Weight & dimensions |
|---|
| Weight |
585 g |
| Height |
114.2 mm |
| Depth |
42.2 mm |
| Width |
197 mm |
| Packaging data |
|---|
| Package weight |
1.11 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
