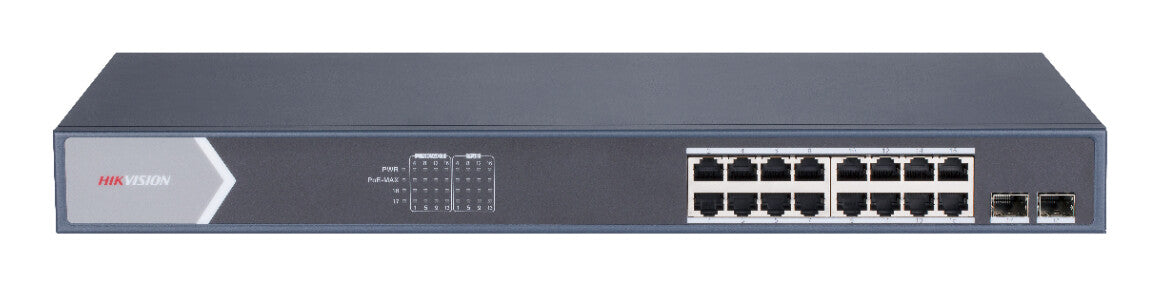

56 Gbps, 41.66 Mpps, 16x 1G PoE RJ-45, 2x SFP, 440x220.8x44 mm
| Management features |
|---|
| System event log |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
|---|
| Number of VLANs |
4094 |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| Rate limiting |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
|---|
| Packet buffer memory |
4.1 MB |
| Store-and-forward |
Yes |
| Forwarding rate |
41.66 Mpps |
| Switching capacity |
56 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| Security algorithms |
SNMP, SNMPv2 |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Housing material |
Metal |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
250 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
225 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
2.73 kg |
| Height |
44 mm |
| Depth |
220.8 mm |
| Width |
440 mm |
