10 Gbps, 7.44 Mpps, 3x 1G RJ-45 PoE, 1x 1G Hi-PoE, 121x88.1x27.6 mm

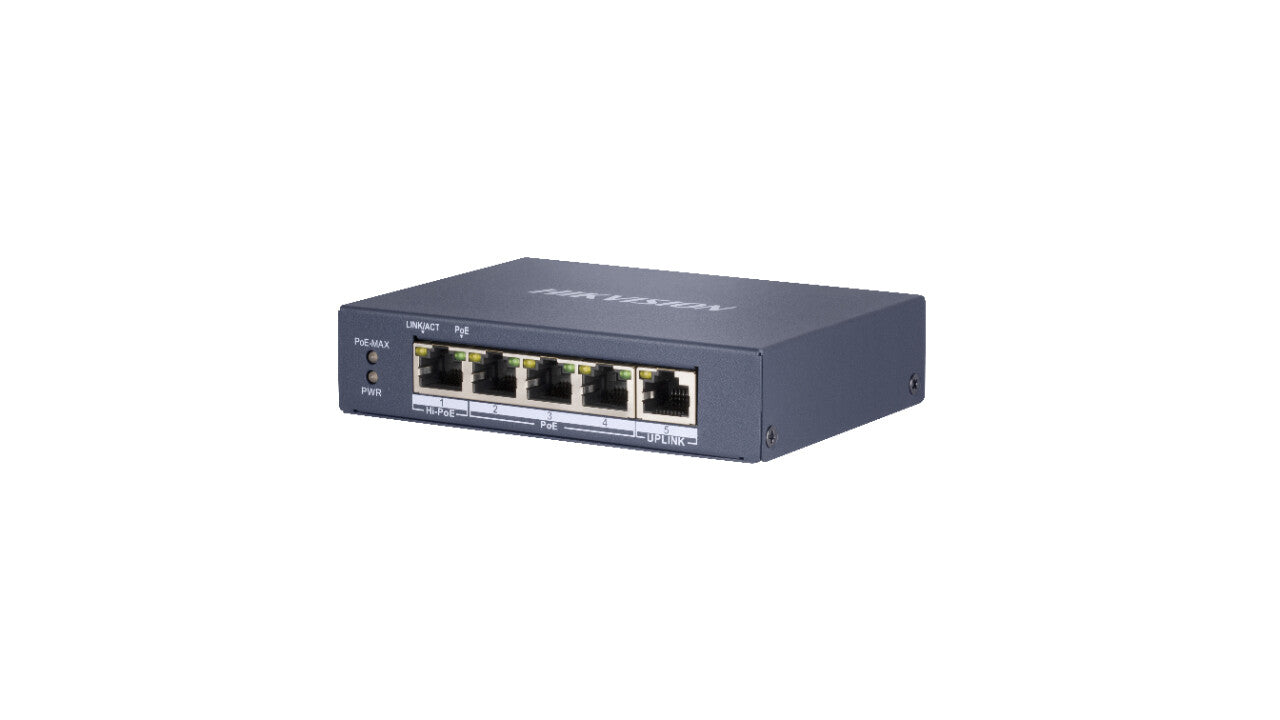

DS-3E0505HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.44 Mpps |
| Store-and-forward |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Blue |
| Housing material |
Metal |
| Certification |
FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006) |
| Power |
|---|
| DC input voltage |
48 V |
| Input current |
1.35 A |
| Power consumption (max) |
65 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
3 |
| Total Power over Ethernet (PoE) budget |
60 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 55 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
121 mm |
| Depth |
88.1 mm |
| Height |
27.6 mm |
| Weight |
270 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
