1/2.7" CMOS, 6.4mm, 2688x1520, microSD/SDHC/SDXC, RJ-45, RS-485, 12V DC, PoE, IP67, 321.3x106.1x107 mm

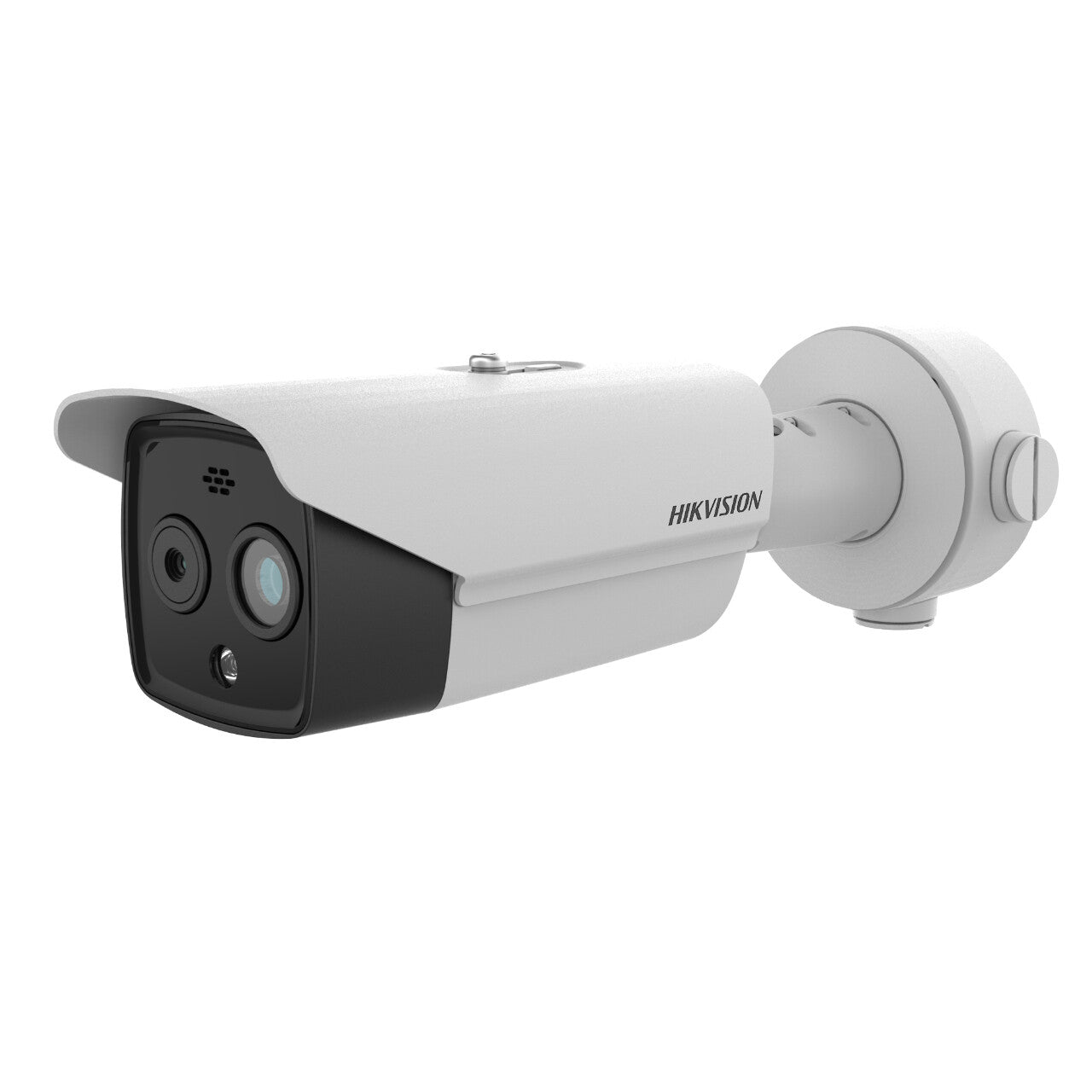

Hikvision DS-2TD2628-XX/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
| Performance |
|---|
| Number of languages |
32 |
| Thermal sensitivity (NETD) |
40 mK |
| IFOV (spatial resolution) |
1.74 mRad |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| International Protection (IP) code |
IP67 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Bullet |
| Camera |
|---|
| Camera shutter speed |
1 - 1/100000 s |
| Lens viewing angle, vertical |
28° |
| Lens viewing angle, horizontal |
53° |
| Field of view (FOV) angle (thermal module) |
24.9 x 18.7° |
| Minimum illumination |
0.0035 lx |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Effective sensor resolution (thermal module) |
256 x 192 pixels |
| Sensor type (thermal module) |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Sensor type |
CMOS |
| Lens system |
|---|
| Detect distance (wide) |
881 m |
| Recognize distance (wide) |
220 m |
| Identify distance (wide) |
110 m |
| Closest focusing distance |
1.3 m |
| Fixed focal length (thermal module) |
6.9 mm |
| Fixed focal length |
6.4 mm |
| Maximum aperture number |
1.6 |
| Digital zoom |
4x |
| Zoom capability |
Yes |
| Night vision |
|---|
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
|---|
| Gain control type |
Auto |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
352 x 288, 384 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520 |
| Video compression formats |
H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Audio |
|---|
| Voice codecs |
G.711a, G.711u, G.722.1, G.726, MP2L2, PCM |
| Network |
|---|
| Quality of Service (QoS) support |
Yes |
| Number of users |
32 user(s) |
| Supported network protocols |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,R TP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Maximum memory card size |
256 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Microphone in |
Yes |
| BNC output ports |
1 |
| RS-485 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Security algorithms |
EAP-MD5, EAP-TLS |
| Temperature sensor |
Yes |
| Management features |
|---|
| Behavior analysis |
Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Power |
|---|
| DC output current |
0.5 A |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
6.5 W |
| Power consumption (max) |
6 W |
| Power source type |
DC, PoE |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
-40 - 65 °C |
| Weight & dimensions |
|---|
| Weight |
1.55 kg |
| Height |
107 mm |
| Depth |
106.1 mm |
| Width |
321.3 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
